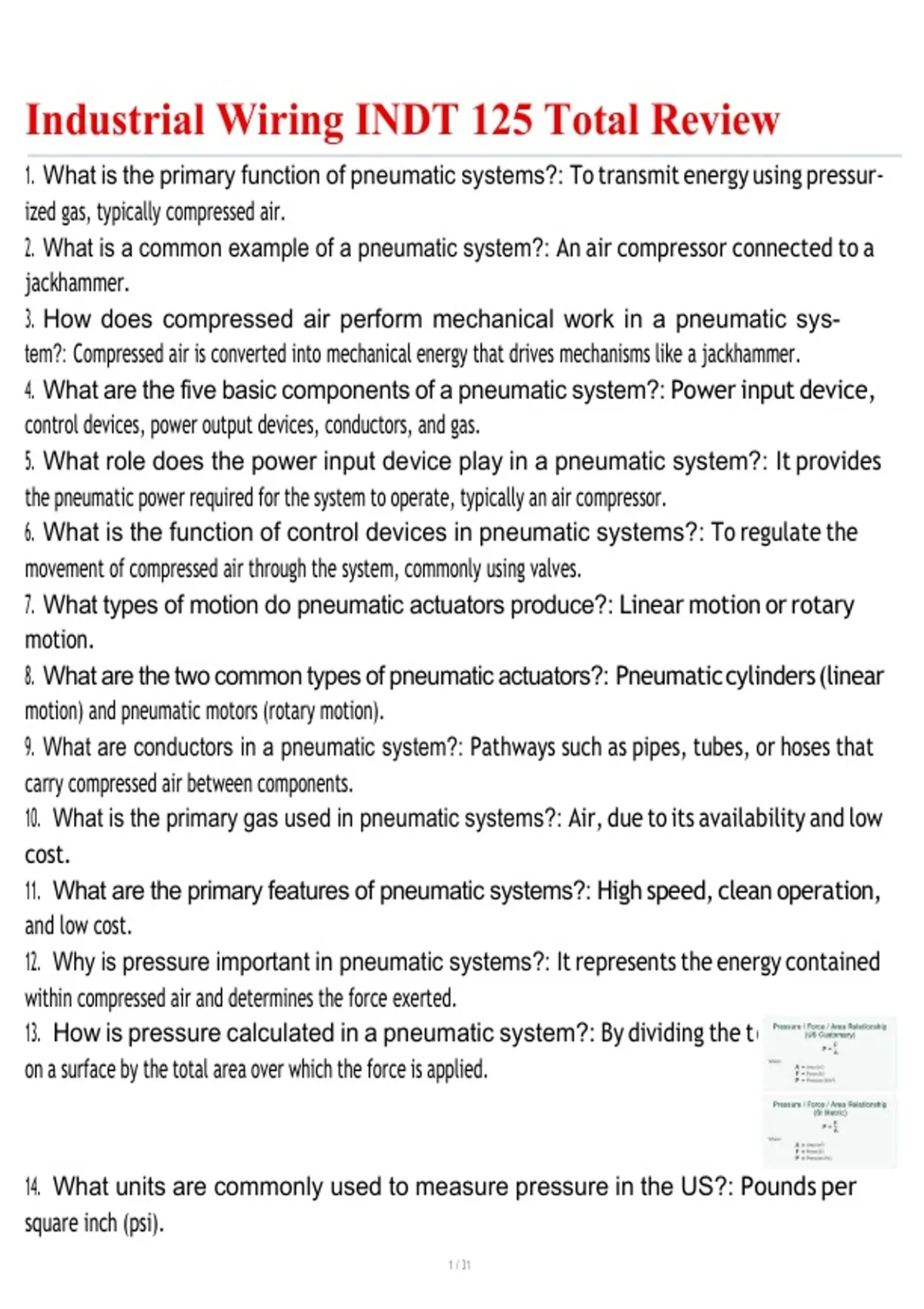

Industrial Wiring INDT 125 Total Review
1. What is the primary function of pneumatic systems?: To transmit energy using pressur-
ized gas, typically compressed air.
2. What is a common example of a pneumatic system?: An air compressor connected to a
jackhammer.
3. How does compressed air perform mechanical work in a pneumatic sys-
tem?: Compressed air is converted into mechanical energy that drives mechanisms like a jackhammer.
4. What are the five basic components of a pneumatic system?: Power input device,
control devices, power output devices, conductors, and gas.
5. What role does the power input device play in a pneumatic system?: It provides
the pneumatic power required for the system to operate, typically an air compressor.
6. What is the function of control devices in pneumatic systems?: To regulate the
movement of compressed air through the system, commonly using valves.
7. What types of motion do pneumatic actuators produce?: Linear motion or rotary
motion.
8. What are the two common types of pneumatic actuators?: Pneumatic cylinders (linear
motion) and pneumatic motors (rotary motion).
9. What are conductors in a pneumatic system?: Pathways such as pipes, tubes, or hoses that
carry compressed air between components.
10. What is the primary gas used in pneumatic systems?: Air, due to its availability and low
cost.
11. What are the primary features of pneumatic systems?: High speed, clean operation,
and low cost.
12. Why is pressure important in pneumatic systems?: It represents the energy contained
within compressed air and determines the force exerted.
13. How is pressure calculated in a pneumatic system?: By dividing the t otal force acting
on a surface by the total area over which the force is applied.
14. What units are commonly used to measure pressure in the US?: Pounds per
square inch (psi).
,15. What is the purpose of a pressure gauge in a pneumatic system?: To monitor
the pressure of compressed air at various points in the system.
16. How does a pressure gauge indicate pressure changes?: A pointer moves along a
graduated scale as pressure increases or decreases.
17. What do the two scales on a pressure gauge typically represent?: The outer scale
indicates pressure in psi, while the inner scale indicates pressure in kilopascals (kPa).
18. How should the kPa scale be interpreted on some pressure gauges?: The
number shown must be multiplied by 100 to determine the actual pressure value.
19. What industries commonly use pneumatic systems?: Manufacturing, transportation,
and construction.
20. What is a common application of pneumatic systems in manufacturing?: -
Operating automated equipment such as assembly machines and robotic devices.
21. How do pneumatic systems contribute to transportation industries?: They are
used in air brakes, suspension controls, and door mechanisms.
22. What tools in construction commonly rely on pneumatic systems?: Jackham-
mers, nail guns, and air-powered drills.
23. What makes pneumatic systems particularly valuable in clean environ-
ments?: They do not normally create contamination or fluid leaks.
24. What is the significance of rapid motion in pneumatic systems?: Compressed air
can move quickly, making them ideal for fast cycling applications.
25. What is the cost advantage of pneumatic systems?: They are generally less expensive
to install and maintain compared to other power transmission systems.
26. How do you convert the kPa reading on a gauge to actual pressure?: Multiply
the number shown by 100.
27. What is the relationship between psi and kPa?: One psi is approximately equivalent to 6.9
kPa.
28. What does the maximum value on a pressure gauge represent?: The highest
pressure the gauge is designed to measure accurately.
29. What do long and short graduations on a psi scale represent?: Long graduations
may represent increments of 20 psi, while short graduations represent smaller increments such as 2 psi.
30. What is the purpose of a pressure regulator?: To reduce and control the pressure before
it reaches the rest of the pneumatic system.
,31. What are the primary components of a pressure regulator valve?: Body, restrict-
ing element, loading element, adjustment spring, adjustment knob, and poppet spring.
32. What is the function of the body in a pressure regulator?: It houses the mechanical
components and includes the inlet port, outlet port, and vent hole.
33. What does the vent hole in a pressure regulator do?: Prevents excessive pressure
buildup inside the regulator.
34. What is the role of the restricting element in a pressure regulator?: Controls
and limits the flow of air through the valve.
35. What type of valve is commonly used as a restricting element?: Poppet valve.
36. How does the loading element function in a pressure regulator?: Applies the
force required to move and control the restricting element.
37. What is the purpose of the adjustment spring in a pressure regulator?: Allows
the operator to adjust the regulator smoothly to maintain the desired downstream pressure.
38. How does the adjustment knob affect the pressure regulator?: It changes the
compression of the adjustment spring, attecting the downstream pressure.
39. What happens when the adjustment knob is turned clockwise?: The outlet
pressure increases.
40. What is the function of the poppet spring in a pressure regulator?: Assists in
closing the poppet valve to stabilize the downstream pressure.
41. Where is a pressure regulator typically installed in a pneumatic system?: -
Between the air filter and the control valves.
42. What is the most common type of pneumatic actuator?: The pneumatic cylinder.
43. How does a pneumatic cylinder operate?: Compressed air enters the cylinder and acts on
an internal piston, producing linear mechanical motion.
44. What distinguishes a double-acting cylinder?: It has two air ports, allowing compressed
air to enter either side of the piston.
45. What happens when compressed air flows into the cap end of a double-act-
ing cylinder?: Pressure builds behind the piston, pushing it forward and extending the cylinder rod.
46. What occurs when compressed air flows into the rod end of a double-acting
cylinder?: The piston is pushed in the opposite direction, causing the cylinder rod to retract.
47. What is the role of the pilot hole in a pressure regulator?: Allows the outlet pressure
to act on the bottom of the piston head.
, 48. What is the purpose of a self-relieving pressure regulator?: To vent excess pressure
to the atmosphere when the selected downstream pressure is lower than the input pressure.
49. Why are self-relieving regulators not used with hazardous gases?: Because
venting such gases into the atmosphere creates a safety hazard.
50. How can an operator verify the correct setting of a pressure regulator?: By
connecting a pressure gauge to the regulator's port that displays the outlet pressure.
51. What is the function of the piston in a pneumatic cylinder?: It divides the cylinder
into two chambers and moves in response to compressed air.
52. What is the function of a directional control valve (DCV) in a pneumatic
system?: To control the direction of airflow and thus the movement of a pneumatic actuator.
53. What does a 5-ported, 4-way, 3-position DCV do?: It provides three functional states for
actuator control: extension, retraction, and stopping in a mid-position.
54. What are the five ports of a 5-ported, 4-way, 3-position DCV labeled as?: A,
B, P, EA, and EB.
55. What is the purpose of the valve body in a DCV?: To form the outer housing and contain
the internal flow passages.
56. What component inside a DCV shifts to connect different internal pas-
sages?: The spool.
57. What role do springs play in a DCV?: They return the spool to its neutral or center position when
the operator is released.
58. How are directional control valves represented in circuit diagrams?: Using
schematic symbols that illustrate the internal flow paths of the valve.
59. What happens when the lever of a 5-port, 3-position DCV is in the mid-po-
sition?: The spool is held in place by springs, blocking airflow and stopping the actuator.
60. What is a direct-operated pneumatic solenoid DCV?: A valve where the solenoid directly
moves the spool to control airflow.
61. What are the main components of a solenoid?: A frame, a coil, and an armature.
62. What does the armature do in a solenoid?: It moves in response to the magnetic field created
by the coil, shifting the valve spool.
63. What is the function of a manual override in a pneumatic solenoid valve?: To
allow manual shifting of the valve without electrical power.
1. What is the primary function of pneumatic systems?: To transmit energy using pressur-
ized gas, typically compressed air.
2. What is a common example of a pneumatic system?: An air compressor connected to a
jackhammer.
3. How does compressed air perform mechanical work in a pneumatic sys-
tem?: Compressed air is converted into mechanical energy that drives mechanisms like a jackhammer.
4. What are the five basic components of a pneumatic system?: Power input device,
control devices, power output devices, conductors, and gas.
5. What role does the power input device play in a pneumatic system?: It provides
the pneumatic power required for the system to operate, typically an air compressor.
6. What is the function of control devices in pneumatic systems?: To regulate the
movement of compressed air through the system, commonly using valves.
7. What types of motion do pneumatic actuators produce?: Linear motion or rotary
motion.
8. What are the two common types of pneumatic actuators?: Pneumatic cylinders (linear
motion) and pneumatic motors (rotary motion).
9. What are conductors in a pneumatic system?: Pathways such as pipes, tubes, or hoses that
carry compressed air between components.
10. What is the primary gas used in pneumatic systems?: Air, due to its availability and low
cost.
11. What are the primary features of pneumatic systems?: High speed, clean operation,
and low cost.
12. Why is pressure important in pneumatic systems?: It represents the energy contained
within compressed air and determines the force exerted.
13. How is pressure calculated in a pneumatic system?: By dividing the t otal force acting
on a surface by the total area over which the force is applied.
14. What units are commonly used to measure pressure in the US?: Pounds per
square inch (psi).
,15. What is the purpose of a pressure gauge in a pneumatic system?: To monitor
the pressure of compressed air at various points in the system.
16. How does a pressure gauge indicate pressure changes?: A pointer moves along a
graduated scale as pressure increases or decreases.
17. What do the two scales on a pressure gauge typically represent?: The outer scale
indicates pressure in psi, while the inner scale indicates pressure in kilopascals (kPa).
18. How should the kPa scale be interpreted on some pressure gauges?: The
number shown must be multiplied by 100 to determine the actual pressure value.
19. What industries commonly use pneumatic systems?: Manufacturing, transportation,
and construction.
20. What is a common application of pneumatic systems in manufacturing?: -
Operating automated equipment such as assembly machines and robotic devices.
21. How do pneumatic systems contribute to transportation industries?: They are
used in air brakes, suspension controls, and door mechanisms.
22. What tools in construction commonly rely on pneumatic systems?: Jackham-
mers, nail guns, and air-powered drills.
23. What makes pneumatic systems particularly valuable in clean environ-
ments?: They do not normally create contamination or fluid leaks.
24. What is the significance of rapid motion in pneumatic systems?: Compressed air
can move quickly, making them ideal for fast cycling applications.
25. What is the cost advantage of pneumatic systems?: They are generally less expensive
to install and maintain compared to other power transmission systems.
26. How do you convert the kPa reading on a gauge to actual pressure?: Multiply
the number shown by 100.
27. What is the relationship between psi and kPa?: One psi is approximately equivalent to 6.9
kPa.
28. What does the maximum value on a pressure gauge represent?: The highest
pressure the gauge is designed to measure accurately.
29. What do long and short graduations on a psi scale represent?: Long graduations
may represent increments of 20 psi, while short graduations represent smaller increments such as 2 psi.
30. What is the purpose of a pressure regulator?: To reduce and control the pressure before
it reaches the rest of the pneumatic system.
,31. What are the primary components of a pressure regulator valve?: Body, restrict-
ing element, loading element, adjustment spring, adjustment knob, and poppet spring.
32. What is the function of the body in a pressure regulator?: It houses the mechanical
components and includes the inlet port, outlet port, and vent hole.
33. What does the vent hole in a pressure regulator do?: Prevents excessive pressure
buildup inside the regulator.
34. What is the role of the restricting element in a pressure regulator?: Controls
and limits the flow of air through the valve.
35. What type of valve is commonly used as a restricting element?: Poppet valve.
36. How does the loading element function in a pressure regulator?: Applies the
force required to move and control the restricting element.
37. What is the purpose of the adjustment spring in a pressure regulator?: Allows
the operator to adjust the regulator smoothly to maintain the desired downstream pressure.
38. How does the adjustment knob affect the pressure regulator?: It changes the
compression of the adjustment spring, attecting the downstream pressure.
39. What happens when the adjustment knob is turned clockwise?: The outlet
pressure increases.
40. What is the function of the poppet spring in a pressure regulator?: Assists in
closing the poppet valve to stabilize the downstream pressure.
41. Where is a pressure regulator typically installed in a pneumatic system?: -
Between the air filter and the control valves.
42. What is the most common type of pneumatic actuator?: The pneumatic cylinder.
43. How does a pneumatic cylinder operate?: Compressed air enters the cylinder and acts on
an internal piston, producing linear mechanical motion.
44. What distinguishes a double-acting cylinder?: It has two air ports, allowing compressed
air to enter either side of the piston.
45. What happens when compressed air flows into the cap end of a double-act-
ing cylinder?: Pressure builds behind the piston, pushing it forward and extending the cylinder rod.
46. What occurs when compressed air flows into the rod end of a double-acting
cylinder?: The piston is pushed in the opposite direction, causing the cylinder rod to retract.
47. What is the role of the pilot hole in a pressure regulator?: Allows the outlet pressure
to act on the bottom of the piston head.
, 48. What is the purpose of a self-relieving pressure regulator?: To vent excess pressure
to the atmosphere when the selected downstream pressure is lower than the input pressure.
49. Why are self-relieving regulators not used with hazardous gases?: Because
venting such gases into the atmosphere creates a safety hazard.
50. How can an operator verify the correct setting of a pressure regulator?: By
connecting a pressure gauge to the regulator's port that displays the outlet pressure.
51. What is the function of the piston in a pneumatic cylinder?: It divides the cylinder
into two chambers and moves in response to compressed air.
52. What is the function of a directional control valve (DCV) in a pneumatic
system?: To control the direction of airflow and thus the movement of a pneumatic actuator.
53. What does a 5-ported, 4-way, 3-position DCV do?: It provides three functional states for
actuator control: extension, retraction, and stopping in a mid-position.
54. What are the five ports of a 5-ported, 4-way, 3-position DCV labeled as?: A,
B, P, EA, and EB.
55. What is the purpose of the valve body in a DCV?: To form the outer housing and contain
the internal flow passages.
56. What component inside a DCV shifts to connect different internal pas-
sages?: The spool.
57. What role do springs play in a DCV?: They return the spool to its neutral or center position when
the operator is released.
58. How are directional control valves represented in circuit diagrams?: Using
schematic symbols that illustrate the internal flow paths of the valve.
59. What happens when the lever of a 5-port, 3-position DCV is in the mid-po-
sition?: The spool is held in place by springs, blocking airflow and stopping the actuator.
60. What is a direct-operated pneumatic solenoid DCV?: A valve where the solenoid directly
moves the spool to control airflow.
61. What are the main components of a solenoid?: A frame, a coil, and an armature.
62. What does the armature do in a solenoid?: It moves in response to the magnetic field created
by the coil, shifting the valve spool.
63. What is the function of a manual override in a pneumatic solenoid valve?: To
allow manual shifting of the valve without electrical power.
