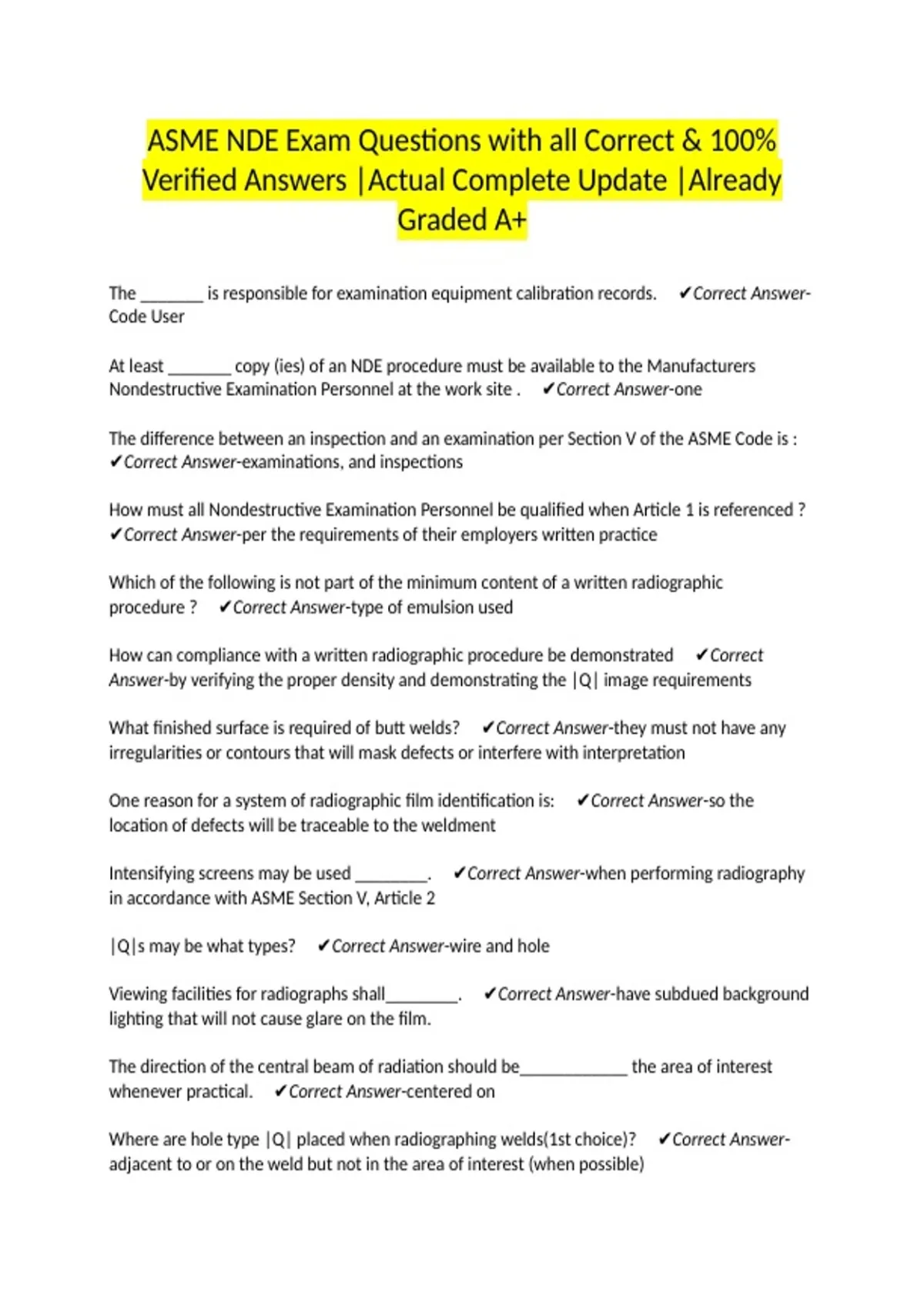

ASME NDE Exam Questions with all Correct & 100%
Verified Answers |Actual Complete Update |Already
Graded A+
The _______ is responsible for examination equipment calibration records. ✔Correct Answer-
Code User
At least _______ copy (ies) of an NDE procedure must be available to the Manufacturers
Nondestructive Examination Personnel at the work site . ✔Correct Answer-one
The difference between an inspection and an examination per Section V of the ASME Code is :
✔Correct Answer-examinations, and inspections
How must all Nondestructive Examination Personnel be qualified when Article 1 is referenced ?
✔Correct Answer-per the requirements of their employers written practice
Which of the following is not part of the minimum content of a written radiographic
procedure ? ✔Correct Answer-type of emulsion used
How can compliance with a written radiographic procedure be demonstrated ✔Correct
Answer-by verifying the proper density and demonstrating the |Q| image requirements
What finished surface is required of butt welds? ✔Correct Answer-they must not have any
irregularities or contours that will mask defects or interfere with interpretation
One reason for a system of radiographic film identification is: ✔Correct Answer-so the
location of defects will be traceable to the weldment
Intensifying screens may be used ________. ✔Correct Answer-when performing radiography
in accordance with ASME Section V, Article 2
|Q|s may be what types? ✔Correct Answer-wire and hole
Viewing facilities for radiographs shall________. ✔Correct Answer-have subdued background
lighting that will not cause glare on the film.
The direction of the central beam of radiation should be____________ the area of interest
whenever practical. ✔Correct Answer-centered on
Where are hole type |Q| placed when radiographing welds(1st choice)? ✔Correct Answer-
adjacent to or on the weld but not in the area of interest (when possible)
, Where are location markers placed if they are to appear as a radiographic image ? ✔Correct
Answer-on the part to be radiographed
|Q| is normally placed on which side of a part? ✔Correct Answer-the source side expert
when in accessibility prevents hand placement on that side.
What designation is used to indicate the |Q| is on the film side? ✔Correct Answer-a lead
letter "F" placed next to or on the IQ
How many |Q|s should appear on each radiograph? ✔Correct Answer-it depends on the
configuration used to set up the shot( panoramic multifilm, single shots , etc....)
Shims may be placed under |Q|s to stimulate weld reinforcement to assure the density in the
area of interest is no more than ______ lighter than the density through the |Q|. ✔Correct
Answer-15%
Which of the following blemishes is permitted on film as long as they do not interfere with
interpretation and do not mask or become confused with discontinuities in the area of interest?
✔Correct Answer-fogging & false indications from defective screens...scratches,crimps,static
marks & dirtiness ....processing defects such as streaks & water marks
The minimum density requirements for single film viewing are: ✔Correct Answer-2.0 for film
made with gamma ray and 1.8 for film made with an X-ray machine
When using only one |Q| per film density measurements may vary through the area of interest
by no more than ____________or additional |Q| s will be required . ✔Correct Answer-a
minus 15% or plus 30%
Which of the below is an essential indication of sensitivity for image quality of a radiograph?
✔Correct Answer-display of the designated hole or essential wire of the |Q| used
Excessive backscatter in indicated by: ✔Correct Answer-a light image of the lead letter "B" on
a dark background
A tank is built with plate under 2 inches thick.The geomatic unsharpness of the radiographs shall
not exceed: ✔Correct Answer-0.020"
The following information may not be included in the documentation accompanying the
radiographs : ✔Correct Answer-development time & exact shim material specifications
When the radiographs are presented to the Authorized inspector _________ ✔Correct
Answer-the manufacturer will have interpreted all the film and will have indicated the
