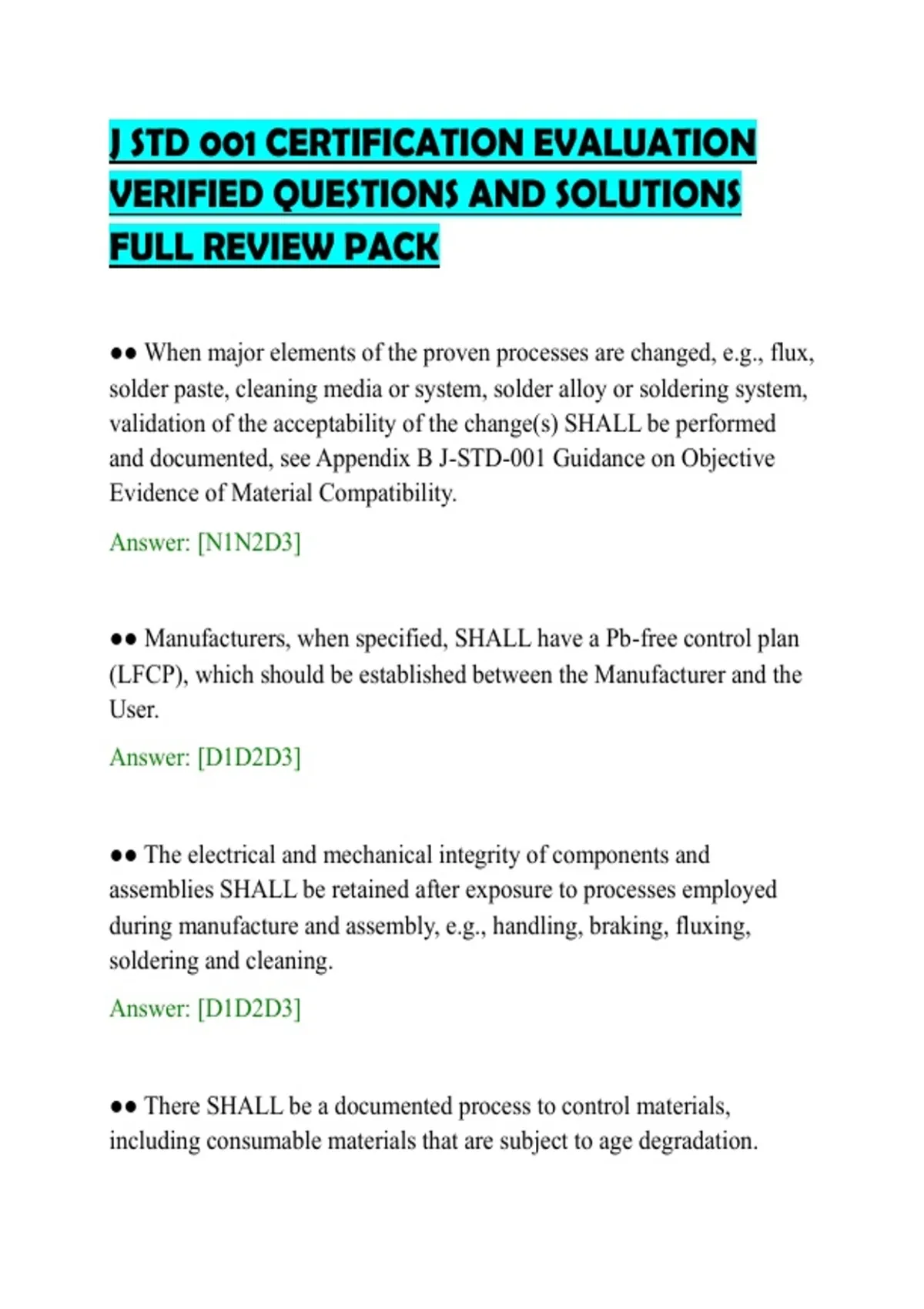

J STD 001 CERTIFICATION EVALUATION
VERIFIED QUESTIONS AND SOLUTIONS
FULL REVIEW PACK
●● When major elements of the proven processes are changed, e.g., flux,
solder paste, cleaning media or system, solder alloy or soldering system,
validation of the acceptability of the change(s) SHALL be performed
and documented, see Appendix B J-STD-001 Guidance on Objective
Evidence of Material Compatibility.
Answer: [N1N2D3]
●● Manufacturers, when specified, SHALL have a Pb-free control plan
(LFCP), which should be established between the Manufacturer and the
User.
Answer: [D1D2D3]
●● The electrical and mechanical integrity of components and
assemblies SHALL be retained after exposure to processes employed
during manufacture and assembly, e.g., handling, braking, fluxing,
soldering and cleaning.
Answer: [D1D2D3]
●● There SHALL be a documented process to control materials,
including consumable materials that are subject to age degradation.
, Answer: [N1D2D3]
●● Limited shelf life items SHALL be stored and controlled in
accordance with the materials manufacturer's recommendations or in
accordance with the Manufacturer's documented procedures for
controlling shelf life and shelf life extensions.
Answer: [N1D2D3]
●● Unless otherwise specified on the engineering documentation,
materials SHALL be processed (mixing, curing, etc.) per the material
specification or other documented procedure.
Answer: [N1D2D3]
●● Material SHALL be used within the pot life (working time) specified
by the material manufacturer or used within the time period indicated by
a documented system.
Answer: [N1D2D3]
●● When curing conditions (temperature, time, infrared (IR) intensity,
etc.) vary from the material manufacturer's recommended instructions,
they SHALL be documented and available for review.
Answer: [N1D2D3]
●● Items exposed to uncured silicone material SHALL NOT be used for
processing other material.
VERIFIED QUESTIONS AND SOLUTIONS
FULL REVIEW PACK
●● When major elements of the proven processes are changed, e.g., flux,
solder paste, cleaning media or system, solder alloy or soldering system,
validation of the acceptability of the change(s) SHALL be performed
and documented, see Appendix B J-STD-001 Guidance on Objective
Evidence of Material Compatibility.
Answer: [N1N2D3]
●● Manufacturers, when specified, SHALL have a Pb-free control plan
(LFCP), which should be established between the Manufacturer and the
User.
Answer: [D1D2D3]
●● The electrical and mechanical integrity of components and
assemblies SHALL be retained after exposure to processes employed
during manufacture and assembly, e.g., handling, braking, fluxing,
soldering and cleaning.
Answer: [D1D2D3]
●● There SHALL be a documented process to control materials,
including consumable materials that are subject to age degradation.
, Answer: [N1D2D3]
●● Limited shelf life items SHALL be stored and controlled in
accordance with the materials manufacturer's recommendations or in
accordance with the Manufacturer's documented procedures for
controlling shelf life and shelf life extensions.
Answer: [N1D2D3]
●● Unless otherwise specified on the engineering documentation,
materials SHALL be processed (mixing, curing, etc.) per the material
specification or other documented procedure.
Answer: [N1D2D3]
●● Material SHALL be used within the pot life (working time) specified
by the material manufacturer or used within the time period indicated by
a documented system.
Answer: [N1D2D3]
●● When curing conditions (temperature, time, infrared (IR) intensity,
etc.) vary from the material manufacturer's recommended instructions,
they SHALL be documented and available for review.
Answer: [N1D2D3]
●● Items exposed to uncured silicone material SHALL NOT be used for
processing other material.
