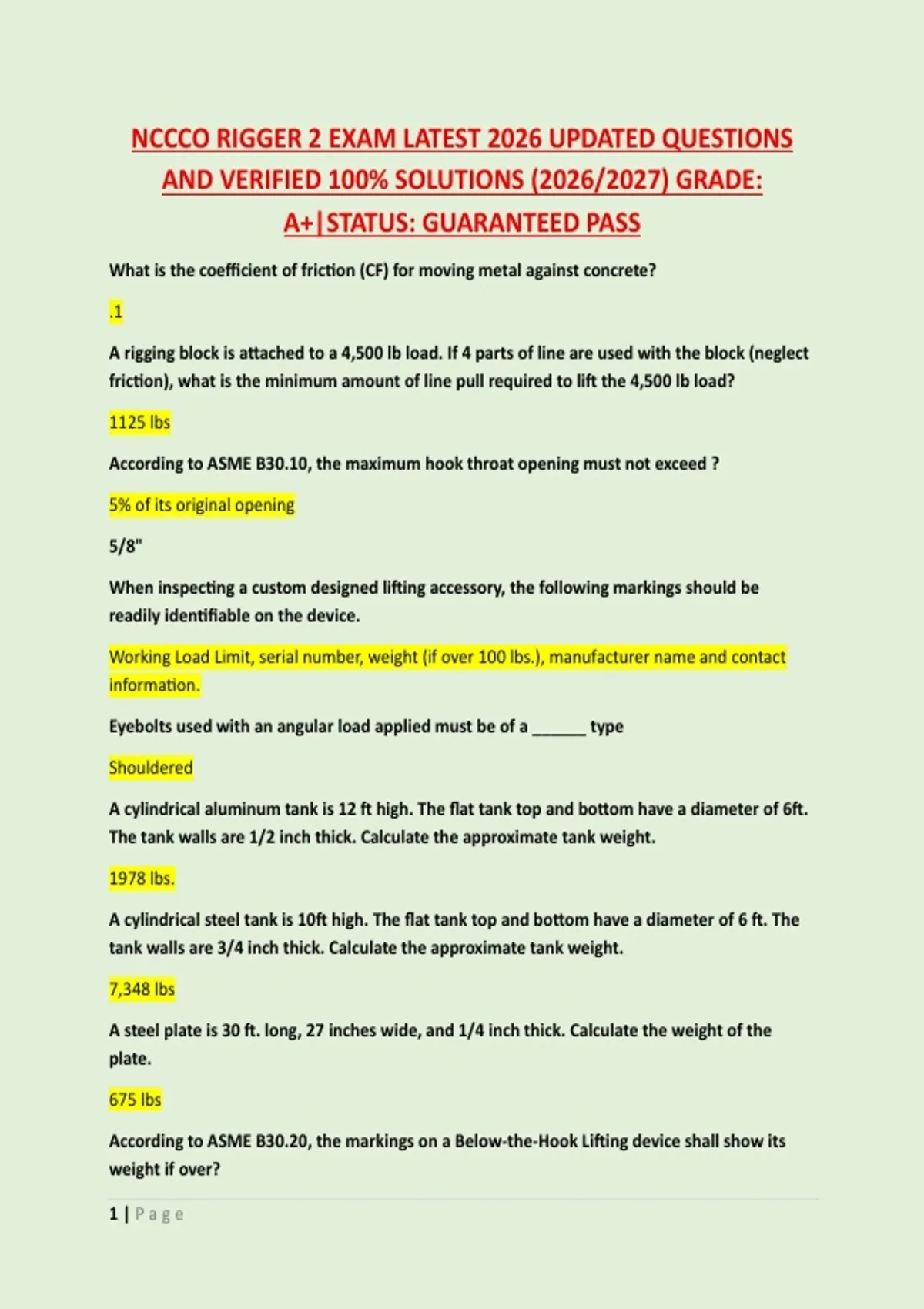

NCCCO RIGGER 2 EXAM LATEST 2026 UPDATED QUESTIONS
AND VERIFIED 100% SOLUTIONS (2026/2027) GRADE:
A+|STATUS: GUARANTEED PASS
What is the coefficient of friction (CF) for moving metal against concrete?
.1
A rigging block is attached to a 4,500 lb load. If 4 parts of line are used with the block (neglect
friction), what is the minimum amount of line pull required to lift the 4,500 lb load?
1125 lbs
According to ASME B30.10, the maximum hook throat opening must not exceed ?
5% of its original opening
5/8"
When inspecting a custom designed lifting accessory, the following markings should be
readily identifiable on the device.
Working Load Limit, serial number, weight (if over 100 lbs.), manufacturer name and contact
information.
Eyebolts used with an angular load applied must be of a ______ type
Shouldered
A cylindrical aluminum tank is 12 ft high. The flat tank top and bottom have a diameter of 6ft.
The tank walls are 1/2 inch thick. Calculate the approximate tank weight.
1978 lbs.
A cylindrical steel tank is 10ft high. The flat tank top and bottom have a diameter of 6 ft. The
tank walls are 3/4 inch thick. Calculate the approximate tank weight.
7,348 lbs
A steel plate is 30 ft. long, 27 inches wide, and 1/4 inch thick. Calculate the weight of the
plate.
675 lbs
According to ASME B30.20, the markings on a Below-the-Hook Lifting device shall show its
weight if over?
1|Page
, 100 lbs
A square steel tube is 30 ft long. The tube is 6 ft. tall x 6 ft. wide, and the tube wall thickness is
3/4 inch. Calculate the approximate weight of the square steel tube
21,600 lbs
Who appoints the signalperson?
Lift Director
What types of inspections are required for Below-the-Hook devices in ASME B30.20?
All of the above
Alloy chain slings that are used for overhead lifting shall be a minimum grade of ?
80
What is the design factor for wire rope slings?
5:1
Given a Sling Length (L) of 82 inches and a Sling Height (H) of 45 inches, calculate the load
angel factor (load Factor)?
1.82
Given a Sling Length (L) of 96 inches and a Sling Height (H) of 61 inches, calculate the load
angle factor (Load Factor)?
1.57
A 500 lb crate is loaded with paper. The paper dimensions are 8 ft long x 5.6 ft wide x 3 ft high.
Calculate the total weight of the crate with the paper.
8,564 lbs
What type of knot would a rigger use to connect the ends of tow ropes of different sizes?
Sheet Bend
A cylindrical aluminum tank is 16 ft high. The flat tank top and bottom have a diameter of 7 ft.
The tank walls are 3/4 inch thick. Calculate the approximate tank weight.
4,500 lbs
What is the ASME standard for Slings?
2|Page
