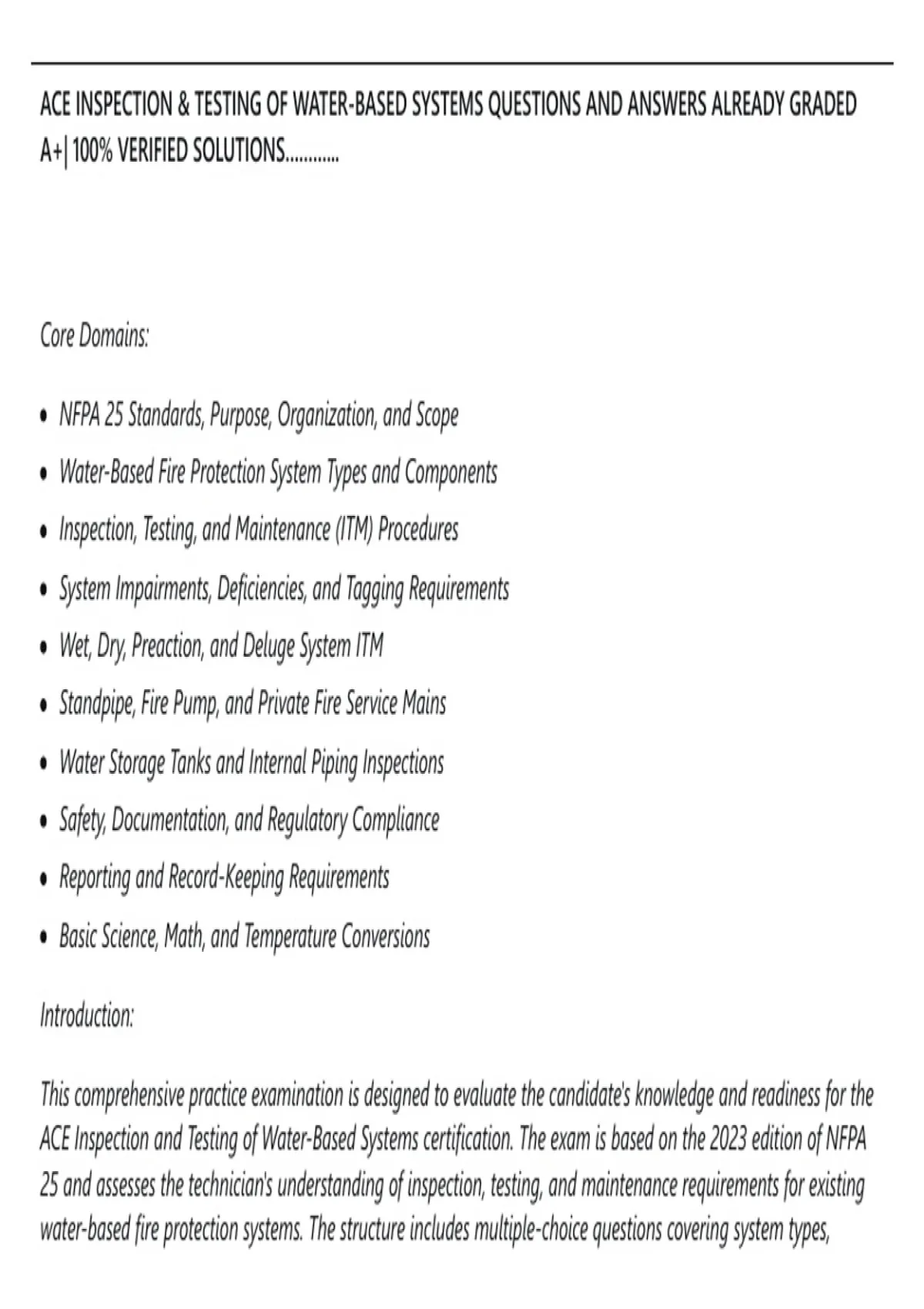

ACE INSPECTION & TESTING OF WATER-BASED SYSTEMS QUESTIONS AND ANSWERS ALREADY GRADED
A+| 100% VERIFIED SOLUTIONS………...
Core Domains:
NFPA 25 Standards, Purpose, Organization, and Scope
Water-Based Fire Protection System Types and Components
Inspection, Testing, and Maintenance (ITM) Procedures
System Impairments, Deficiencies, and Tagging Requirements
Wet, Dry, Preaction, and Deluge System ITM
Standpipe, Fire Pump, and Private Fire Service Mains
Water Storage Tanks and Internal Piping Inspections
Safety, Documentation, and Regulatory Compliance
Reporting and Record-Keeping Requirements
Basic Science, Math, and Temperature Conversions
Introduction:
This comprehensive practice examination is designed to evaluate the candidate's knowledge and readiness for the
ACE Inspection and Testing of Water-Based Systems certification. The exam is based on the 2023 edition of NFPA
25 and assesses the technician's understanding of inspection, testing, and maintenance requirements for existing
water-based fire protection systems. The structure includes multiple-choice questions covering system types,
,components, ITM procedures, impairments, reporting, and regulatory compliance. Each question emphasizes real-
world application, challenging the test-taker to demonstrate the practical knowledge and decision-making skills
required for safe and effective inspection and testing of water-based fire protection systems.
SECTION ONE: QUESTIONS 1–100
1. The ACE Inspection and Testing of Water-Based Systems certification exam is based on which edition of
NFPA 25?
A. 2019 edition
B. 2021 edition
C. 2023 edition
D. 2025 edition
🟢 C. 2023 edition
🔴 RATIONALE: The ACE Inspection and Testing of Water-Based Systems certification exam is based on the
2023 edition of NFPA 25.
2. Which of the following best describes the primary purpose of NFPA 25?
,A. To provide installation requirements for new fire protection systems
B. To establish minimum inspection, testing, and maintenance requirements for existing water-based fire
protection systems
C. To regulate the manufacturing of fire sprinkler components
D. To set standards for fire department operations
🟢 B. To establish minimum inspection, testing, and maintenance requirements for existing water-based fire
protection systems
🔴 RATIONALE: NFPA 25 provides the minimum requirements for the inspection, testing, and maintenance of
existing water-based fire protection systems to ensure they remain in proper operating condition.
3. Which of the following is NOT a type of water-based fire protection system addressed in NFPA 25?
A. Wet system
B. Dry system
C. Preaction system
D. Gaseous suppression system
🟢 D. Gaseous suppression system
🔴 RATIONALE: NFPA 25 addresses water-based systems including wet, dry, preaction, and deluge systems.
Gaseous suppression systems are covered under other NFPA standards.
, 4. A control valve that is locked in the open position must have what type of device installed to indicate its
position?
A. Pressure gauge
B. Supervisory switch
C. Flow switch
D. Tamper switch
🟢 D. Tamper switch
🔴 RATIONALE: A tamper switch (supervisory switch) is installed on control valves to monitor their position and
provide an alarm if the valve is closed or tampered with.
5. During an inspection of a wet pipe sprinkler system, the inspector notices that the water flow alarm does
not activate when the alarm test valve is opened. Which of the following is the most likely cause?
A. The system is in a dry condition
B. The alarm check valve is stuck
C. The water supply is insufficient
D. The sprinkler heads are all closed
🟢 B. The alarm check valve is stuck
🔴 RATIONALE: In a wet pipe system, the water flow alarm is activated by water flow through the alarm check
valve. If the alarm does not activate, the alarm check valve may be stuck or the alarm line may be obstructed.
