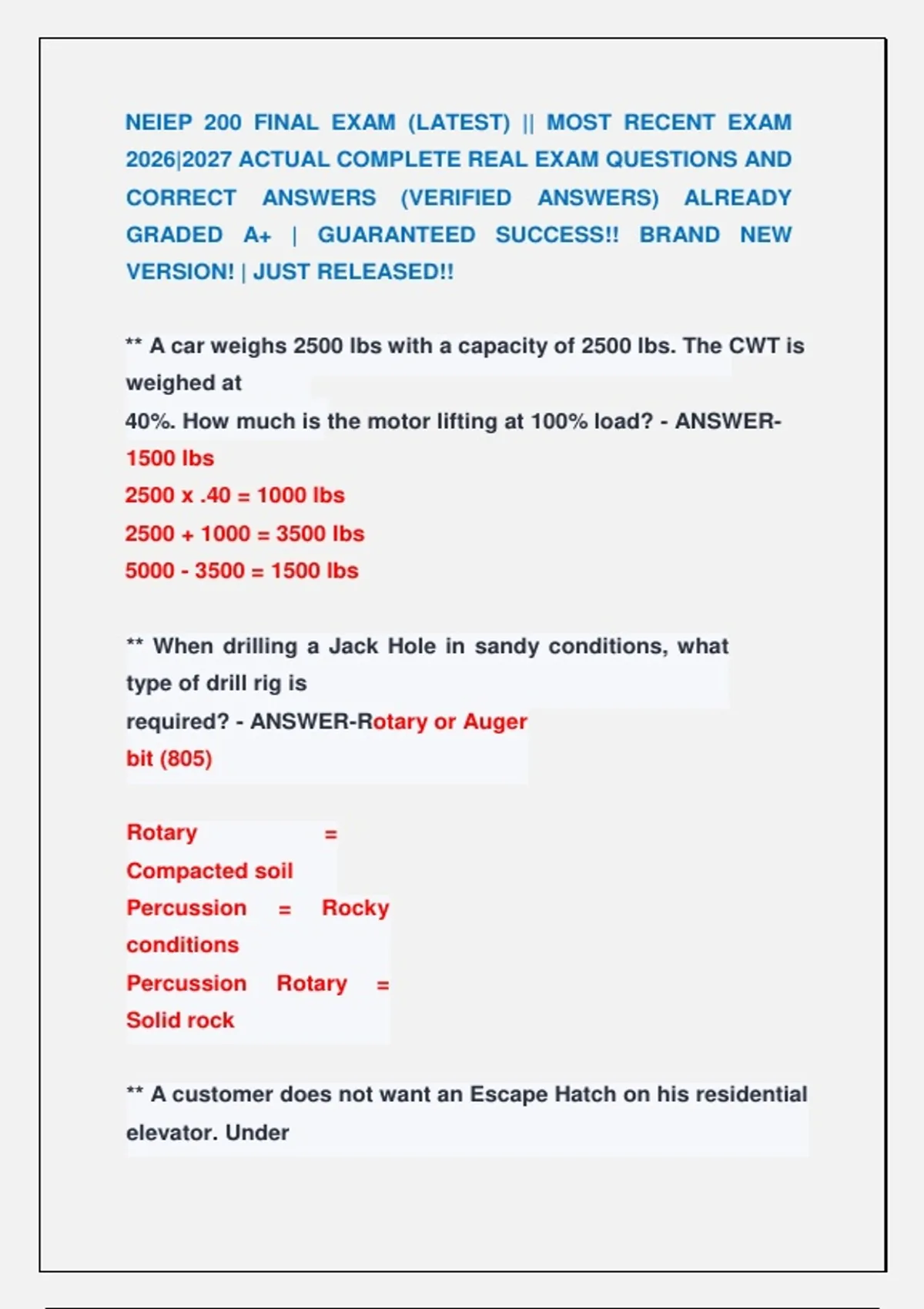

NEIEP 200 FINAL EXAM (LATEST) || MOST RECENT EXAM
2026|2027 ACTUAL COMPLETE REAL EXAM QUESTIONS AND
CORRECT ANSWERS (VERIFIED ANSWERS) ALREADY
GRADED A+ | GUARANTEED SUCCESS!! BRAND NEW
VERSION! | JUST RELEASED!!
** A car weighs 2500 lbs with a capacity of 2500 lbs. The CWT is
weighed at
40%. How much is the motor lifting at 100% load? - ANSWER-
1500 lbs
2500 x .40 = 1000 lbs
2500 + 1000 = 3500 lbs
5000 - 3500 = 1500 lbs
** When drilling a Jack Hole in sandy conditions, what
type of drill rig is
required? - ANSWER-Rotary or Auger
bit (805)
Rotary =
Compacted soil
Percussion = Rocky
conditions
Percussion Rotary =
Solid rock
** A customer does not want an Escape Hatch on his residential
elevator. Under
,what conditions is this legal? - ANSWER-Manual Operation
must be provided
(850)
** You wired the Down Direction and Final Limit switches. Now
the car only runs
up. What is the problem? - ANSWER-You wired the Down
Direction Limit
wrong.
** What are the effects of one rope sitting deeper in the
sheave groove? -
ANSWER-The rope wears out and breaks
faster (250)
** There is a noise coming from a freight door. The sheave is
moving but the
chain is not. What is the problem? - ANSWER-Oil on
on the chain
** What is the effect when you change a sling angle from
60* to 30* when
hoisting and rigging? - ANSWER-More tension,
less capacity.
** How many points of contact must be maintained on a
ladder? - ANSWER-3
,points at all
time.
* What is the conversion formula when measuring Inch to MM? -
ANSWER-25.4
Inch to MM
(.03937)
2.54 Inch to CM
(.3937)
** You open a Dumbwaiter access panel and it still runs. What
is the cause? -
ANSWER-Pit Access switch is not
working. (550)
** You perform a static load test with the pit valve in the closed
position. The car
sinks 6" in 15 minutes. What is the cause? - ANSWER-
Cylinder leak (520)
** Where should you point the fire extinguisher when
putting out a fire? -
ANSWER-At the base of
the fire
** A car with a "Selective Collective" controller is moving to the
lobby to pick up a call. An up call is put in at the second floor.
What happens? - ANSWER-Call is bypassed till the car is
moving in the up direction.
, ** During construction, you land an escalator but it is 10mm
to low. What is
wrong? - ANSWER-Pit is too deep or Column Mark
is off. (825)
** During construction, the Omega CWT rails have been
damaged. Why? -
ANSWER-Overtightened from rail
bracket. (215)
** How do you attach brackets to brick/concrete blocks? -
ANSWER-"Inserts"
1/4" back from
brick/concrete blocks
** Given a generator that runs at 600 rpm and has 4 Poles, what
is the output
frequency? - ANSWER-600/60seconds =
10x2 = 20 HZ
** If an Exclusive OR gate was connected to a NOR gate and
attached to a AND gate with a high out put, what must the input
at the Exclusive OR gate A and B be? - ANSWER-Both must be
high
** Using Binary logic, what DIP switches need to be in the "
On" position of a
