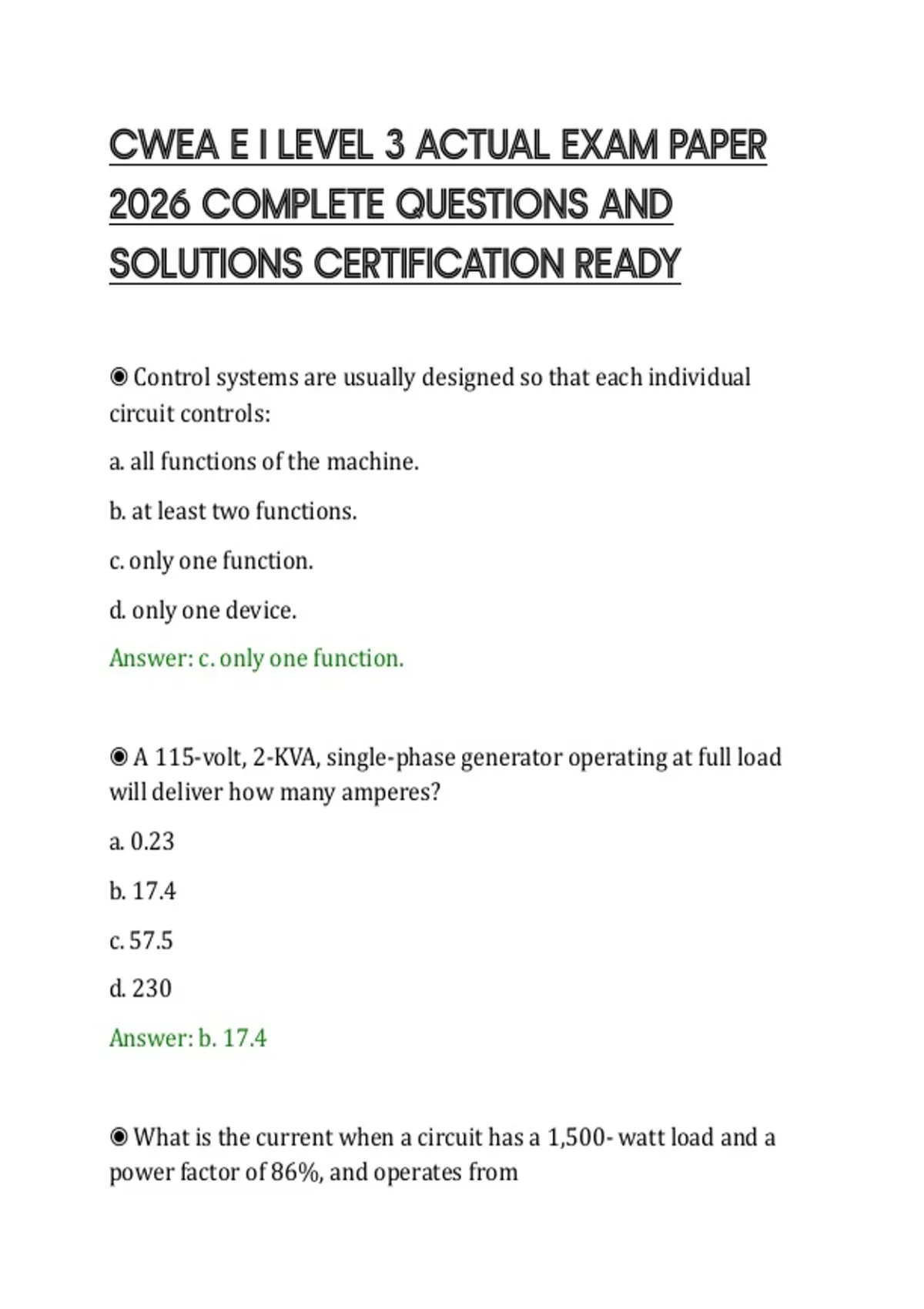

CWEA E I LEVEL 3 ACTUAL EXAM PAPER
2026 COMPLETE QUESTIONS AND
SOLUTIONS CERTIFICATION READY
◉ Control systems are usually designed so that each individual
circuit controls:
a. all functions of the machine.
b. at least two functions.
c. only one function.
d. only one device.
Answer: c. only one function.
◉ A 115-volt, 2-KVA, single-phase generator operating at full load
will deliver how many amperes?
a. 0.23
b. 17.4
c. 57.5
d. 230
Answer: b. 17.4
◉ What is the current when a circuit has a 1,500- watt load and a
power factor of 86%, and operates from
, a three-phase 230-volt source?
a. 9.7 amps
b. 6.5 amps
c. 4.4 amps
d. 3.8 amps
Answer: c. 4.4 amps
◉ What is the amp-load of a three-phase, 0.5-hp, 230-volt motor
with an efficiency rating of 92% and a
power factor of 80%?
a. 1.27 amps
b. 1.19 amps
c. 2.55 amps
c. 4.41 amps
Answer: a. 1.27 amps
◉ A three-phase, 460-volt motor draws a current of 52 amperes. The
motor has an efficiency rating of
94% and a power factor of 80%. What is the horsepower?
a. 24.1 hp
b. 41.7 hp
c. 50.0 hp
2026 COMPLETE QUESTIONS AND
SOLUTIONS CERTIFICATION READY
◉ Control systems are usually designed so that each individual
circuit controls:
a. all functions of the machine.
b. at least two functions.
c. only one function.
d. only one device.
Answer: c. only one function.
◉ A 115-volt, 2-KVA, single-phase generator operating at full load
will deliver how many amperes?
a. 0.23
b. 17.4
c. 57.5
d. 230
Answer: b. 17.4
◉ What is the current when a circuit has a 1,500- watt load and a
power factor of 86%, and operates from
, a three-phase 230-volt source?
a. 9.7 amps
b. 6.5 amps
c. 4.4 amps
d. 3.8 amps
Answer: c. 4.4 amps
◉ What is the amp-load of a three-phase, 0.5-hp, 230-volt motor
with an efficiency rating of 92% and a
power factor of 80%?
a. 1.27 amps
b. 1.19 amps
c. 2.55 amps
c. 4.41 amps
Answer: a. 1.27 amps
◉ A three-phase, 460-volt motor draws a current of 52 amperes. The
motor has an efficiency rating of
94% and a power factor of 80%. What is the horsepower?
a. 24.1 hp
b. 41.7 hp
c. 50.0 hp
