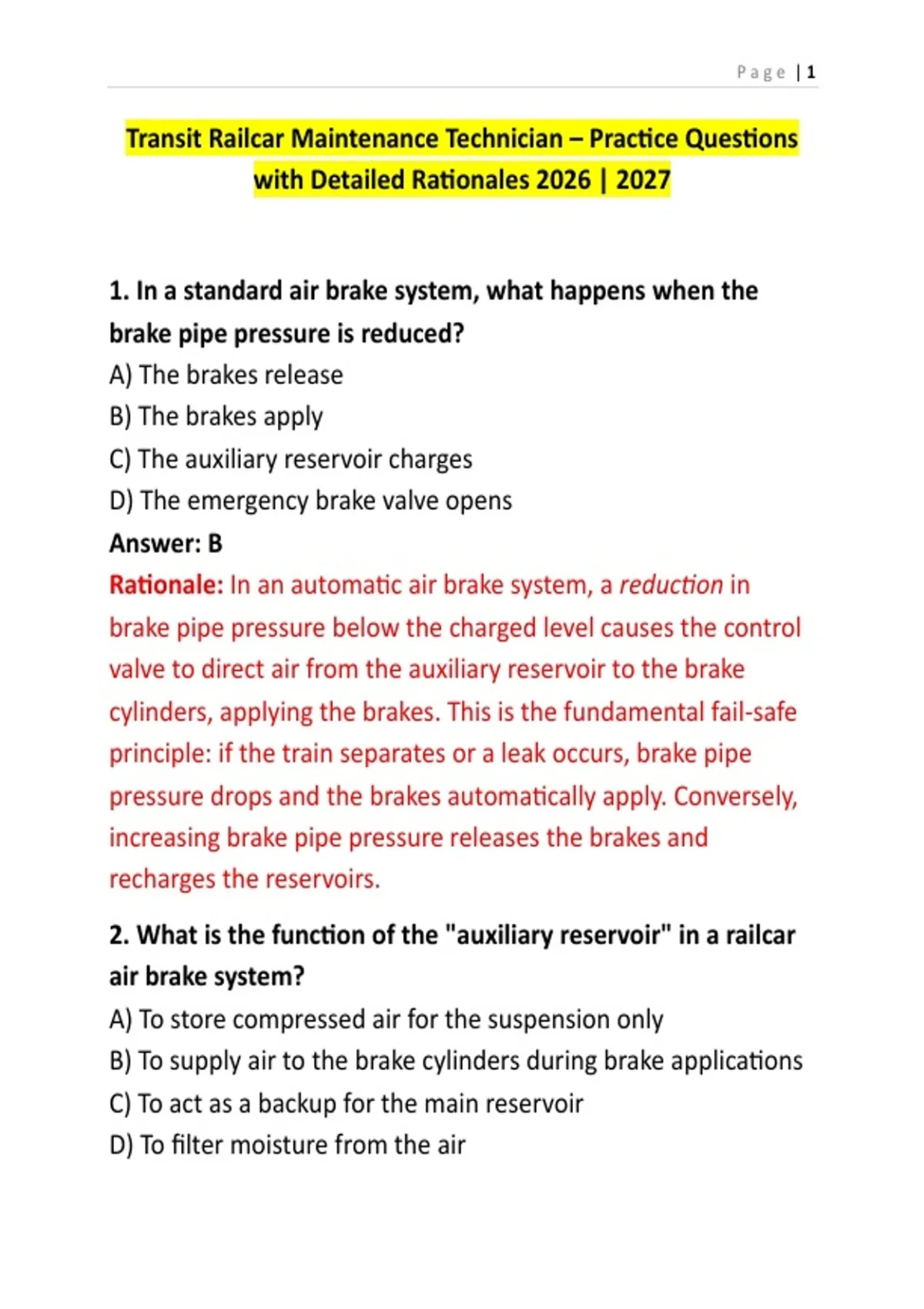

Transit Railcar Maintenance Technician – Practice Questions
with Detailed Rationales 2026 | 2027
1. In a standard air brake system, what happens when the
brake pipe pressure is reduced?
A) The brakes release
B) The brakes apply
C) The auxiliary reservoir charges
D) The emergency brake valve opens
Answer: B
Rationale: In an automatic air brake system, a reduction in
brake pipe pressure below the charged level causes the control
valve to direct air from the auxiliary reservoir to the brake
cylinders, applying the brakes. This is the fundamental fail-safe
principle: if the train separates or a leak occurs, brake pipe
pressure drops and the brakes automatically apply. Conversely,
increasing brake pipe pressure releases the brakes and
recharges the reservoirs.
2. What is the function of the "auxiliary reservoir" in a railcar
air brake system?
A) To store compressed air for the suspension only
B) To supply air to the brake cylinders during brake applications
C) To act as a backup for the main reservoir
D) To filter moisture from the air
, Page |2
Answer: B
Rationale: The auxiliary reservoir stores compressed air locally
on each car. When the brake pipe pressure is reduced, the
control valve uses air from the auxiliary reservoir to pressurize
the brake cylinders. After a brake release, the auxiliary reservoir
is recharged from the brake pipe via the control valve. Its size is
matched to the brake cylinder volume to ensure adequate
braking force.
3. What is the purpose of the "emergency reservoir" in some
railcar brake systems?
A) To provide extra air for the horn
B) To supply a higher brake application pressure during
emergency braking
C) To operate the doors in an emergency
D) To inflate the air springs
Answer: B
Rationale: In many transit and commuter rail brake systems, an
emergency reservoir (sometimes combined with the auxiliary
reservoir) stores additional air to achieve a higher brake
cylinder pressure during an emergency application. This ensures
maximum braking effort even if the main reservoir is depleted
or the brake pipe is severed.
4. What does the "brake cylinder" do in a railcar brake
system?
, Page |3
A) It compresses air for the system
B) It converts air pressure into mechanical force to apply the
brake shoes or pads
C) It releases the parking brake
D) It measures brake shoe wear
Answer: B
Rationale: The brake cylinder is a pneumatic actuator. When
pressurized air enters, it pushes a piston, which through levers
or slack adjusters forces the brake shoes against the wheel
tread or the brake pads against the disc. The force is
proportional to the air pressure, which is controlled by the
brake control system.
5. What is a "slack adjuster" and why is it important?
A) A device that adjusts the brake pipe pressure
B) A mechanical device that automatically compensates for
brake shoe wear
C) A tool used to adjust the suspension height
D) A valve that regulates air flow
Answer: B
Rationale: As brake shoes or pads wear, the clearance between
the shoe and the wheel/disc increases. A slack adjuster
automatically takes up this wear to maintain proper brake
cylinder piston travel and consistent braking force. Without it,
brake effectiveness would degrade as linings wear, and manual
adjustments would be required frequently.
, Page |4
6. Which of the following is a typical symptom of a leaking
brake pipe?
A) Brakes release too quickly
B) Brakes apply without command, especially on the entire train
C) Air compressor runs less frequently
D) Door operation becomes faster
Answer: B
Rationale: Because the brake pipe is the control medium, any
significant leak reduces brake pipe pressure. In a standard
automatic air brake, this pressure reduction is interpreted as a
command to apply the brakes. Therefore, a leak can cause
unintended brake applications, often starting with a slow loss of
pressure and eventually a full brake application if the leak is
severe. The compressor may run more frequently to maintain
main reservoir pressure, but the direct effect is unintended
braking.
7. What is the function of the "main reservoir" in a railcar air
system?
A) To store air for the brake pipe
B) To store compressed air from the compressor for all
pneumatic systems
C) To supply air only to the suspension
D) To act as a backup for the emergency reservoir
Answer: B
Rationale: The main reservoir is the primary storage tank for
