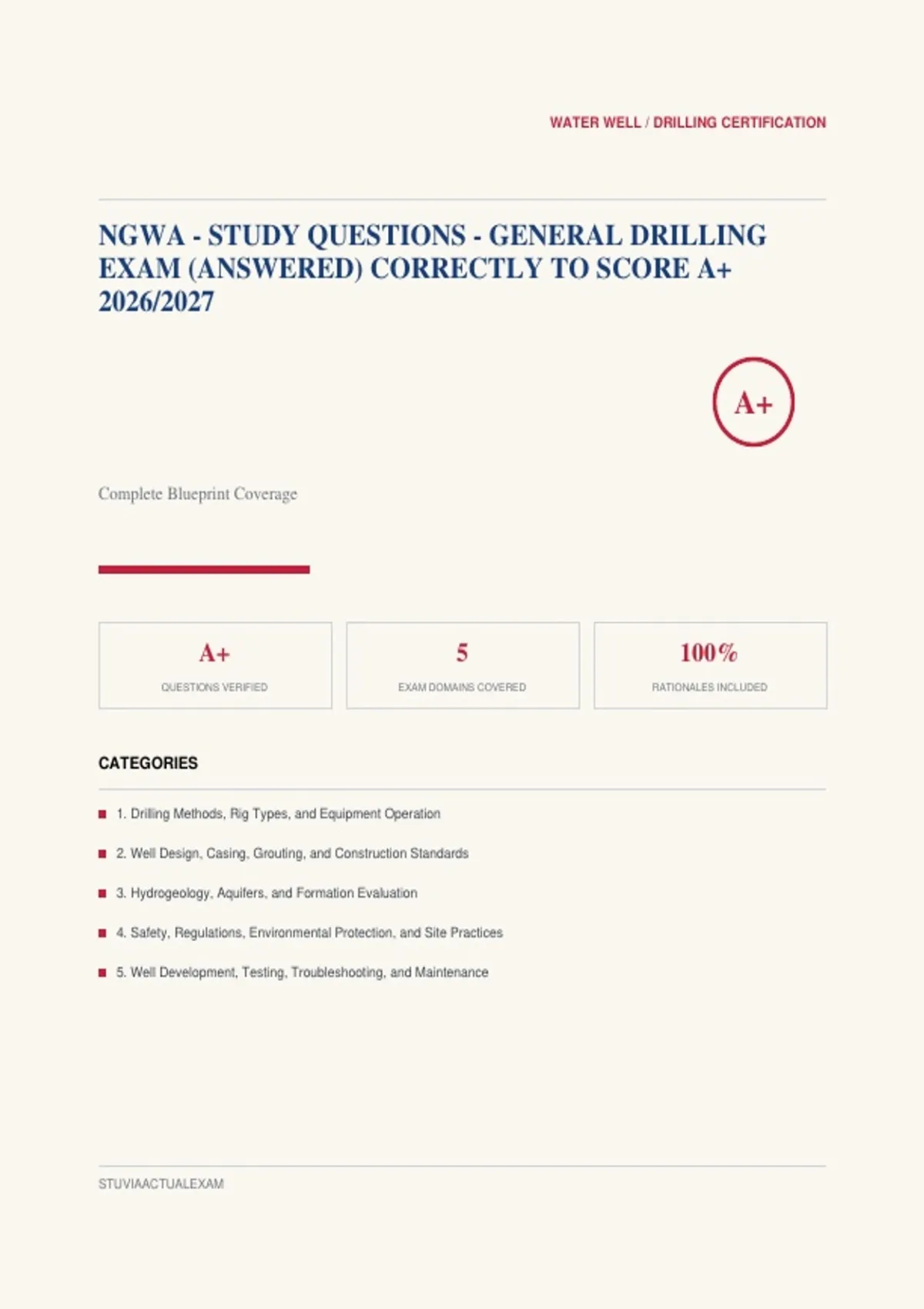

WATER WELL / DRILLING CERTIFICATION
NGWA - STUDY QUESTIONS - GENERAL DRILLING
EXAM (ANSWERED) CORRECTLY TO SCORE A+
2026/2027
A+
Complete Blueprint Coverage
A+ 5 100%
QUESTIONS VERIFIED EXAM DOMAINS COVERED RATIONALES INCLUDED
CATEGORIES
1. Drilling Methods, Rig Types, and Equipment Operation
2. Well Design, Casing, Grouting, and Construction Standards
3. Hydrogeology, Aquifers, and Formation Evaluation
4. Safety, Regulations, Environmental Protection, and Site Practices
5. Well Development, Testing, Troubleshooting, and Maintenance
STUVIAACTUALEXAM
, 1. Drilling Methods, Rig Types, and Equipment Operation
Q1
A drilling contractor is selecting a method for a domestic water well in unconsolidated sand and gravel to a planned depth
of 180 feet. The client needs a continuous-diameter borehole with minimal formation disturbance and the ability to set
casing as drilling advances. Which drilling method best matches these requirements?
A. Cable-tool percussion drilling with intermittent bailing
B. Mud rotary drilling with a tricone bit and bentonite fluid
C. Air rotary drilling with down-the-hole hammer in hard rock only
D. Jetting with a high-pressure water nozzle and no circulation return
Correct Answer: B
Rationale: Mud rotary is well suited to unconsolidated formations, provides continuous cuttings removal, supports borehole stability with drilling
fluid, and allows casing advancement or subsequent installation in a controlled diameter. Cable-tool is slower and intermittent; air rotary with DTH
is primarily for consolidated rock; simple jetting lacks the control and depth capability needed here.
Q2
During rotary drilling, the driller notices a sudden increase in torque and a decrease in penetration rate while circulating a
bentonite-based mud. The pump pressure rises and cuttings return diminishes. Which operational problem is most
consistent with these observations?
A. Bit is under-weighted and requires more pull-down force
B. Borehole is experiencing a partial or full mud ring or cuttings blockage in the annulus
C. Formation has become completely impermeable and drilling should stop
D. Mud viscosity is too low and needs immediate thinning with water only
Correct Answer: B
Rationale: Rising torque, higher pump pressure, reduced returns, and slower penetration commonly indicate annular restriction from a mud ring
or packed cuttings. Increasing bit weight alone does not address circulation blockage; impermeability is not the primary interpretation of these
signs; thinning mud without clearing the blockage can worsen hole conditions.
Q3
A crew is mobilizing a truck-mounted rotary rig to a site with limited overhead clearance under power lines. The mast
must be raised for drilling. What is the most critical pre-raise control measure specific to this hazard?
A. Increase mud weight before raising the mast
B. Confirm line location and voltage, maintain required clearance distances, and use a spotter or insulated boom procedures
as applicable
C. Raise the mast fully then measure clearance after it is vertical
D. Disconnect all electrical systems on the rig before any movement
Correct Answer: B
Rationale: Overhead power lines present electrocution and arc hazards. Clearance distances, utility notification, and controlled raising with a
spotter are mandatory safety steps. Mud weight is unrelated to electrical clearance; raising first then measuring is reactive and dangerous; total
electrical disconnect does not address contact with external lines.
NGWA GENERAL DRILLING EXAM 2026/2027 Page 2
NGWA - STUDY QUESTIONS - GENERAL DRILLING
EXAM (ANSWERED) CORRECTLY TO SCORE A+
2026/2027
A+
Complete Blueprint Coverage
A+ 5 100%
QUESTIONS VERIFIED EXAM DOMAINS COVERED RATIONALES INCLUDED
CATEGORIES
1. Drilling Methods, Rig Types, and Equipment Operation
2. Well Design, Casing, Grouting, and Construction Standards
3. Hydrogeology, Aquifers, and Formation Evaluation
4. Safety, Regulations, Environmental Protection, and Site Practices
5. Well Development, Testing, Troubleshooting, and Maintenance
STUVIAACTUALEXAM
, 1. Drilling Methods, Rig Types, and Equipment Operation
Q1
A drilling contractor is selecting a method for a domestic water well in unconsolidated sand and gravel to a planned depth
of 180 feet. The client needs a continuous-diameter borehole with minimal formation disturbance and the ability to set
casing as drilling advances. Which drilling method best matches these requirements?
A. Cable-tool percussion drilling with intermittent bailing
B. Mud rotary drilling with a tricone bit and bentonite fluid
C. Air rotary drilling with down-the-hole hammer in hard rock only
D. Jetting with a high-pressure water nozzle and no circulation return
Correct Answer: B
Rationale: Mud rotary is well suited to unconsolidated formations, provides continuous cuttings removal, supports borehole stability with drilling
fluid, and allows casing advancement or subsequent installation in a controlled diameter. Cable-tool is slower and intermittent; air rotary with DTH
is primarily for consolidated rock; simple jetting lacks the control and depth capability needed here.
Q2
During rotary drilling, the driller notices a sudden increase in torque and a decrease in penetration rate while circulating a
bentonite-based mud. The pump pressure rises and cuttings return diminishes. Which operational problem is most
consistent with these observations?
A. Bit is under-weighted and requires more pull-down force
B. Borehole is experiencing a partial or full mud ring or cuttings blockage in the annulus
C. Formation has become completely impermeable and drilling should stop
D. Mud viscosity is too low and needs immediate thinning with water only
Correct Answer: B
Rationale: Rising torque, higher pump pressure, reduced returns, and slower penetration commonly indicate annular restriction from a mud ring
or packed cuttings. Increasing bit weight alone does not address circulation blockage; impermeability is not the primary interpretation of these
signs; thinning mud without clearing the blockage can worsen hole conditions.
Q3
A crew is mobilizing a truck-mounted rotary rig to a site with limited overhead clearance under power lines. The mast
must be raised for drilling. What is the most critical pre-raise control measure specific to this hazard?
A. Increase mud weight before raising the mast
B. Confirm line location and voltage, maintain required clearance distances, and use a spotter or insulated boom procedures
as applicable
C. Raise the mast fully then measure clearance after it is vertical
D. Disconnect all electrical systems on the rig before any movement
Correct Answer: B
Rationale: Overhead power lines present electrocution and arc hazards. Clearance distances, utility notification, and controlled raising with a
spotter are mandatory safety steps. Mud weight is unrelated to electrical clearance; raising first then measuring is reactive and dangerous; total
electrical disconnect does not address contact with external lines.
NGWA GENERAL DRILLING EXAM 2026/2027 Page 2
