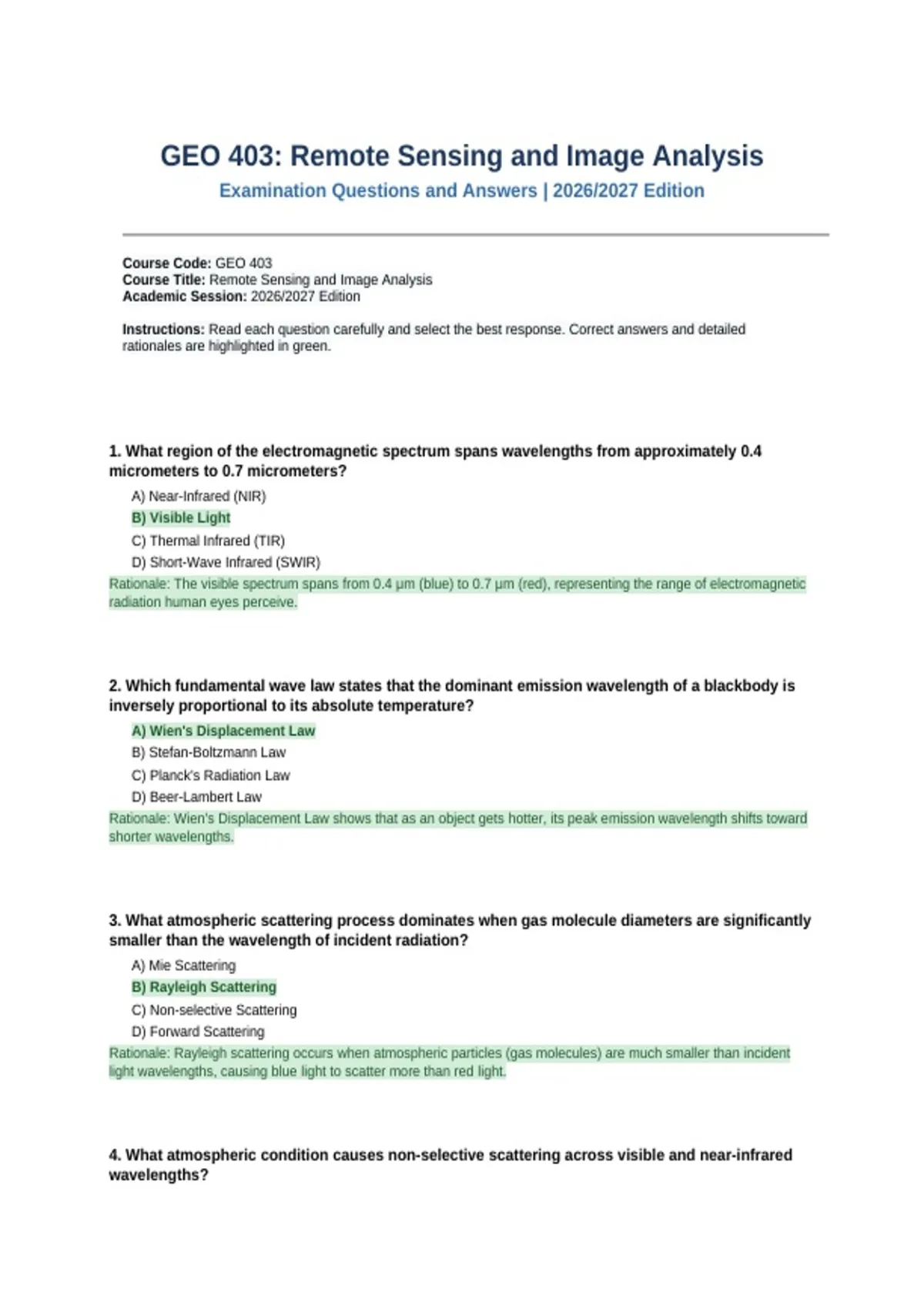

GEO 403: Remote Sensing and Image Analysis
Examination Questions and Answers | 2026/2027 Edition
Course Code: GEO 403
Course Title: Remote Sensing and Image Analysis
Academic Session: 2026/2027 Edition
Instructions: Read each question carefully and select the best response. Correct answers and detailed
rationales are highlighted in green.
1. What region of the electromagnetic spectrum spans wavelengths from approximately 0.4
micrometers to 0.7 micrometers?
A) Near-Infrared (NIR)
B) Visible Light
C) Thermal Infrared (TIR)
D) Short-Wave Infrared (SWIR)
Rationale: The visible spectrum spans from 0.4 μm (blue) to 0.7 μm (red), representing the range of electromagnetic
radiation human eyes perceive.
2. Which fundamental wave law states that the dominant emission wavelength of a blackbody is
inversely proportional to its absolute temperature?
A) Wien's Displacement Law
B) Stefan-Boltzmann Law
C) Planck's Radiation Law
D) Beer-Lambert Law
Rationale: Wien's Displacement Law shows that as an object gets hotter, its peak emission wavelength shifts toward
shorter wavelengths.
3. What atmospheric scattering process dominates when gas molecule diameters are significantly
smaller than the wavelength of incident radiation?
A) Mie Scattering
B) Rayleigh Scattering
C) Non-selective Scattering
D) Forward Scattering
Rationale: Rayleigh scattering occurs when atmospheric particles (gas molecules) are much smaller than incident
light wavelengths, causing blue light to scatter more than red light.
4. What atmospheric condition causes non-selective scattering across visible and near-infrared
wavelengths?
, A) High concentration of fine nitrogen molecules
B) Water droplets and large dust particles significantly larger than incident light wavelengths
C) Low relative humidity in dry desert basins
D) Solar elevation angles exceeding 85 degrees
Rationale: Non-selective scattering happens when atmospheric particles (like cloud water droplets) are larger than
light wavelengths, scattering all visible wavelengths equally and causing clouds to look white.
5. Atmospheric windows are spectral regions where electromagnetic radiation passes through the
atmosphere with:
A) Minimal absorption by atmospheric gases
B) Complete attenuation by ozone molecules
C) Total reflection back into outer space
D) Maximum Rayleigh scattering interference
Rationale: Atmospheric windows are wavelength bands where atmospheric gases absorb minimal solar radiation,
allowing sensors to measure surface reflected or emitted energy.
6. Healthy green vegetation exhibits high reflectance in near-infrared (NIR) wavelengths primarily
due to light scattering within the:
A) Leaf Chlorophyll a pigments
B) Leaf Spongy Mesophyll tissue structure
C) Outer leaf cuticle wax layer
D) Plant root vascular system
Rationale: NIR energy passes through leaf upper layers and is strongly scattered within internal spongy mesophyll
cell structures, producing a sharp reflectance rise known as the "red edge."
7. Strong absorption bands at 1.4 micrometers and 1.9 micrometers in leaf reflectance spectra are
caused by:
A) Chlorophyll absorption
B) Leaf liquid water content
C) Soil organic matter content
D) Cellular nitrogen concentration
Rationale: Liquid water molecules absorb short-wave infrared energy at 1.4 μm and 1.9 μm, making these spectral
bands ideal for assessing plant water stress.
8. Clear, deep water bodies absorb most solar radiation, exhibiting peak reflectance in which
visible spectrum region?
A) Blue-Green region
B) Near-Infrared region
C) Short-Wave Infrared region
D) Thermal Infrared region
Rationale: Clear water absorbs longer wavelengths (red and NIR) rapidly within top surface layers, reflecting weakly
only in blue-green wavelengths.
