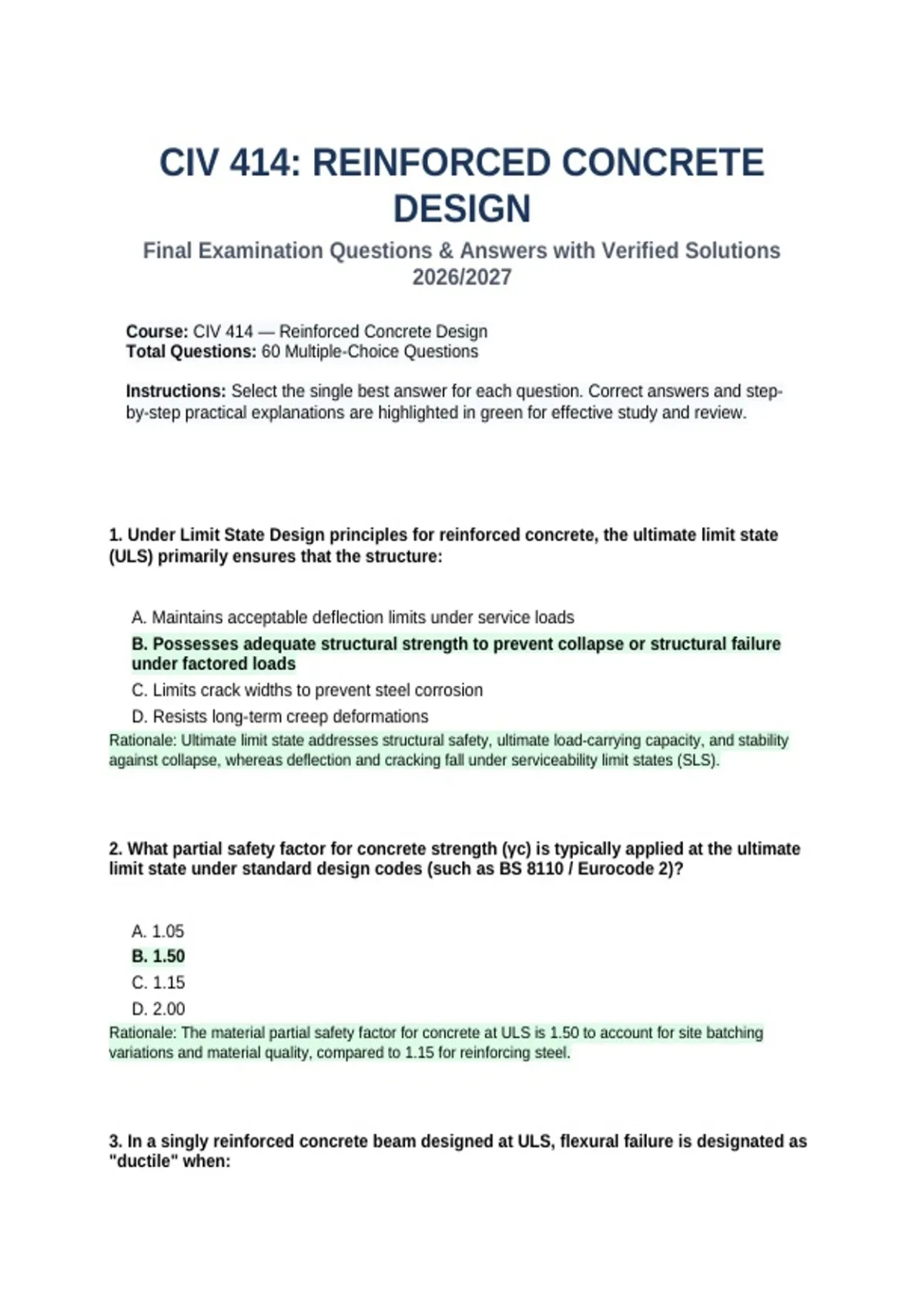

CIV 414: REINFORCED CONCRETE
DESIGN
Final Examination Questions & Answers with Verified Solutions
2026/2027
Course: CIV 414 — Reinforced Concrete Design
Total Questions: 60 Multiple-Choice Questions
Instructions: Select the single best answer for each question. Correct answers and step-
by-step practical explanations are highlighted in green for effective study and review.
1. Under Limit State Design principles for reinforced concrete, the ultimate limit state
(ULS) primarily ensures that the structure:
A. Maintains acceptable deflection limits under service loads
B. Possesses adequate structural strength to prevent collapse or structural failure
under factored loads
C. Limits crack widths to prevent steel corrosion
D. Resists long-term creep deformations
Rationale: Ultimate limit state addresses structural safety, ultimate load-carrying capacity, and stability
against collapse, whereas deflection and cracking fall under serviceability limit states (SLS).
2. What partial safety factor for concrete strength (γc) is typically applied at the ultimate
limit state under standard design codes (such as BS 8110 / Eurocode 2)?
A. 1.05
B. 1.50
C. 1.15
D. 2.00
Rationale: The material partial safety factor for concrete at ULS is 1.50 to account for site batching
variations and material quality, compared to 1.15 for reinforcing steel.
3. In a singly reinforced concrete beam designed at ULS, flexural failure is designated as
"ductile" when:
, A. Concrete crushes in compression before tensile reinforcement yields
B. Tensile reinforcement yields significantly before concrete reaches its ultimate
crushing strain
C. High-yield steel fractures without necking
D. Shear cracks propagate vertically at mid-span
Rationale: Under-reinforced sections yield in tension first, providing ample warning through cracking and
visible deflections prior to ultimate concrete crushing.
4. The equivalent rectangular stress block parameter for concrete in compression at ULS
assumes an effective uniform stress equal to:
A. 0.567 fck (or 0.67 fcu / 1.5)
B. 0.85 fck without safety factors
C. 1.00 fck
D. 0.35 fck
Rationale: Accounting for the concrete safety factor (1.5) and long-term sustained loading factor (0.85),
design compressive stress equals 0.85 * fck / 1.5 = 0.567 fck.
5. What is the maximum compressive strain in concrete in bending permitted at ULS
under Eurocode 2 (EC2)?
A. 0.0020
B. 0.0035
C. 0.0050
D. 0.0100
Rationale: Eurocode 2 specifies the ultimate compressive strain of concrete in flexure (εcu2) as 0.0035
(0.35%) for concrete classes up to C50/60.
6. To prevent brittle compression failure, standards limit the depth of the neutral axis (x)
in a singly reinforced rectangular beam section to approximately:
A. 0.95 d
B. 0.45 d to 0.50 d
C. 0.20 d
D. 0.75 d
Rationale: Limiting neutral axis depth x ≤ 0.45d (EC2) or 0.50d (BS 8110) ensures that
, tension steel yields before concrete crushes, ensuring under-reinforced ductile behavior.
7. Doubly reinforced rectangular beams are required when the applied ultimate bending
moment (M) exceeds:
A. The balanced moment capacity (Mu,lim) of a singly reinforced section
B. The cracking moment (Mcr) of uncracked concrete
C. Half of the plastic moment of resistance
D. The shear resistance of unreinforced web
Rationale: When applied moment exceeds the maximum moment capacity of a singly reinforced section
without exceeding neutral axis limits, compression steel is added to increase capacity ductiley.
8. In T-beam design, when the neutral axis lies within the flange (x ≤ hf),
the section is analyzed as:
A. A deep continuous web wall
B. A equivalent rectangular beam of width equal to the effective flange width (beff)
C. A web-dominated trapezoidal section
D. A pure shear-key block
Rationale: Since concrete below the neutral axis is cracked and ignored in tension, if compression zone
lies entirely inside the flange, the beam acts as a rectangular section of width beff.
9. Shear failure in reinforced concrete beams without web reinforcement is characterized
by:
A. Gradual yield necking of main longitudinal bars
B. Sudden, brittle diagonal tension cracking near supports
C. Slow plastic hinge formation at span center
D. Excessive horizontal creep deflection
Rationale: Diagonal tension cracks propagate rapidly across the web under high shear forces, causing
sudden brittle failure unless shear stirrups cross the crack path.
10. The primary purpose of providing vertical shear stirrups (links) in RC beams is to:
A. Resist diagonal tension stresses crossing inclined shear cracks
