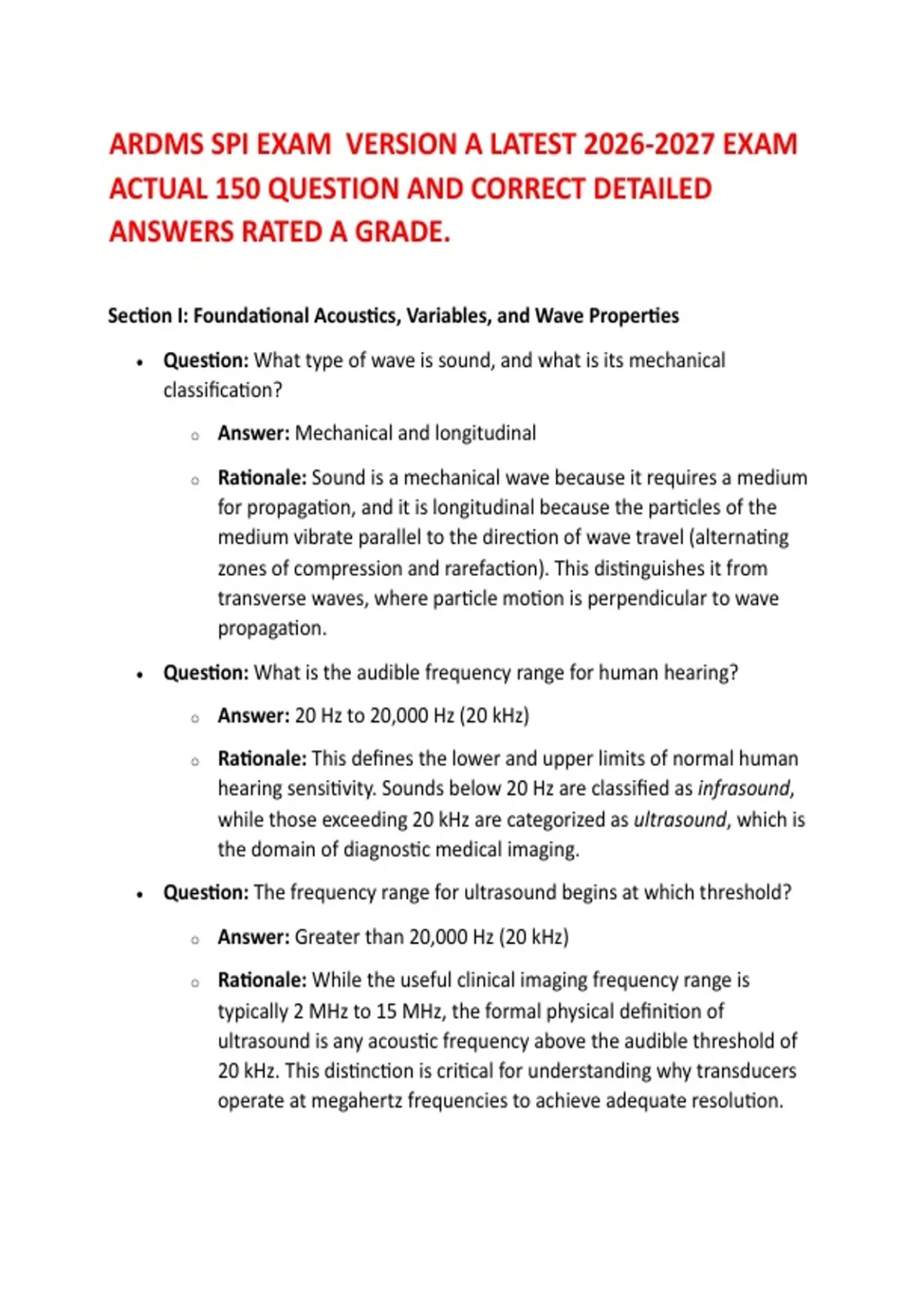

ARDMS SPI EXAM VERSION A LATEST 2026-2027 EXAM
ACTUAL 150 QUESTION AND CORRECT DETAILED
ANSWERS RATED A GRADE.
Section I: Foundational Acoustics, Variables, and Wave Properties
• Question: What type of wave is sound, and what is its mechanical
classification?
o Answer: Mechanical and longitudinal
o Rationale: Sound is a mechanical wave because it requires a medium
for propagation, and it is longitudinal because the particles of the
medium vibrate parallel to the direction of wave travel (alternating
zones of compression and rarefaction). This distinguishes it from
transverse waves, where particle motion is perpendicular to wave
propagation.
• Question: What is the audible frequency range for human hearing?
o Answer: 20 Hz to 20,000 Hz (20 kHz)
o Rationale: This defines the lower and upper limits of normal human
hearing sensitivity. Sounds below 20 Hz are classified as infrasound,
while those exceeding 20 kHz are categorized as ultrasound, which is
the domain of diagnostic medical imaging.
• Question: The frequency range for ultrasound begins at which threshold?
o Answer: Greater than 20,000 Hz (20 kHz)
o Rationale: While the useful clinical imaging frequency range is
typically 2 MHz to 15 MHz, the formal physical definition of
ultrasound is any acoustic frequency above the audible threshold of
20 kHz. This distinction is critical for understanding why transducers
operate at megahertz frequencies to achieve adequate resolution.
,• Question: What are the four primary acoustic variables that characterize a
sound wave?
o Answer: Temperature, density, particle motion, and pressure
o Rationale: These are the fundamental physical properties that
undergo periodic oscillations as a sound wave passes through a
medium. Pressure and particle motion are the most clinically relevant
for ultrasound imaging, as they directly relate to the generation of
echoes and the acoustic impedance of tissues.
• Question: Which of the following is the correct unit for pressure amplitude?
o Answer: Pascal (Pa)
o Rationale: The Pascal is the SI unit of pressure, defined as one
newton per square meter. In ultrasound physics, acoustic pressure
amplitude is a key determinant of intensity and potential bioeffects,
making it a vital parameter for safety calculations.
• Question: What is the average propagation speed of sound in human soft
tissue?
o Answer: 1,540 m/s (1.54 km/s; 1.54 mm/µs)
o Rationale: This standardized value (adopted by the AIUM) allows
ultrasound systems to calculate reflector depth accurately using the
range equation. Although actual speeds vary slightly among different
soft tissues (e.g., fat ~1,450 m/s, muscle ~1,580 m/s), 1,540 m/s is
the universal calibration standard.
• Question: Arrange the following media from the slowest to the fastest
propagation speed: Air, Bone, Fat, Muscle.
o Answer: Air → Fat → Muscle → Bone (slowest to fastest)
o Rationale: Propagation speed is determined by the medium's
stiffness and density (bulk modulus). Air is highly compressible and
has the slowest speed (~330 m/s), whereas bone, being extremely
stiff, conducts sound the fastest (~4,080 m/s). Fat and muscle occupy
, intermediate positions, with muscle being faster due to its higher
protein content and stiffness.
• Question: If the frequency of a transducer is doubled, what is the effect on
its wavelength?
o Answer: The wavelength decreases by one-half
o Rationale: Wavelength is inversely proportional to frequency (λ = c /
f). Since the propagation speed (c) is constant for a given tissue,
doubling the frequency halves the wavelength. This inverse
relationship is the basis for the trade-off between resolution (higher
frequency = better resolution) and penetration (lower frequency =
deeper penetration).
• Question: The wavelength of a 1 MHz transducer in soft tissue is
approximately?
o Answer: 1.54 mm (1. = 1.54 mm)
o Rationale: Applying the formula λ = c / f, where c = 1.54 mm/µs and f
= 1 MHz (1 cycle/µs), yields 1.54 mm per cycle. This foundational
calculation helps sonographers predict resolution capabilities and
artifact appearances.
• Question: What is the wavelength of a 5.0 MHz pulse in a medium with a
propagation speed of 1.5 mm/µs?
o Answer: 0.3 mm
o Rationale: λ = 1.5 mm/µs / 5.0 MHz = 0.3 mm. Recognizing that
higher frequencies produce shorter wavelengths is essential for
understanding why 5 MHz transducers provide superior axial
resolution compared to lower-frequency probes.
• Question: What is the unit of duty factor, and what are its possible numeric
limits?
o Answer: Unitless; the maximum value is 1.0 (for CW Doppler) and the
minimum is 0 (when the system is off).
