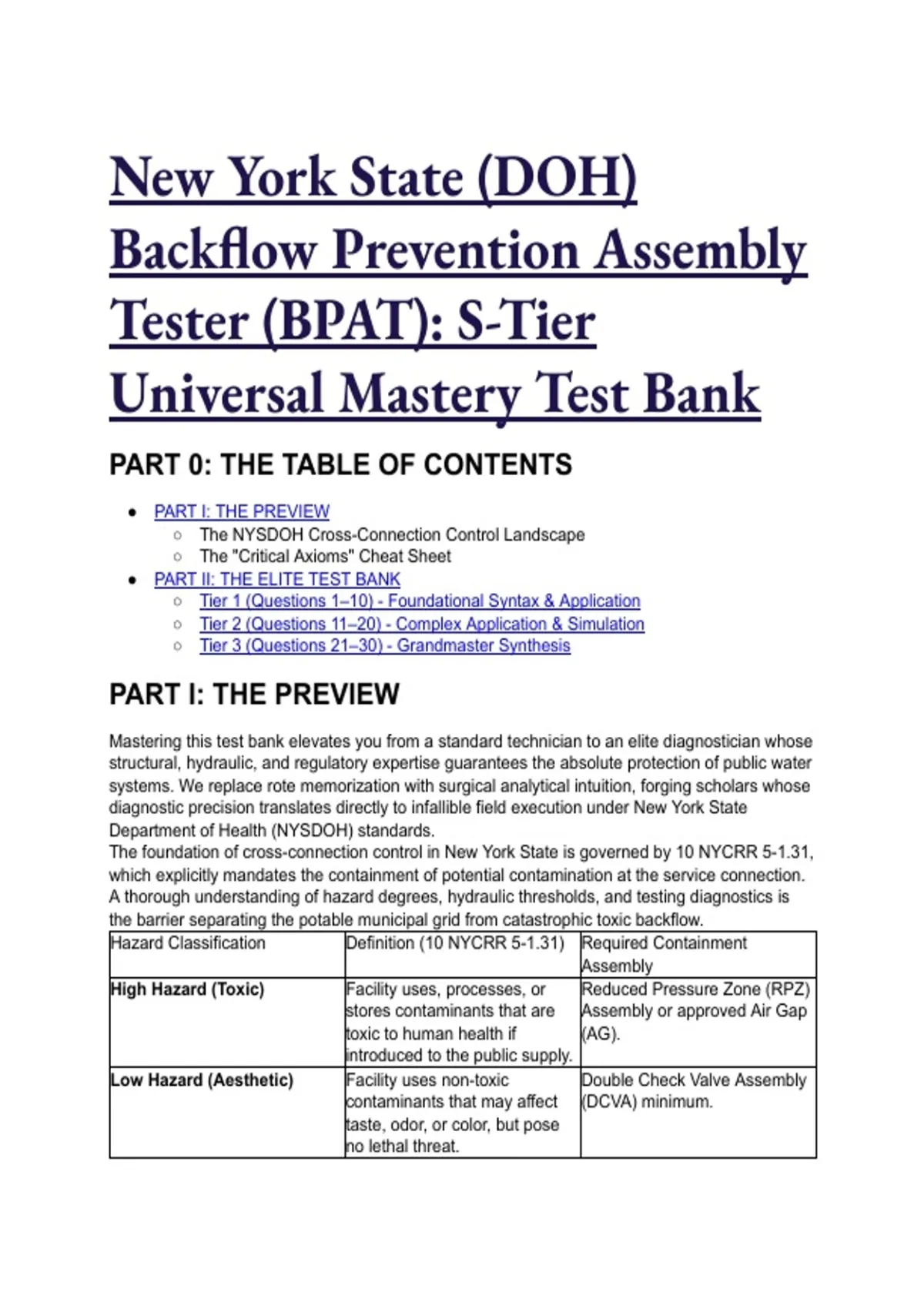

New York State (DOH)
Backflow Prevention Assembly
Tester (BPAT): S-Tier
Universal Mastery Test Bank
PART 0: THE TABLE OF CONTENTS
● PART I: THE PREVIEW
○ The NYSDOH Cross-Connection Control Landscape
○ The "Critical Axioms" Cheat Sheet
● PART II: THE ELITE TEST BANK
○ Tier 1 (Questions 1–10) - Foundational Syntax & Application
○ Tier 2 (Questions 11–20) - Complex Application & Simulation
○ Tier 3 (Questions 21–30) - Grandmaster Synthesis
PART I: THE PREVIEW
Mastering this test bank elevates you from a standard technician to an elite diagnostician whose
structural, hydraulic, and regulatory expertise guarantees the absolute protection of public water
systems. We replace rote memorization with surgical analytical intuition, forging scholars whose
diagnostic precision translates directly to infallible field execution under New York State
Department of Health (NYSDOH) standards.
The foundation of cross-connection control in New York State is governed by 10 NYCRR 5-1.31,
which explicitly mandates the containment of potential contamination at the service connection.
A thorough understanding of hazard degrees, hydraulic thresholds, and testing diagnostics is
the barrier separating the potable municipal grid from catastrophic toxic backflow.
Hazard Classification Definition (10 NYCRR 5-1.31) Required Containment
Assembly
High Hazard (Toxic) Facility uses, processes, or Reduced Pressure Zone (RPZ)
stores contaminants that are Assembly or approved Air Gap
toxic to human health if (AG).
introduced to the public supply.
Low Hazard (Aesthetic) Facility uses non-toxic Double Check Valve Assembly
contaminants that may affect (DCVA) minimum.
taste, odor, or color, but pose
no lethal threat.
,Installation Clearance Standards NYSDOH Mandated Parameters
Centerline Height 30 inches to 60 inches above the finished floor.
Heights exceeding 60 inches require an
OSHA-approved fixed platform.
Relief Valve to Floor (RPZ) Minimum of 18 inches of clearance to prevent
submersion during catastrophic failure.
Frontal / Rear Clearance 30 inches minimum clear space in front; 8
inches minimum clearance behind the device.
ASSE 1064 Gauge Calibration Diagnostic Instrumentation Parameters
Differential Gauge Accuracy Must possess an accuracy of ± 0.2 psid (± 1.4
kPa) on descending pressure.
Line Pressure Resolution Must resolve line pressure to 5.0 psi (34.5 kPa)
with ASME B40.100 Grade C accuracy.
● The "Critical Axioms" Cheat Sheet:
○ The Hazard/Containment Law: High Hazard requires a Reduced Pressure Zone
(RPZ) assembly or Air Gap (AG). Low Hazard (Aesthetically Objectionable)
requires a minimum of a Double Check Valve Assembly (DCVA).
○ The Hydraulic Thresholds: For an RPZ, Check Valve #1 must hold a minimum of
5.0 psid; the Differential Pressure Relief Valve must open at no less than 2.0 psid.
For a PVB, the air inlet and check valve must hold at 1.0 psid minimum.
○ The Clearance Imperative: RPZ assemblies demand an 18-inch minimum
clearance from the relief valve to the floor, 30 inches of frontal clearance, and
gravitational drainage strictly prohibiting direct sewer connections.
○ The Bypass Anomaly: Type I Detector Assemblies utilize dual check bypasses;
Type II Detector Assemblies (RPDA-II, DCDA-II) utilize a single check bypass
requiring a 1.0 psid minimum holding pressure in the direction of flow.
○ The DOH-1013 Mandate: An installation is void without a DOH-1013 form. Part A is
executed by the Certified Tester; Part B is executed exclusively by the Design
Engineer/Architect upon initial installation.
PART II: THE ELITE TEST BANK
Tier 1 (Questions 1–10) - Foundational Syntax & Application
Q1: A newly constructed industrial chemical mixing plant is preparing to connect to the
municipal water supply. The facility utilizes toxic chemical additives in its process lines. Based
on the principles of the NYSDOH Cross-Connection Control Manual, which containment action
is the MOST APPROPRIATE? A) Install a Double Check Valve Assembly (DCVA) because the
facility poses an aesthetically objectionable risk. B) Install a Pressure Vacuum Breaker (PVB) to
protect against severe backpressure and backsiphonage. C) Install a Reduced Pressure Zone
(RPZ) assembly or an approved Air Gap (AG) immediately at the service connection. D) Install a
Double Check Detector Assembly (DCDA) to monitor unauthorized water usage while providing
sufficient protection.
● Answer: C (Install a Reduced Pressure Zone (RPZ) assembly or an approved Air Gap
(AG) immediately at the service connection.)
, ● Distractor Analysis:
○ A is incorrect: Chemical additives unequivocally classify the facility as a High
Hazard (toxic), not Aesthetically Objectionable (Low Hazard). NYSDOH code
strictly prohibits the use of a DCVA for toxic containment.
○ B is incorrect: A PVB is engineered exclusively to protect against backsiphonage. It
is not rated to protect against backpressure, which can easily occur in
high-pressure industrial pumping applications.
○ D is incorrect: A DCDA is designated exclusively for low-hazard fire systems.
Utilizing it for a toxic chemical hazard constitutes a catastrophic violation of the
containment principle.
The Mentor's Analysis: High hazard applications dictate high-tier containment. When facing
severe toxic contamination risks, the immediate priority is absolute isolation of the municipal
supply. By utilizing an RPZ or Air Gap, you bypass the common trap of under-protecting against
unmeasured backpressure. Professional/Academic Intuition: Never apply a DCVA to a
health hazard; an RPZ or Air Gap is the absolute minimum legal standard.
Q2: A contractor is mounting a 2-inch RPZ backflow preventer inside a mechanical utility room.
Based on the principles of NYSDOH Clearance Standards, which spatial orientation is
UNEQUIVOCALLY CORRECT? A) Centerline height of 24 inches above the floor to ensure
aesthetic concealment and weight distribution. B) Centerline height between 30 and 60 inches,
with an 18-inch minimum clearance from the relief valve to the floor. C) Installed vertically with
flow pointing downward to utilize gravity for the relief valve discharge. D) Installed flush against
the back wall to maximize utility room space, maintaining a 2-inch clearance.
● Answer: B (Centerline height between 30 and 60 inches, with an 18-inch minimum
clearance from the relief valve to the floor.)
● Distractor Analysis:
○ A is incorrect: A 24-inch centerline height violates the 30 to 60-inch centerline
requirement, putting the relief valve dangerously close to the floor and risking
submersion.
○ C is incorrect: Vertical installations are strictly prohibited unless the specific
assembly make, model, and size are explicitly USC-approved for vertical
orientation.
○ D is incorrect: A minimum of 8 inches of rear clearance (and 30 inches of frontal
clearance) is legally mandated to allow for diagnostic testing and mechanical
maintenance.
The Mentor's Analysis: Clearance parameters exist to guarantee mechanical accessibility and
prevent submersion during catastrophic failure. When establishing the installation footprint, the
immediate priority is securing the 18-inch floor gap and the 30-to-60-inch centerline. By utilizing
Standardized Spatial Clearances, you bypass the common trap of creating untestable or
environmentally compromised hardware. Professional/Academic Intuition: An untestable
device is a useless device; clearances must satisfy both diagnostic access and
catastrophic drainage.
Q3: A certified tester completes the initial field test of a newly installed Double Check Valve
Assembly. Based on the principles of NYSDOH Regulatory Documentation, which sequence of
actions regarding Form DOH-1013 is the MOST ACCURATE? A) The tester completes Part A
and Part B, then submits the form exclusively to the building owner within 60 days. B) The tester
completes Part A, the installing plumber completes Part B, and the form is kept on-site for 3
years. C) The tester completes Part A, the Design Engineer/Architect completes Part B, and the
form is submitted to the water supplier and local health department within 45 days. D) The tester
