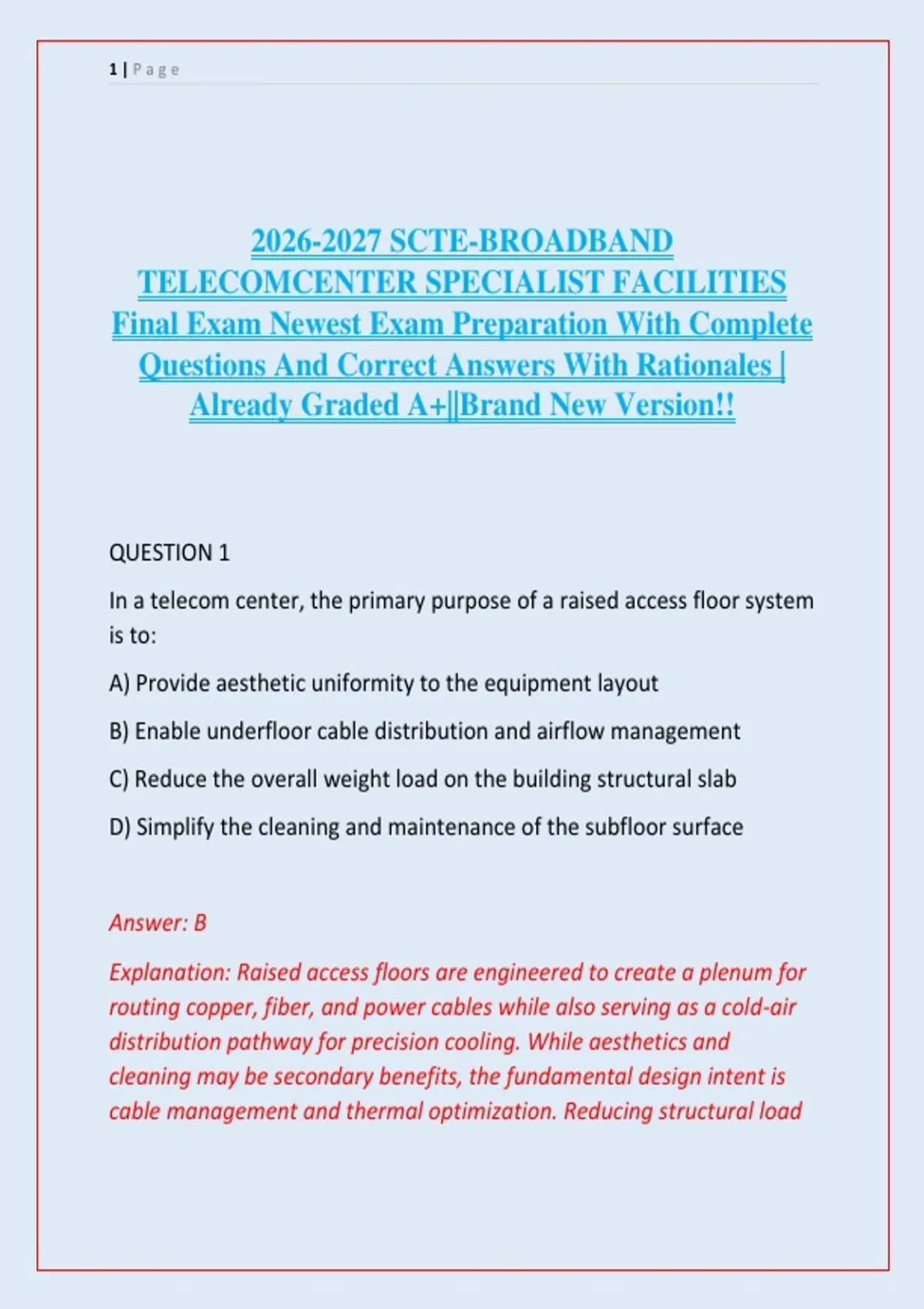

2026-2027 SCTE-BROADBAND
TELECOMCENTER SPECIALIST FACILITIES
Final Exam Newest Exam Preparation With Complete
Questions And Correct Answers With Rationales |
Already Graded A+||Brand New Version!!
QUESTION 1
In a telecom center, the primary purpose of a raised access floor system
is to:
A) Provide aesthetic uniformity to the equipment layout
B) Enable underfloor cable distribution and airflow management
C) Reduce the overall weight load on the building structural slab
D) Simplify the cleaning and maintenance of the subfloor surface
Answer: B
Explanation: Raised access floors are engineered to create a plenum for
routing copper, fiber, and power cables while also serving as a cold-air
distribution pathway for precision cooling. While aesthetics and
cleaning may be secondary benefits, the fundamental design intent is
cable management and thermal optimization. Reducing structural load
,2|Page
is incorrect because the raised floor adds dead load rather than
reducing it.
QUESTION 2
Which standard is most commonly referenced for telecommunications
infrastructure in commercial buildings?
A) ISO 9001
B) ANSI/TIA-942
C) IEEE 802.3
D) ITU-T G.709
Answer: B
Explanation: ANSI/TIA-942, "Telecommunications Infrastructure
Standard for Data Centers," provides comprehensive guidelines for
facility design, cabling, redundancy, and environmental controls. ISO
9001 addresses quality management; IEEE 802.3 defines Ethernet; ITU-T
G.709 covers optical transport network framing.
QUESTION 3
A telecom facility's uninterruptible power supply (UPS) system is rated
for 30 minutes at full load. This specification refers to:
A) The time until the batteries require replacement
B) The duration the UPS can support the critical load during a utility
outage
,3|Page
C) The maximum time allowed for generator startup and transfer
D) The recharge interval for the battery string
Answer: B
Explanation: The runtime rating of a UPS indicates the number of
minutes it can sustain the connected load from battery power alone.
This is a key parameter for bridging the gap between utility failure and
generator stabilization. Battery replacement cycles are measured in
years, not minutes, and generator startup is typically 10-15 seconds,
well under 30 minutes.
QUESTION 4
Which of the following is the correct nominal voltage for a standard 3-
phase, 4-wire, 208Y/120-volt electrical service?
A) Line-to-line voltage = 208 V; line-to-neutral voltage = 120 V
B) Line-to-line voltage = 120 V; line-to-neutral voltage = 208 V
C) Line-to-line voltage = 240 V; line-to-neutral voltage = 120 V
D) Line-to-line voltage = 480 V; line-to-neutral voltage = 277 V
Answer: A
Explanation: In a 208Y/120 service, the Y configuration provides 208
volts phase-to-phase and 120 volts phase-to-neutral. This is a common
distribution voltage for data centers and telecom centers in North
America. Option C describes a 120/240 split-phase service; option D
describes 480Y/277.
, 4|Page
QUESTION 5
In a typical telecom center, the "hot aisle/cold aisle" containment
strategy is primarily designed to:
A) Reduce electromagnetic interference between equipment racks
B) Improve the efficiency of the cooling system by separating supply
and return air
C) Increase the physical security of high-value network assets
D) Provide redundant pathways for fiber optic cabling
Answer: B
Explanation: Hot aisle/cold aisle containment optimizes airflow by
aligning equipment air intakes toward cold aisles and exhaust toward
hot aisles. This prevents mixing of hot and cold air, allowing the
computer room air conditioning (CRAC) units to operate at higher return
temperatures, improving sensible cooling capacity and overall energy
efficiency. It does not directly affect EMI, physical security, or cabling
pathways.
QUESTION 6
What is the maximum recommended relative humidity level for a class
1 telecom data center environment per ASHRAE guidelines?
A) 20%
B) 40%
C) 60%
