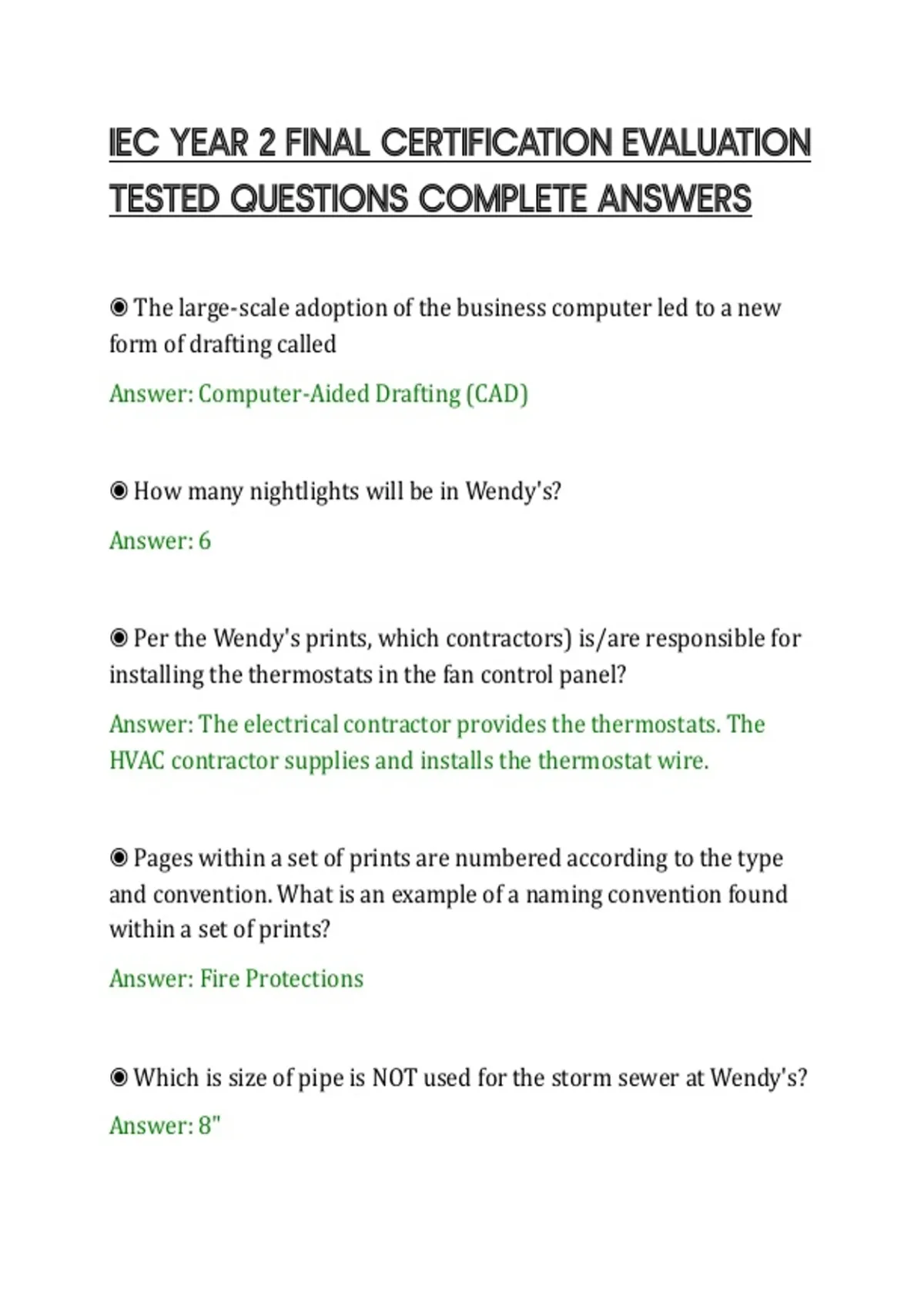

IEC YEAR 2 FINAL CERTIFICATION EVALUATION
TESTED QUESTIONS COMPLETE ANSWERS
◉ The large-scale adoption of the business computer led to a new
form of drafting called
Answer: Computer-Aided Drafting (CAD)
◉ How many nightlights will be in Wendy's?
Answer: 6
◉ Per the Wendy's prints, which contractors) is/are responsible for
installing the thermostats in the fan control panel?
Answer: The electrical contractor provides the thermostats. The
HVAC contractor supplies and installs the thermostat wire.
◉ Pages within a set of prints are numbered according to the type
and convention. What is an example of a naming convention found
within a set of prints?
Answer: Fire Protections
◉ Which is size of pipe is NOT used for the storm sewer at Wendy's?
Answer: 8"
,◉ Per the Veterinary Center prints, pull stations shall be
installed______ from all exit doors
Answer: 5 feet
◉ Per the Veterinary Center prints, which room does NOT have an
occupancy sensor?
Answer: Mechanical Room
◉ Which of the following is the MasterFormat 95A® spec division
for electrical?
Answer: 16
◉ For the Veterinary Center project, what is the diameter of the pole
bases for the parking lot lighting?
Answer: 24"
◉ The footing and column schedules are found on which Veterinary
Center drawing?
Answer: Foundation Plan S-02
◉ What kind of notes relate to an entire sheet or set of drawings?
Answer: General Notes
,◉ Which of the following statements, that exceed code, are possible
specifications of a particular project?
Answer: All are possible to be found in the specifications.
◉ How many rooftop units (RTU's) are at the Veterinary Center?
Answer: 7
◉ On Wendy's Restaurant Sheet E-3, the receptacle heights shown
are ____
Answer: Center of the box
◉ For the Wendy's Restaurant project, which of the symbols above
represents a Type C site light?
Answer: III
◉ What are the actual dimensions of a nominal 2 x 6?
Answer: 1 1/2" x 5 1/2"
◉ What is the scale of the Veterinary Center Topographical Survey?
Answer: 1"= 20'
, ◉ What size conductors feed the illuminated sign (from LP2 5tc)
near the entrance to the Veterinary Center?
Answer: 2 #8, 1 #10
◉ he wall between Bath and the Drying Room in the Veterinary
Center is a CMU partition wall. The wall will be supported at the top
with steel angle screwed to the deck every
Answer: 4 feet
◉ On the Veterinary Center drawings, the F-2 fixtures shown with
hash marks are ____
Answer: Unswitched
◉ Per the Veterinary Center prints, what is the ceiling height in the
Cat Boarding room?
Answer: 9'
◉ In the Veterinary Center, which unit provides heat for Vestibule
144?
Answer: EWH3
◉ Per the Veterinary Center prints, a receptacle shall be provided
within _____ feet of HVAC equipment.
Answer: 25
