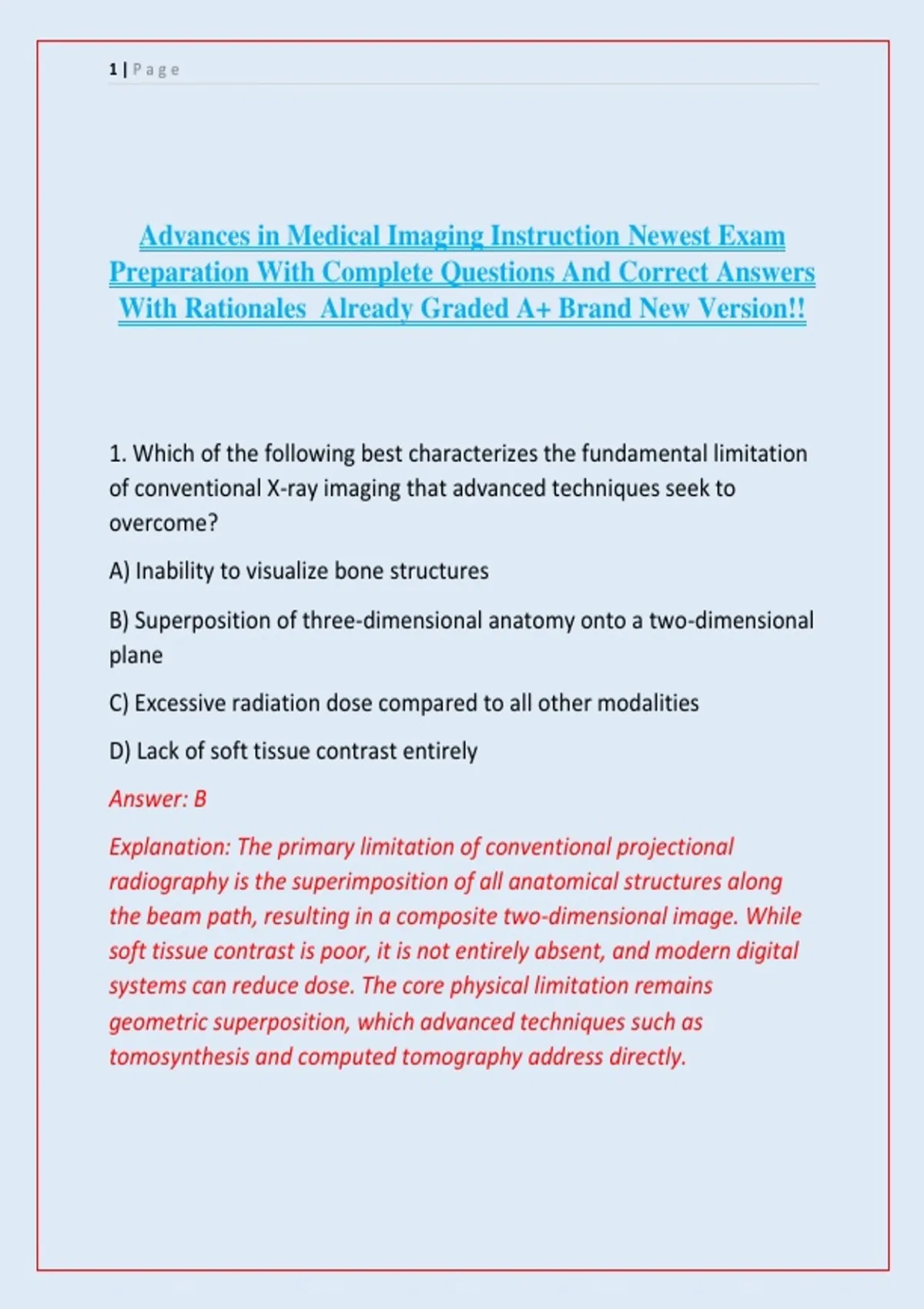

1|Page
Advances in Medical Imaging Instruction Newest Exam
Preparation With Complete Questions And Correct Answers
With Rationales Already Graded A+ Brand New Version!!
1. Which of the following best characterizes the fundamental limitation
of conventional X-ray imaging that advanced techniques seek to
overcome?
A) Inability to visualize bone structures
B) Superposition of three-dimensional anatomy onto a two-dimensional
plane
C) Excessive radiation dose compared to all other modalities
D) Lack of soft tissue contrast entirely
Answer: B
Explanation: The primary limitation of conventional projectional
radiography is the superimposition of all anatomical structures along
the beam path, resulting in a composite two-dimensional image. While
soft tissue contrast is poor, it is not entirely absent, and modern digital
systems can reduce dose. The core physical limitation remains
geometric superposition, which advanced techniques such as
tomosynthesis and computed tomography address directly.
,2|Page
2. Digital radiography (DR) has largely replaced film-screen radiography
primarily because DR offers:
A) Higher spatial resolution in all clinical applications
B) Lower initial equipment costs
C) A linear response over a wide dynamic range with post-acquisition
processing capabilities
D) Elimination of all motion artifacts
Answer: C
Explanation: DR systems provide a linear, wide dynamic range response
to incident X-ray photons, enabling post-acquisition windowing,
leveling, and image processing without repeat exposures. While spatial
resolution can be comparable or slightly inferior to high-resolution film,
the dynamic range and immediate availability are key advantages. DR
does not eliminate motion artifacts, nor is it universally lower in cost.
3. The introduction of flat-panel detectors based on amorphous silicon
or amorphous selenium represented a paradigm shift because they:
A) Directly convert X-rays to a digital signal without any intermediate
step
B) Allow for real-time fluoroscopy and radiography using the same
detector
C) Eliminate the need for a scintillator layer in all configurations
D) Operate exclusively in the mammographic energy range
Answer: B
,3|Page
Explanation: Flat-panel detectors, whether indirect (scintillator plus
photodiode array) or direct (photoconductor like selenium), provide
high-frame-rate digital acquisition. This versatility enables both static
radiography and dynamic fluoroscopy with the same detector platform,
a significant advancement over image intensifier-based systems. Direct
conversion detectors do not use a scintillator, but indirect systems do.
Their application extends well beyond mammography.
4. In the context of computed tomography (CT), the transition from
step-and-shoot axial scanning to helical (spiral) CT was most clinically
significant because it:
A) Reduced the need for intravenous contrast agents
B) Enabled the acquisition of a continuous volume of data during a
single breath-hold
C) Eliminated beam-hardening artifacts entirely
D) Increased the tube current without affecting patient dose
Answer: B
Explanation: Helical CT, introduced in the late 1980s, allows continuous
gantry rotation while the patient table moves, acquiring a volumetric
data set in a single breath-hold. This dramatically reduced respiratory
misregistration, improved small lesion detection, and enabled faster
scanning. It did not eliminate contrast use or beam-hardening artifacts,
and increased tube current generally increases dose unless modulated.
5. Multi-detector row CT (MDCT) further advanced imaging by:
A) Restricting the z-axis coverage to improve longitudinal resolution
, 4|Page
B) Enabling thinner collimation and greater anatomical coverage per
rotation
C) Eliminating the need for tube current modulation
D) Reducing image noise without altering any parameters
Answer: B
Explanation: MDCT uses multiple parallel detector rows, allowing
acquisition of multiple slices per gantry rotation. This enables thinner
individual slice thickness (improving z-axis resolution) while covering a
larger anatomical range in less time. Tube current modulation remains
an important dose-reduction strategy, and noise is not inherently
reduced without compensatory adjustments.
6. Dual-energy CT (DECT) provides material differentiation beyond
conventional CT by:
A) Acquiring images at two different tube voltages and exploiting
differential photoelectric and Compton attenuation
B) Using two separate X-ray tubes that fire simultaneously at the same
energy
C) Reconstructing images based solely on the Compton scattering effect
D) Eliminating all calcium-containing structures from the final image
Answer: A
Explanation: DECT typically acquires data at low (e.g., 80 kVp) and high
(e.g., 140 kVp) tube voltages. The photoelectric effect predominates at
lower energies and varies strongly with atomic number (Z), allowing
separation of materials such as iodine, calcium, and uric acid based on
their distinct attenuation behavior. Compton scattering is relatively
