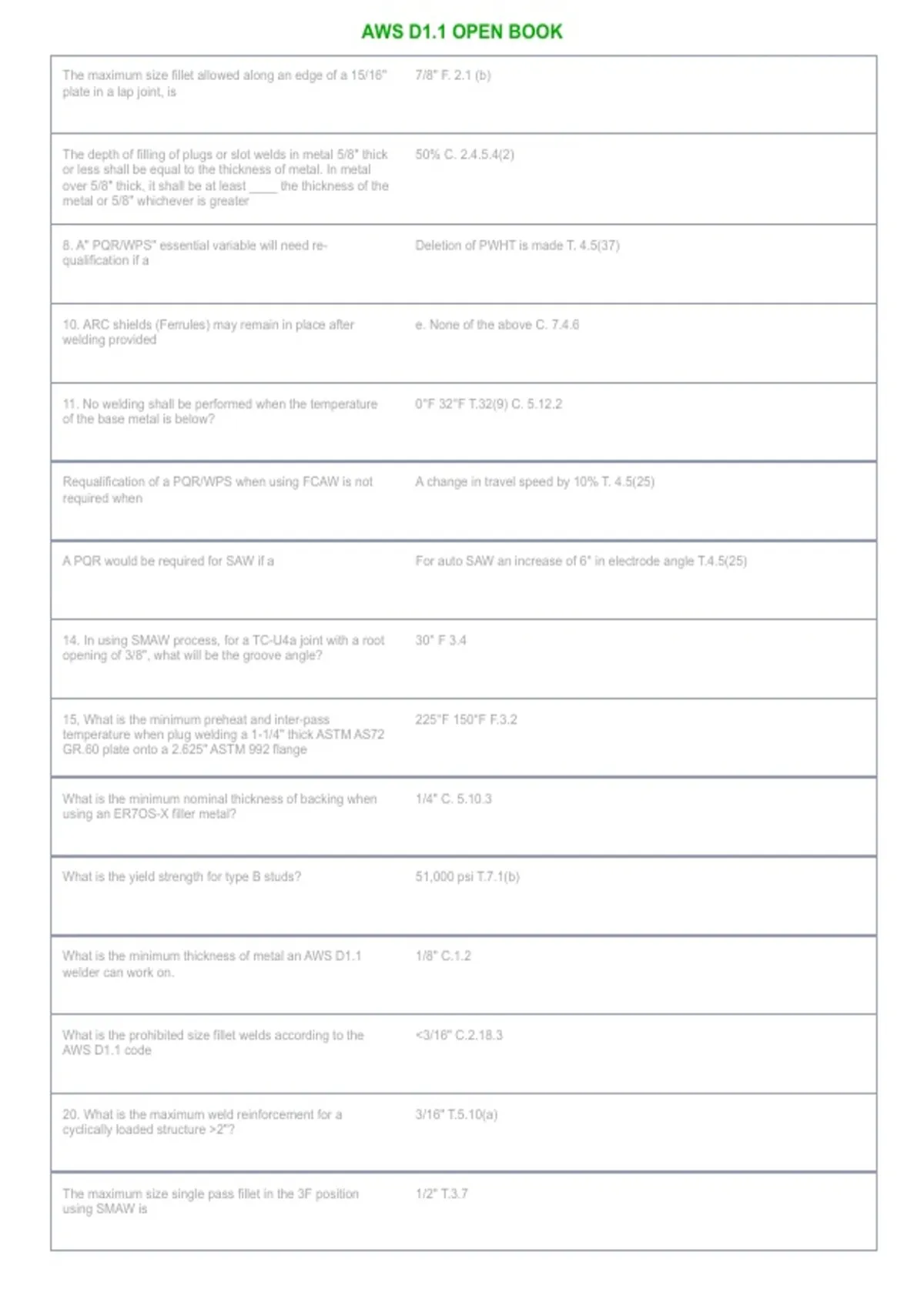

AWS D1.1 OPEN BOOK
The maximum size fillet allowed along an edge of a 15/16" 7/8" F. 2.1 (b)
plate in a lap joint, is
The depth of filling of plugs or slot welds in metal 5/8" thick 50% C. 2.4.5.4(2)
or less shall be equal to the thickness of metal. In metal
over 5/8" thick, it shall be at least ____ the thickness of the
metal or 5/8" whichever is greater
8. A" PQR/WPS" essential variable will need re- Deletion of PWHT is made T. 4.5(37)
qualification if a
10. ARC shields (Ferrules) may remain in place after e. None of the above С. 7.4.6
welding provided
11. No welding shall be performed when the temperature 0°F 32°F T.32(9) C. 5.12.2
of the base metal is below?
Requalification of a PQR/WPS when using FCAW is not A change in travel speed by 10% T. 4.5(25)
required when
A PQR would be required for SAW if a For auto SAW an increase of 6° in electrode angle T.4.5(25)
14. In using SMAW process, for a TC-U4a joint with a root 30° F 3.4
opening of 3/8", what will be the groove angle?
15, What is the minimum preheat and inter-pass 225°F 150°F F.3.2
temperature when plug welding a 1-1/4" thick ASTM AS72
GR.60 plate onto a 2.625" ASTM 992 flange
What is the minimum nominal thickness of backing when 1/4" C. 5.10.3
using an ER7OS-X filler metal?
What is the yield strength for type B studs? 51,000 psi T.7.1(b)
What is the minimum thickness of metal an AWS D1.1 1/8" C.1.2
welder can work on.
What is the prohibited size fillet welds according to the <3/16" C.2.18.3
AWS D1.1 code
20. What is the maximum weld reinforcement for a 3/16" T.5.10(a)
cyclically loaded structure >2"?
The maximum size single pass fillet in the 3F position 1/2" T.3.7
using SMAW is
, AWS D1.1 OPEN BOOK
The AWS D1.1 structure welding code is not intended to 100 KSI C.1.2
be used for steel with the minimum specified yield strength
greater than
When connecting two 1.25" plates with a "CJP" butt weld, 3/16" T.5.10
the maximum groove weld reinforcement is
When the required is preheat when welding A3/4" thick 150 F T.3.2
ASTM A53 grade B pipe to an ASTM A-36 1.5" thick base
plates with E6010?
When is the required slope in a butt-joint transition? 1" - 2 1/2" C.2.17.1.1
The maximum size fillet allowed along an edge of a 15/16" 7/8" F.2.1(B)
plate in a lap joint, is
The depth of filling of plugs or slot welds in metal 5/8" thick 50% C.2.4.5.4(2)
or less shall be equal to the thickness of metal. In metal
over 5/8" thick, it shall be at least the thickness of the
metal or 5/8" whichever is greater
8. A" POR/WPS" essential variable will need re- Deletion of PWHT is made т.4.5(37)
qualification if a(using FCAW)
When welding A 1.25" thick ASTM A36 plate to A 3/4" 5/16" T. 5.8
ASTM A992 column flange, what is the minimum fillet weld
size.
ARC shields (Ferrules) may remain in place after welding They never permitted to remain C.7.4.6
provided
11. No welding shall be performed when the temperature 32°F T.3.2(9)
of the base metal is below?
Requalification of a PQR/WPS when using FCAW is not A change in travel speed by 10% T.4.5(18)
required when
A PQR would be required for SAW if a For auto SAW an increase of 6°F in electrode angle T.4.5(25)
In using SMAW process, for a TC-U4a joint with a root 30° F.3.4
opening of 3/8", what will be the groove angle?
What is the minimum preheat and inter-pass temperature 150°F T.3.2
when plug welding a 1-1/4" thick ASTM A572 GR.60 plate
onto a 2.625" ASTM 992 flange
What is the minimum nominal thickness of backing when 3/16 C.5.10.3
using an ER70S-X filler metal?
The maximum size fillet allowed along an edge of a 15/16" 7/8" F. 2.1 (b)
plate in a lap joint, is
The depth of filling of plugs or slot welds in metal 5/8" thick 50% C. 2.4.5.4(2)
or less shall be equal to the thickness of metal. In metal
over 5/8" thick, it shall be at least ____ the thickness of the
metal or 5/8" whichever is greater
8. A" PQR/WPS" essential variable will need re- Deletion of PWHT is made T. 4.5(37)
qualification if a
10. ARC shields (Ferrules) may remain in place after e. None of the above С. 7.4.6
welding provided
11. No welding shall be performed when the temperature 0°F 32°F T.32(9) C. 5.12.2
of the base metal is below?
Requalification of a PQR/WPS when using FCAW is not A change in travel speed by 10% T. 4.5(25)
required when
A PQR would be required for SAW if a For auto SAW an increase of 6° in electrode angle T.4.5(25)
14. In using SMAW process, for a TC-U4a joint with a root 30° F 3.4
opening of 3/8", what will be the groove angle?
15, What is the minimum preheat and inter-pass 225°F 150°F F.3.2
temperature when plug welding a 1-1/4" thick ASTM AS72
GR.60 plate onto a 2.625" ASTM 992 flange
What is the minimum nominal thickness of backing when 1/4" C. 5.10.3
using an ER7OS-X filler metal?
What is the yield strength for type B studs? 51,000 psi T.7.1(b)
What is the minimum thickness of metal an AWS D1.1 1/8" C.1.2
welder can work on.
What is the prohibited size fillet welds according to the <3/16" C.2.18.3
AWS D1.1 code
20. What is the maximum weld reinforcement for a 3/16" T.5.10(a)
cyclically loaded structure >2"?
The maximum size single pass fillet in the 3F position 1/2" T.3.7
using SMAW is
, AWS D1.1 OPEN BOOK
The AWS D1.1 structure welding code is not intended to 100 KSI C.1.2
be used for steel with the minimum specified yield strength
greater than
When connecting two 1.25" plates with a "CJP" butt weld, 3/16" T.5.10
the maximum groove weld reinforcement is
When the required is preheat when welding A3/4" thick 150 F T.3.2
ASTM A53 grade B pipe to an ASTM A-36 1.5" thick base
plates with E6010?
When is the required slope in a butt-joint transition? 1" - 2 1/2" C.2.17.1.1
The maximum size fillet allowed along an edge of a 15/16" 7/8" F.2.1(B)
plate in a lap joint, is
The depth of filling of plugs or slot welds in metal 5/8" thick 50% C.2.4.5.4(2)
or less shall be equal to the thickness of metal. In metal
over 5/8" thick, it shall be at least the thickness of the
metal or 5/8" whichever is greater
8. A" POR/WPS" essential variable will need re- Deletion of PWHT is made т.4.5(37)
qualification if a(using FCAW)
When welding A 1.25" thick ASTM A36 plate to A 3/4" 5/16" T. 5.8
ASTM A992 column flange, what is the minimum fillet weld
size.
ARC shields (Ferrules) may remain in place after welding They never permitted to remain C.7.4.6
provided
11. No welding shall be performed when the temperature 32°F T.3.2(9)
of the base metal is below?
Requalification of a PQR/WPS when using FCAW is not A change in travel speed by 10% T.4.5(18)
required when
A PQR would be required for SAW if a For auto SAW an increase of 6°F in electrode angle T.4.5(25)
In using SMAW process, for a TC-U4a joint with a root 30° F.3.4
opening of 3/8", what will be the groove angle?
What is the minimum preheat and inter-pass temperature 150°F T.3.2
when plug welding a 1-1/4" thick ASTM A572 GR.60 plate
onto a 2.625" ASTM 992 flange
What is the minimum nominal thickness of backing when 3/16 C.5.10.3
using an ER70S-X filler metal?
