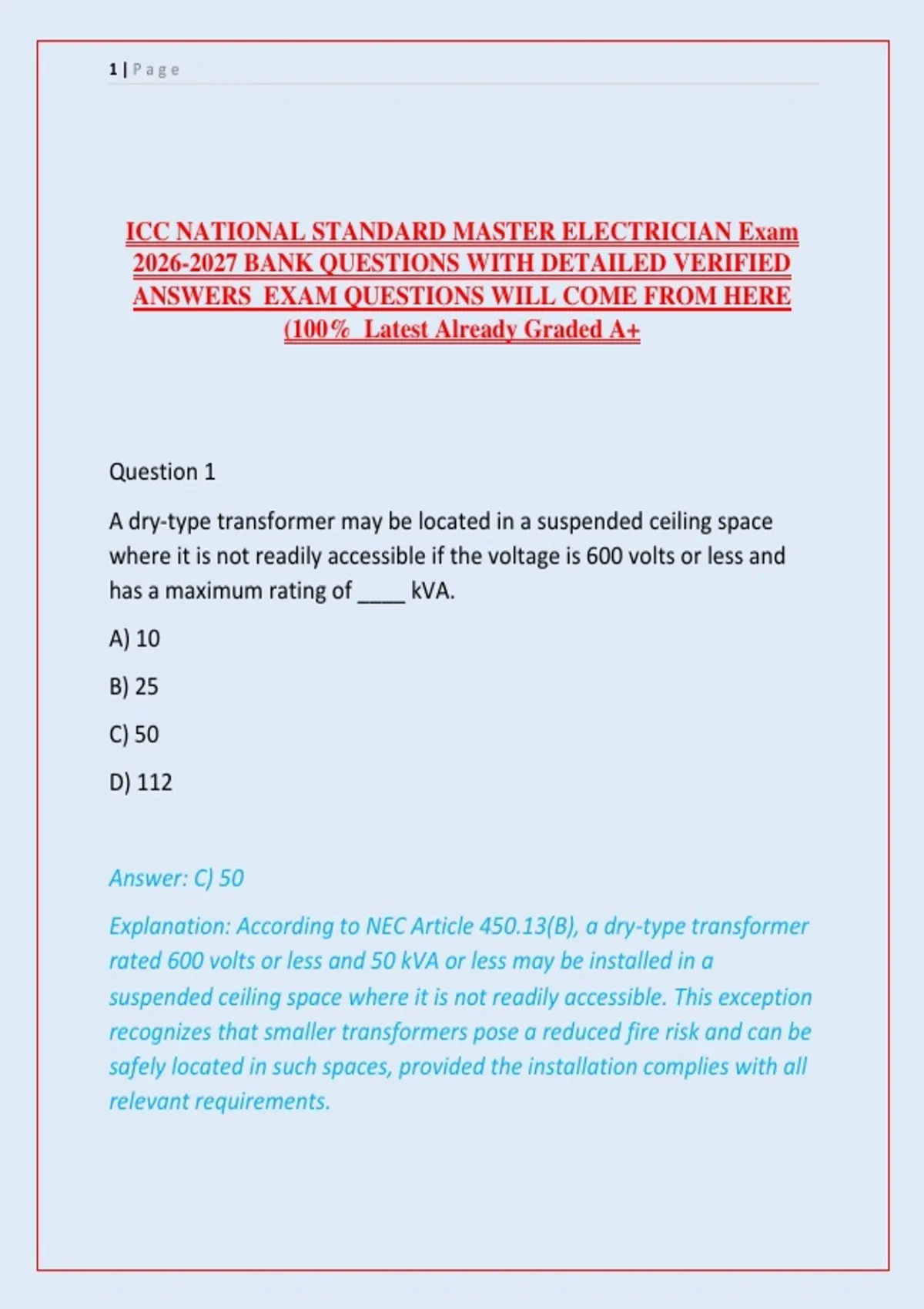

1|Page
ICC NATIONAL STANDARD MASTER ELECTRICIAN Exam
2026-2027 BANK QUESTIONS WITH DETAILED VERIFIED
ANSWERS EXAM QUESTIONS WILL COME FROM HERE
(100% Latest Already Graded A+
Question 1
A dry-type transformer may be located in a suspended ceiling space
where it is not readily accessible if the voltage is 600 volts or less and
has a maximum rating of ____ kVA.
A) 10
B) 25
C) 50
D) 112
Answer: C) 50
Explanation: According to NEC Article 450.13(B), a dry-type transformer
rated 600 volts or less and 50 kVA or less may be installed in a
suspended ceiling space where it is not readily accessible. This exception
recognizes that smaller transformers pose a reduced fire risk and can be
safely located in such spaces, provided the installation complies with all
relevant requirements.
,2|Page
Question 2
A service head can be located no further away from the point of
attachment than ____ inches.
A) 18
B) 24
C) 36
D) 48
Answer: B) 24
Explanation: NEC Article 230.54(C) requires that the service head be
located not more than 24 inches from the point of attachment. This
provision ensures that the service-drop conductors have adequate
support and that the service entrance is properly secured against
mechanical stress and weather-related damage.
Question 3
Acceptable methods of connecting grounding and bonding conductors
include all the following, EXCEPT:
A) Solder joints
B) Terminal bars
C) Exothermic weld
D) Listed pressure connectors
Answer: A) Solder joints
,3|Page
Explanation: NEC Article 250.8(A) explicitly prohibits the use of solder
for connecting grounding and bonding conductors, as solder can melt
under fault conditions, compromising the grounding path. Terminal
bars, exothermic welds, and listed pressure connectors are all approved
methods that provide reliable, low-impedance connections.
Question 4
The amount of available fault current at the service depends upon the:
A) Method of bonding
B) Method of grounding
C) Size and impedance of the service transformer
D) Ampere rating of the overcurrent protection device
Answer: C) Size and impedance of the service transformer
Explanation: The available fault current is fundamentally determined by
the characteristics of the utility supply, particularly the size and
impedance of the service transformer. This is a foundational electrical
engineering principle, as the transformer's kVA rating and percent
impedance directly limit the maximum short-circuit current that can
flow. Grounding and bonding methods affect fault clearing but do not
determine the magnitude of available fault current.
Question 5
, 4|Page
Given two separate services identical in voltage and amperage, except
one serves only motor loads and the other serves only lighting loads, in
the event of a short circuit, the available short-circuit current will be:
A) The same in either service
B) Higher in the motor-load service
C) Higher in the lighting-load service
D) 25% greater in the service for the motor load
Answer: A) The same in either service
Explanation: The available short-circuit current is determined by the
utility source and the impedance of the service conductors, not by the
type of load served. Motor loads do contribute to fault current through
motor contribution, but the initial available fault current from the utility
remains the same regardless of whether the load is lighting or motors.
Question 6
A device that requires a portable ladder for access, but does NOT
require removal of the structure, is defined as being:
A) Accessible
B) Unaccessible
C) Semi-accessible
D) Readily accessible
Answer: A) Accessible
ICC NATIONAL STANDARD MASTER ELECTRICIAN Exam
2026-2027 BANK QUESTIONS WITH DETAILED VERIFIED
ANSWERS EXAM QUESTIONS WILL COME FROM HERE
(100% Latest Already Graded A+
Question 1
A dry-type transformer may be located in a suspended ceiling space
where it is not readily accessible if the voltage is 600 volts or less and
has a maximum rating of ____ kVA.
A) 10
B) 25
C) 50
D) 112
Answer: C) 50
Explanation: According to NEC Article 450.13(B), a dry-type transformer
rated 600 volts or less and 50 kVA or less may be installed in a
suspended ceiling space where it is not readily accessible. This exception
recognizes that smaller transformers pose a reduced fire risk and can be
safely located in such spaces, provided the installation complies with all
relevant requirements.
,2|Page
Question 2
A service head can be located no further away from the point of
attachment than ____ inches.
A) 18
B) 24
C) 36
D) 48
Answer: B) 24
Explanation: NEC Article 230.54(C) requires that the service head be
located not more than 24 inches from the point of attachment. This
provision ensures that the service-drop conductors have adequate
support and that the service entrance is properly secured against
mechanical stress and weather-related damage.
Question 3
Acceptable methods of connecting grounding and bonding conductors
include all the following, EXCEPT:
A) Solder joints
B) Terminal bars
C) Exothermic weld
D) Listed pressure connectors
Answer: A) Solder joints
,3|Page
Explanation: NEC Article 250.8(A) explicitly prohibits the use of solder
for connecting grounding and bonding conductors, as solder can melt
under fault conditions, compromising the grounding path. Terminal
bars, exothermic welds, and listed pressure connectors are all approved
methods that provide reliable, low-impedance connections.
Question 4
The amount of available fault current at the service depends upon the:
A) Method of bonding
B) Method of grounding
C) Size and impedance of the service transformer
D) Ampere rating of the overcurrent protection device
Answer: C) Size and impedance of the service transformer
Explanation: The available fault current is fundamentally determined by
the characteristics of the utility supply, particularly the size and
impedance of the service transformer. This is a foundational electrical
engineering principle, as the transformer's kVA rating and percent
impedance directly limit the maximum short-circuit current that can
flow. Grounding and bonding methods affect fault clearing but do not
determine the magnitude of available fault current.
Question 5
, 4|Page
Given two separate services identical in voltage and amperage, except
one serves only motor loads and the other serves only lighting loads, in
the event of a short circuit, the available short-circuit current will be:
A) The same in either service
B) Higher in the motor-load service
C) Higher in the lighting-load service
D) 25% greater in the service for the motor load
Answer: A) The same in either service
Explanation: The available short-circuit current is determined by the
utility source and the impedance of the service conductors, not by the
type of load served. Motor loads do contribute to fault current through
motor contribution, but the initial available fault current from the utility
remains the same regardless of whether the load is lighting or motors.
Question 6
A device that requires a portable ladder for access, but does NOT
require removal of the structure, is defined as being:
A) Accessible
B) Unaccessible
C) Semi-accessible
D) Readily accessible
Answer: A) Accessible
