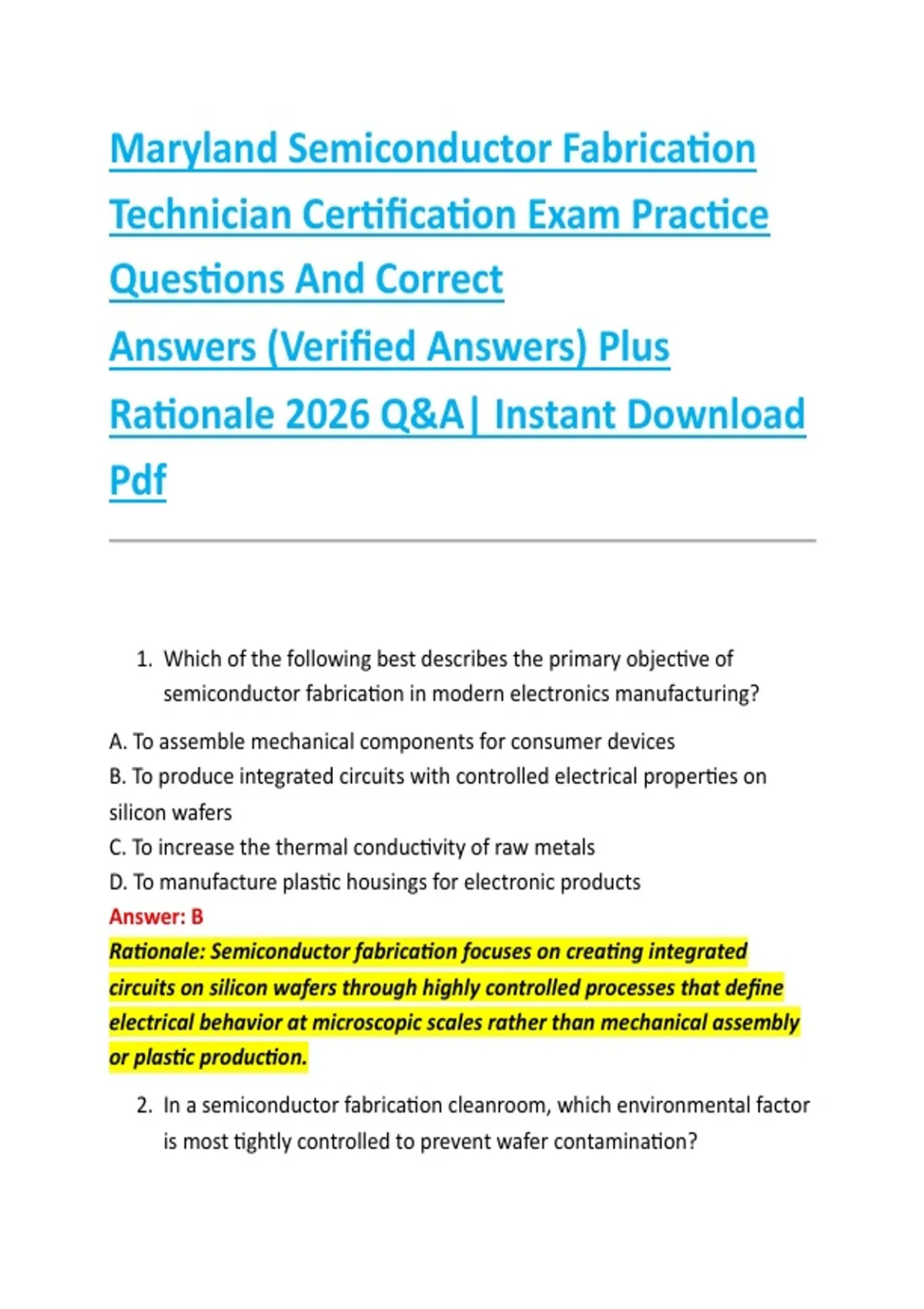

Maryland Semiconductor Fabrication
Technician Certification Exam Practice
Questions And Correct
Answers (Verified Answers) Plus
Rationale 2026 Q&A| Instant Download
Pdf
1. Which of the following best describes the primary objective of
semiconductor fabrication in modern electronics manufacturing?
A. To assemble mechanical components for consumer devices
B. To produce integrated circuits with controlled electrical properties on
silicon wafers
C. To increase the thermal conductivity of raw metals
D. To manufacture plastic housings for electronic products
Answer: B
Rationale: Semiconductor fabrication focuses on creating integrated
circuits on silicon wafers through highly controlled processes that define
electrical behavior at microscopic scales rather than mechanical assembly
or plastic production.
2. In a semiconductor fabrication cleanroom, which environmental factor
is most tightly controlled to prevent wafer contamination?
,A. Magnetic field strength
B. Atmospheric pressure only
C. Particulate concentration in the air
D. Ambient sound levels
Answer: C
Rationale: Cleanrooms are designed primarily to minimize airborne
particulate contamination because even microscopic dust can damage or
ruin semiconductor wafers during fabrication.
3. What is the primary function of photolithography in semiconductor
manufacturing?
A. To mechanically cut wafers into chips
B. To transfer circuit patterns onto a wafer using light-sensitive materials
C. To chemically purify silicon crystals
D. To measure electrical resistance of finished chips
Answer: B
Rationale: Photolithography uses light exposure through masks and
photoresist materials to define circuit patterns on silicon wafers.
4. Which material is most commonly used as the base substrate in
semiconductor device fabrication?
A. Copper
B. Silicon
C. Aluminum
D. Gold
Answer: B
Rationale: Silicon is the primary substrate in semiconductor manufacturing
due to its excellent semiconductor properties and abundance.
5. What is the purpose of doping in semiconductor fabrication?
,A. To increase wafer size
B. To introduce impurities that modify electrical conductivity
C. To polish wafer surfaces
D. To reduce thermal expansion
Answer: B
Rationale: Doping introduces controlled impurities such as phosphorus or
boron to change the electrical conductivity of silicon materials.
6. Which cleanroom classification indicates a higher level of cleanliness?
A. ISO Class 9
B. ISO Class 8
C. ISO Class 5
D. ISO Class 10
Answer: C
Rationale: Lower ISO cleanroom class numbers represent stricter
particulate control, making ISO Class 5 cleaner than higher-numbered
classes.
7. What is the primary role of etching in semiconductor processing?
A. To deposit metal wiring on wafers
B. To remove selected material to form circuit patterns
C. To measure wafer thickness
D. To increase wafer conductivity uniformly
Answer: B
Rationale: Etching selectively removes material from the wafer surface to
create precise circuit structures defined during lithography.
8. Which type of etching provides the most directionally controlled
removal of material?
A. Wet isotropic etching
B. Dry anisotropic etching
, C. Mechanical grinding
D. Thermal oxidation
Answer: B
Rationale: Dry anisotropic etching allows directional material removal,
producing sharper and more precise micro-scale features.
9. What is the main purpose of chemical vapor deposition (CVD)?
A. To measure electrical current in wafers
B. To deposit thin films of material onto a substrate
C. To slice wafers into chips
D. To test chip packaging durability
Answer: B
Rationale: CVD is used to form thin, uniform material layers on wafers
through chemical reactions in a controlled environment.
10. Which defect would most likely cause failure in a semiconductor
device?
A. Minor surface color variation
B. Microscopic particle contamination on a wafer
C. Slight change in wafer labeling
D. Variation in packaging box color
Answer: B
Rationale: Microscopic contamination can disrupt circuit pathways and
cause electrical failure in semiconductor devices.
11. What is the primary purpose of wafer oxidation in
semiconductor processing?
A. To increase wafer flexibility
B. To create a protective silicon dioxide layer
C. To improve packaging adhesion only
D. To reduce wafer diameter
