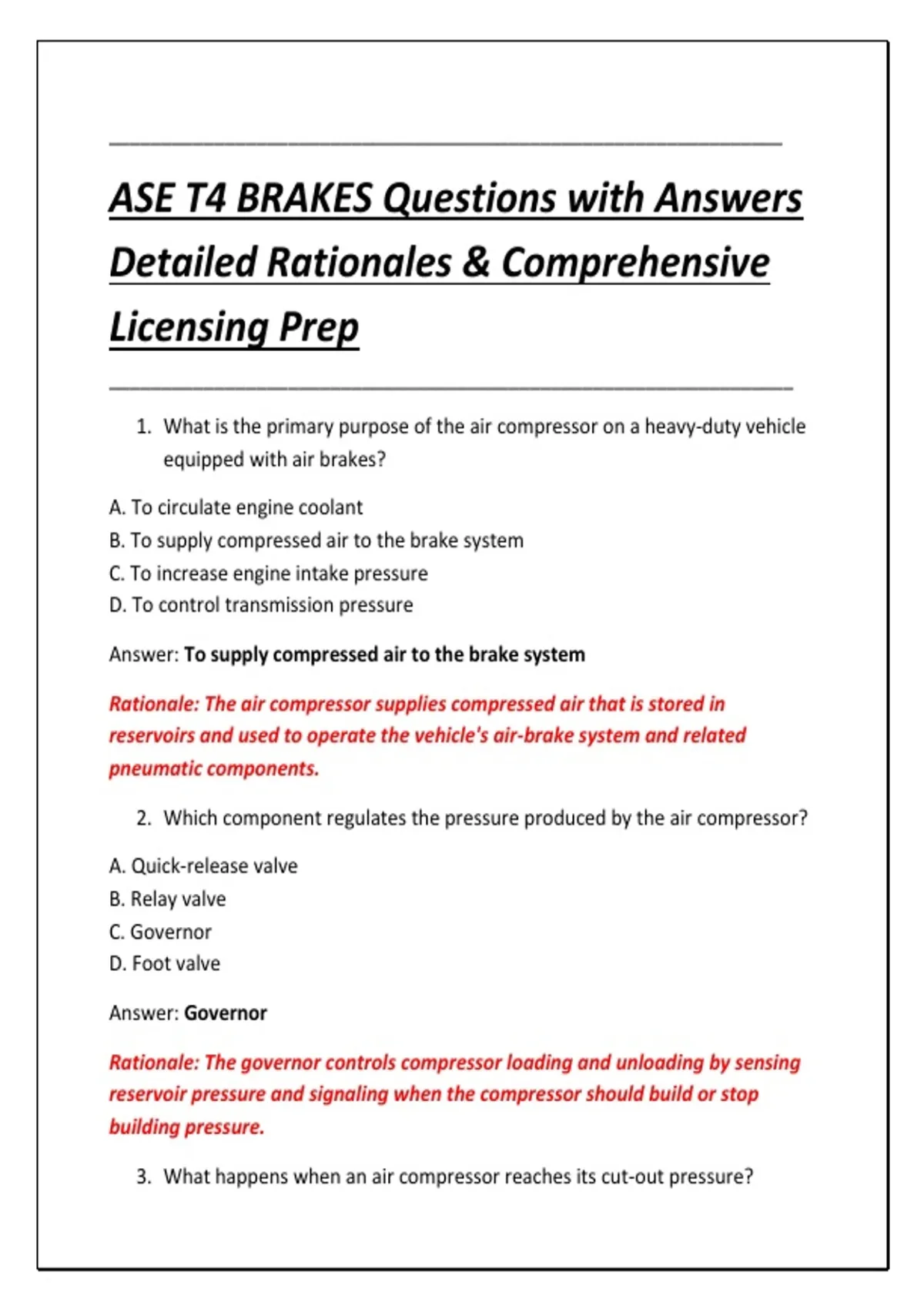

ASE T4 BRAKES Questions with Answers
Detailed Rationales & Comprehensive
Licensing Prep
_________________________________________________________________
1. What is the primary purpose of the air compressor on a heavy-duty vehicle
equipped with air brakes?
A. To circulate engine coolant
B. To supply compressed air to the brake system
C. To increase engine intake pressure
D. To control transmission pressure
Answer: To supply compressed air to the brake system
Rationale: The air compressor supplies compressed air that is stored in
reservoirs and used to operate the vehicle's air-brake system and related
pneumatic components.
2. Which component regulates the pressure produced by the air compressor?
A. Quick-release valve
B. Relay valve
C. Governor
D. Foot valve
Answer: Governor
Rationale: The governor controls compressor loading and unloading by sensing
reservoir pressure and signaling when the compressor should build or stop
building pressure.
3. What happens when an air compressor reaches its cut-out pressure?
,A. The spring brakes apply
B. The governor unloads the compressor
C. The service brakes apply
D. The air dryer vents continuously
Answer: The governor unloads the compressor
Rationale: At cut-out pressure, the governor causes the compressor to stop
pumping compressed air into the reservoirs until pressure falls to the cut-in
setting.
4. What is the primary function of an air dryer?
A. Increase brake chamber pressure
B. Remove moisture and contaminants from compressed air
C. Increase compressor output
D. Reduce brake lining temperature
Answer: Remove moisture and contaminants from compressed air
Rationale: The air dryer removes water vapor, oil, and other contaminants from
compressed air to help protect valves, reservoirs, and other pneumatic
components.
5. What is the purpose of a wet tank in an air-brake system?
A. Store brake fluid
B. Collect moisture and contaminants from compressed air
C. Increase brake chamber travel
D. Control spring brake release
Answer: Collect moisture and contaminants from compressed air
Rationale: The wet tank, when used, is positioned to collect moisture and
contaminants before the air reaches other reservoirs and components.
6. Which component supplies air pressure to the service brake circuits when
the driver applies the brake pedal?
,A. Foot valve
B. Relay valve
C. Safety valve
D. Compressor governor
Answer: Foot valve
Rationale: The foot valve, or treadle valve, meters air pressure according to
brake-pedal application and sends control pressure to the appropriate brake
circuits.
7. What is the main purpose of a relay valve?
A. Reduce reservoir capacity
B. Speed up brake application by supplying air near the brake chambers
C. Increase compressor speed
D. Drain the air tanks
Answer: Speed up brake application by supplying air near the brake chambers
Rationale: A relay valve uses a relatively small control signal to deliver a large
volume of air from a nearby reservoir to the brake chambers, reducing
application lag.
8. What is the function of a quick-release valve?
A. Rapidly exhaust air from brake chambers
B. Increase air-reservoir pressure
C. Apply the parking brakes automatically
D. Regulate compressor cut-out pressure
Answer: Rapidly exhaust air from brake chambers
Rationale: A quick-release valve allows air to exhaust close to the brake
chambers, reducing the time required for the brakes to release.
9. What is the purpose of a pressure protection valve?
, A. Prevent excessive brake lining wear
B. Protect one air circuit from losing all pressure if another circuit develops a leak
C. Increase compressor output
D. Prevent brake drums from cracking
Answer: Protect one air circuit from losing all pressure if another circuit
develops a leak
Rationale: Pressure protection valves isolate selected accessories or circuits so a
failure in one area does not unnecessarily drain the vehicle's primary air supply.
10.Which device protects an air system from excessive pressure?
A. Safety valve
B. Relay valve
C. Quick-release valve
D. Foot valve
Answer: Safety valve
Rationale: The safety valve opens when system pressure becomes excessively
high, protecting reservoirs and other components from overpressure.
11.What is the primary purpose of an air reservoir?
A. Store compressed air
B. Store brake fluid
C. Cool brake drums
D. Lubricate brake shoes
Answer: Store compressed air
Rationale: Reservoirs provide a supply of compressed air for service braking,
parking brakes, emergency functions, and other pneumatic equipment.
12.Why must air reservoirs be drained periodically?
