1|Page

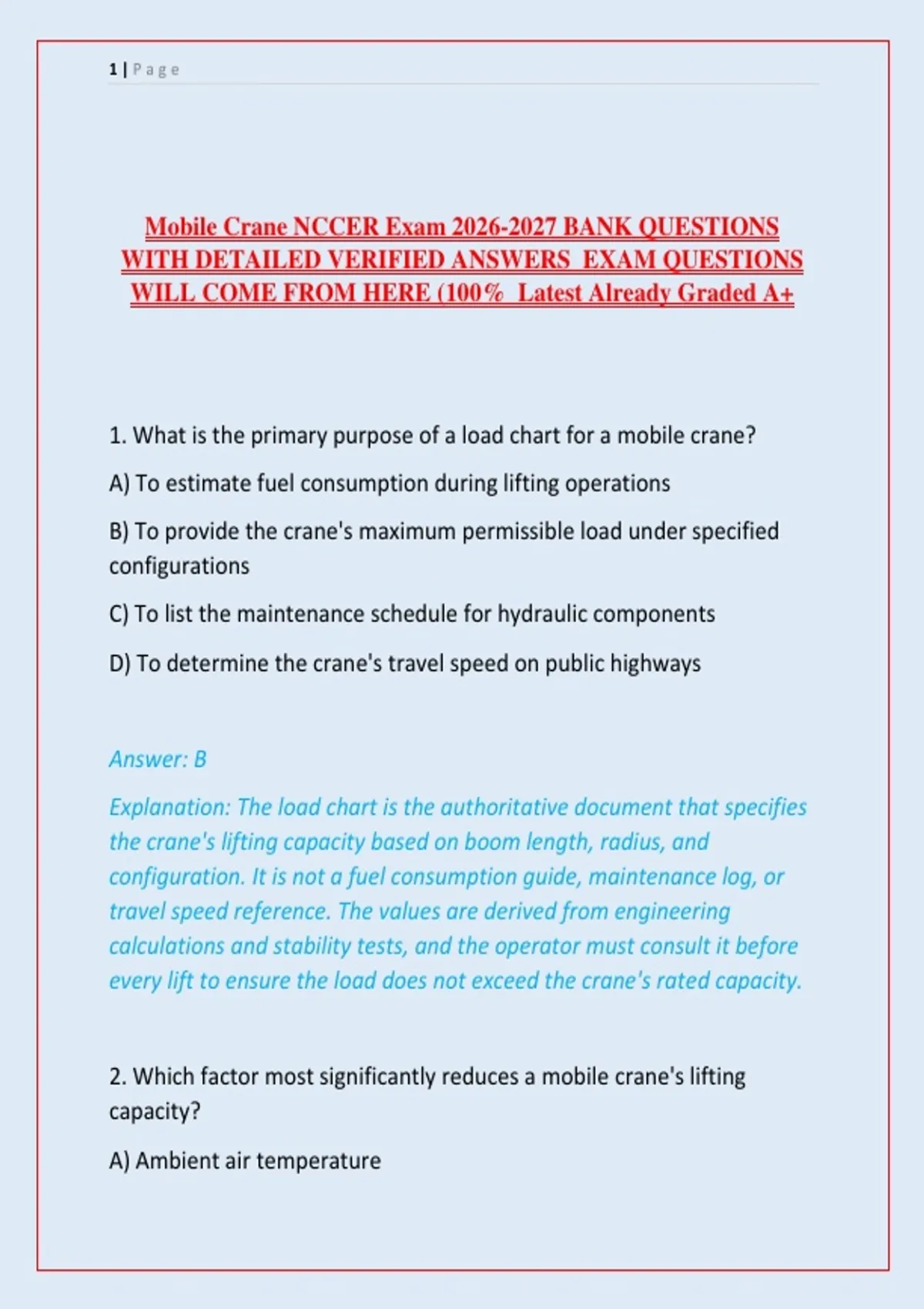

Mobile Crane NCCER Exam 2026-2027 BANK QUESTIONS
WITH DETAILED VERIFIED ANSWERS EXAM QUESTIONS
WILL COME FROM HERE (100% Latest Already Graded A+
1. What is the primary purpose of a load chart for a mobile crane?
A) To estimate fuel consumption during lifting operations
B) To provide the crane's maximum permissible load under specified
configurations
C) To list the maintenance schedule for hydraulic components
D) To determine the crane's travel speed on public highways
Answer: B
Explanation: The load chart is the authoritative document that specifies
the crane's lifting capacity based on boom length, radius, and
configuration. It is not a fuel consumption guide, maintenance log, or
travel speed reference. The values are derived from engineering
calculations and stability tests, and the operator must consult it before
every lift to ensure the load does not exceed the crane's rated capacity.
2. Which factor most significantly reduces a mobile crane's lifting
capacity?
A) Ambient air temperature
,2|Page
B) The operator's years of experience
C) Increased boom length and operating radius
D) The color of the crane's paint
Answer: C
Explanation: Lifting capacity diminishes as boom length extends and
operating radius increases due to the mechanical disadvantage created
by the longer lever arm and the increased moment about the crane's
center of rotation. Temperature, operator experience, and paint color
have no direct bearing on the structural or stability limits defined in the
load chart.
3. What does the term "tipping moment" refer to in mobile crane
operation?
A) The moment when the crane begins its swing motion
B) The rotational force that causes the crane to overturn
C) The moment when the load is first lifted off the ground
D) The torque applied to the boom hoist cylinder
Answer: B
Explanation: The tipping moment is the overturning force generated by
the load and the crane's own components acting at a distance from the
center of rotation. When this moment exceeds the restoring moment
provided by the crane's weight and counterweight, the crane becomes
,3|Page
unstable and may tip forward. This is a critical stability consideration
distinct from swing motion, initial lift, or hydraulic torque.
4. A load chart indicates a capacity of 20,000 pounds at a 30-foot radius
with the main boom fully extended. If the radius increases to 40 feet,
what generally happens to the capacity?
A) It remains unchanged
B) It increases proportionally
C) It decreases
D) It doubles
Answer: C
Explanation: As the operating radius increases, the load moment
increases, requiring greater stability and structural strength.
Consequently, the rated capacity decreases. This inverse relationship is
fundamental to crane design; capacity does not remain constant,
increase, or double when radius is extended.
5. What is the function of the anti-two-block device on a mobile crane?
A) To prevent the boom from contacting power lines
B) To prevent the load block from contacting the boom tip sheaves
C) To prevent the crane from tipping sideways
D) To prevent the outriggers from retracting during operation
, 4|Page
Answer: B
Explanation: The anti-two-block device is a critical safety system that
detects when the load block or hook approaches the boom tip. It
automatically stops hoisting and other dangerous movements to
prevent the load block from jamming against the sheaves, which could
cause wire rope failure and load drop. It does not address electrical
hazards, sideways tipping, or outrigger stability.
6. Which outrigger configuration provides the greatest stability for a
mobile crane?
A) Fully retracted outriggers
B) Outriggers extended halfway
C) Fully extended outriggers with floats properly positioned
D) Outriggers deployed on one side only
Answer: C
Explanation: Maximum stability is achieved when outriggers are fully
extended and the floats are placed on firm, level ground. This
configuration maximizes the crane's support base and increases the
tipping moment resistance. Retracted or partially extended outriggers
reduce stability, and deploying outriggers on one side only creates an
asymmetrical and dangerously unstable condition.
7. What is the purpose of the load moment indicator system?
A) To display the weight of the load in real time
Mobile Crane NCCER Exam 2026-2027 BANK QUESTIONS
WITH DETAILED VERIFIED ANSWERS EXAM QUESTIONS
WILL COME FROM HERE (100% Latest Already Graded A+
1. What is the primary purpose of a load chart for a mobile crane?
A) To estimate fuel consumption during lifting operations
B) To provide the crane's maximum permissible load under specified
configurations
C) To list the maintenance schedule for hydraulic components
D) To determine the crane's travel speed on public highways
Answer: B
Explanation: The load chart is the authoritative document that specifies
the crane's lifting capacity based on boom length, radius, and
configuration. It is not a fuel consumption guide, maintenance log, or
travel speed reference. The values are derived from engineering
calculations and stability tests, and the operator must consult it before
every lift to ensure the load does not exceed the crane's rated capacity.
2. Which factor most significantly reduces a mobile crane's lifting
capacity?
A) Ambient air temperature
,2|Page
B) The operator's years of experience
C) Increased boom length and operating radius
D) The color of the crane's paint
Answer: C
Explanation: Lifting capacity diminishes as boom length extends and
operating radius increases due to the mechanical disadvantage created
by the longer lever arm and the increased moment about the crane's
center of rotation. Temperature, operator experience, and paint color
have no direct bearing on the structural or stability limits defined in the
load chart.
3. What does the term "tipping moment" refer to in mobile crane
operation?
A) The moment when the crane begins its swing motion
B) The rotational force that causes the crane to overturn
C) The moment when the load is first lifted off the ground
D) The torque applied to the boom hoist cylinder
Answer: B
Explanation: The tipping moment is the overturning force generated by
the load and the crane's own components acting at a distance from the
center of rotation. When this moment exceeds the restoring moment
provided by the crane's weight and counterweight, the crane becomes
,3|Page
unstable and may tip forward. This is a critical stability consideration
distinct from swing motion, initial lift, or hydraulic torque.
4. A load chart indicates a capacity of 20,000 pounds at a 30-foot radius
with the main boom fully extended. If the radius increases to 40 feet,
what generally happens to the capacity?
A) It remains unchanged
B) It increases proportionally
C) It decreases
D) It doubles
Answer: C
Explanation: As the operating radius increases, the load moment
increases, requiring greater stability and structural strength.
Consequently, the rated capacity decreases. This inverse relationship is
fundamental to crane design; capacity does not remain constant,
increase, or double when radius is extended.
5. What is the function of the anti-two-block device on a mobile crane?
A) To prevent the boom from contacting power lines
B) To prevent the load block from contacting the boom tip sheaves
C) To prevent the crane from tipping sideways
D) To prevent the outriggers from retracting during operation
, 4|Page
Answer: B
Explanation: The anti-two-block device is a critical safety system that
detects when the load block or hook approaches the boom tip. It
automatically stops hoisting and other dangerous movements to
prevent the load block from jamming against the sheaves, which could
cause wire rope failure and load drop. It does not address electrical
hazards, sideways tipping, or outrigger stability.
6. Which outrigger configuration provides the greatest stability for a
mobile crane?
A) Fully retracted outriggers
B) Outriggers extended halfway
C) Fully extended outriggers with floats properly positioned
D) Outriggers deployed on one side only
Answer: C
Explanation: Maximum stability is achieved when outriggers are fully
extended and the floats are placed on firm, level ground. This
configuration maximizes the crane's support base and increases the
tipping moment resistance. Retracted or partially extended outriggers
reduce stability, and deploying outriggers on one side only creates an
asymmetrical and dangerously unstable condition.
7. What is the purpose of the load moment indicator system?
A) To display the weight of the load in real time
