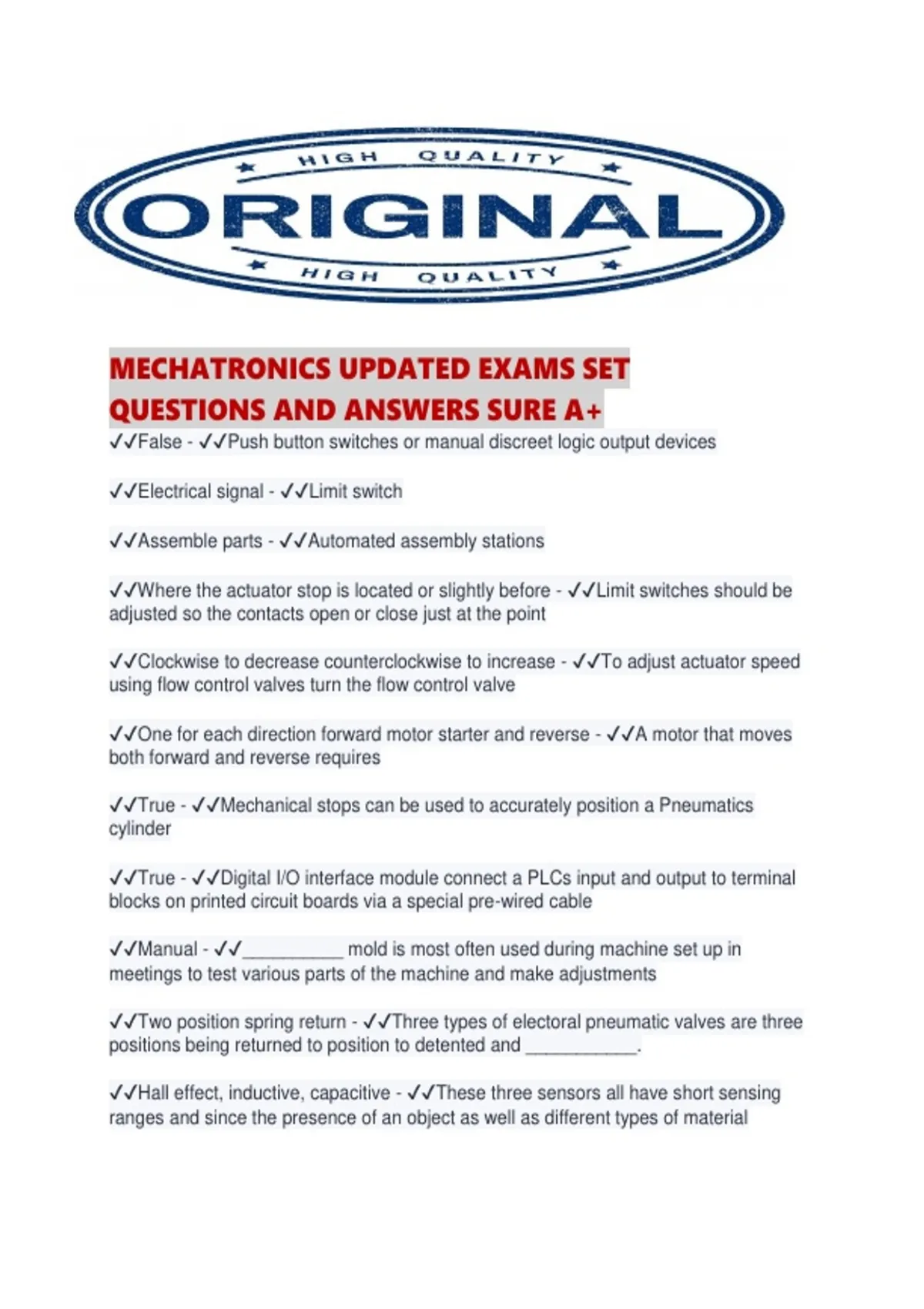

MECHATRONICS UPDATED EXAMS SET
QUESTIONS AND ANSWERS SURE A+
✔✔False - ✔✔Push button switches or manual discreet logic output devices
✔✔Electrical signal - ✔✔Limit switch
✔✔Assemble parts - ✔✔Automated assembly stations
✔✔Where the actuator stop is located or slightly before - ✔✔Limit switches should be
adjusted so the contacts open or close just at the point
✔✔Clockwise to decrease counterclockwise to increase - ✔✔To adjust actuator speed
using flow control valves turn the flow control valve
✔✔One for each direction forward motor starter and reverse - ✔✔A motor that moves
both forward and reverse requires
✔✔True - ✔✔Mechanical stops can be used to accurately position a Pneumatics
cylinder
✔✔True - ✔✔Digital I/O interface module connect a PLCs input and output to terminal
blocks on printed circuit boards via a special pre-wired cable
✔✔Manual - ✔✔__________ mold is most often used during machine set up in
meetings to test various parts of the machine and make adjustments
✔✔Two position spring return - ✔✔Three types of electoral pneumatic valves are three
positions being returned to position to detented and ___________.
✔✔Hall effect, inductive, capacitive - ✔✔These three sensors all have short sensing
ranges and since the presence of an object as well as different types of material
