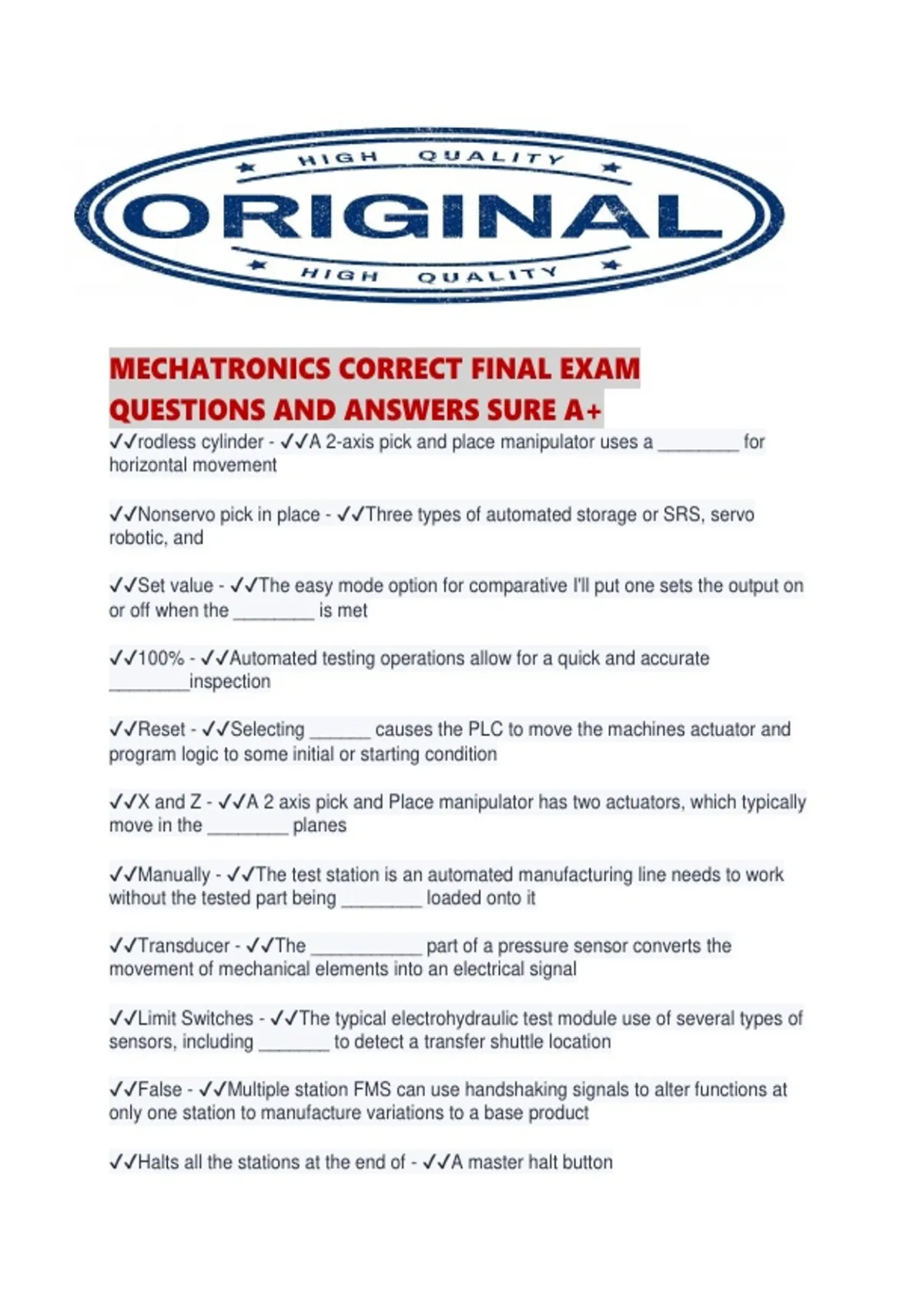

MECHATRONICS CORRECT FINAL EXAM
QUESTIONS AND ANSWERS SURE A+
✔✔rodless cylinder - ✔✔A 2-axis pick and place manipulator uses a ________ for
horizontal movement
✔✔Nonservo pick in place - ✔✔Three types of automated storage or SRS, servo
robotic, and
✔✔Set value - ✔✔The easy mode option for comparative I'll put one sets the output on
or off when the ________ is met
✔✔100% - ✔✔Automated testing operations allow for a quick and accurate
________inspection
✔✔Reset - ✔✔Selecting ______ causes the PLC to move the machines actuator and
program logic to some initial or starting condition
✔✔X and Z - ✔✔A 2 axis pick and Place manipulator has two actuators, which typically
move in the ________ planes
✔✔Manually - ✔✔The test station is an automated manufacturing line needs to work
without the tested part being ________ loaded onto it
✔✔Transducer - ✔✔The ___________ part of a pressure sensor converts the
movement of mechanical elements into an electrical signal
✔✔Limit Switches - ✔✔The typical electrohydraulic test module use of several types of
sensors, including _______ to detect a transfer shuttle location
✔✔False - ✔✔Multiple station FMS can use handshaking signals to alter functions at
only one station to manufacture variations to a base product
✔✔Halts all the stations at the end of - ✔✔A master halt button
, ✔✔True - ✔✔PLC programs are use discrete I/O handshaking include bits with the logic
to turn the handshakes it goes on or off given the state of the rung
✔✔Communication - ✔✔Interfacing between PLC is a straightforward if each PLC uses
the same types of
✔✔Less than 50 feet - ✔✔Discrete handshaking is typically used for distances
✔✔Reset all at the same time - ✔✔Hey master reset signal
✔✔Changes PLC programs - ✔✔Device such as a BCD thumbwheels which allow an
operator to
✔✔At each operator control station and others - ✔✔NFPA standard 79 states that
emergency stop push buttons must be located
✔✔Ends the station cycle - ✔✔A master cycle stop
✔✔Series - ✔✔A master station start but his place in _______ to the start push button
in the station logic
✔✔ True - ✔✔Pick and Place automation
✔✔Four manual discrete logic output - ✔✔Indicator lamps
✔✔Category 0 - ✔✔E stop
✔✔Lock - ✔✔Everyone must have their own
✔✔Safety checks - ✔✔First step to power up
✔✔A and B - ✔✔Mechatronics operator safety rules
✔✔Machine movements - ✔✔
✔✔False - ✔✔Push button switches or manual discreet logic output devices
✔✔Electrical signal - ✔✔Limit switch
✔✔Assemble parts - ✔✔Automated assembly stations
