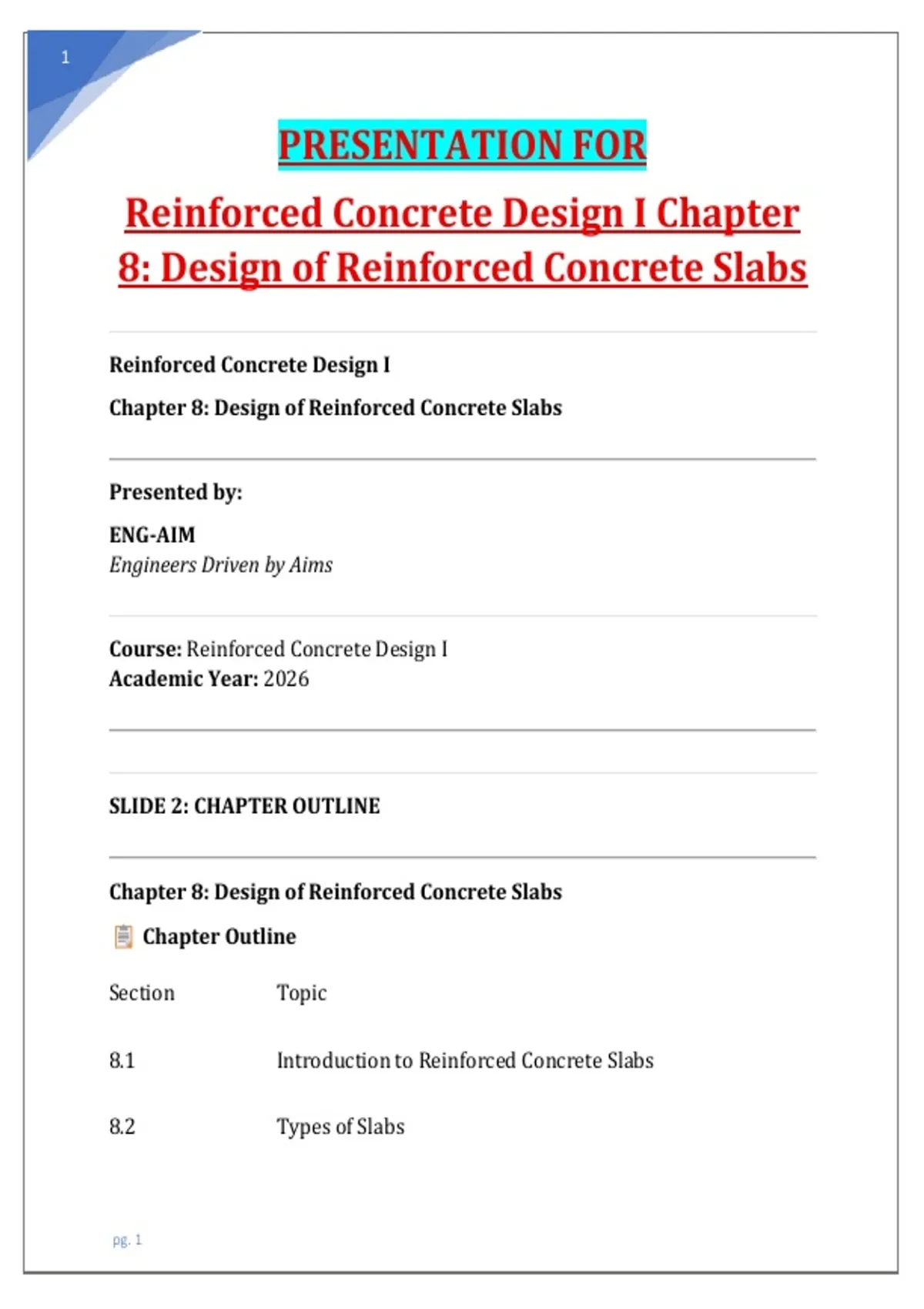

PRESENTATION FOR Reinforced Concrete Design I Chapter 8: Design of Reinforced Concrete Slabs

1



PRESENTATION FOR
Reinforced Concrete Design I Chapter
8: Design of Reinforced Concrete Slabs

Reinforced Concrete Design I
Chapter 8: Design of Reinforced Concrete Slabs


Presented by:
ENG-AIM
Engineers Driven by Aims


Course: Reinforced Concrete Design I
Academic Year: 2026




SLIDE 2: CHAPTER OUTLINE


Chapter 8: Design of Reinforced Concrete Slabs
Chapter Outline

Section Topic

8.1 Introduction to Reinforced Concrete Slabs

8.2 Types of Slabs



pg. 1

,2



Section Topic

8.3 Loads on Slabs

8.4 One-Way Slab Design

8.5 Two-Way Slab Design

8.6 Reinforcement Detailing

8.7 Deflection Control

8.8 Design Examples

8.9 Summary & Key Takeaways




SLIDE 3: INTRODUCTION – WHAT IS A SLAB?


8.1 Introduction to Reinforced Concrete Slabs
Definition
A slab is a horizontal plate element that forms the floor and roof of a building.
Key Characteristics
• Horizontal orientation – provides flat surface for occupancy
• Plate action – transmits loads primarily through bending
• Two-way action – distributes loads in two directions (in most cases)
• Composite action – works together with supporting beams and
columns

pg. 2

,3


Primary Functions

Function Description

Load
Carries dead loads (self-weight, finishes) and live loads (occupancy, furniture)
Support

Load
Transfers loads to supporting beams, columns, or walls
Transfer

Floor/Roof
Provides usable floor area or weather protection
Surface

Diaphragm
Resists lateral loads (wind, seismic) and distributes them to lateral load-resisting systems
Action



Key Concept: Slabs are one of the most fundamental structural elements
in building construction, serving both structural and functional purposes.




SLIDE 4: SLAB IN THE STRUCTURAL SYSTEM


8.1.1 Role of Slabs in Structural Framing
Typical Load Path
text
┌──────────────────────────────────────────────────
───────────┐
│ │




pg. 3

, 4


│ ┌─────────────────────────────────────────────┐
│
│ │ SLAB (Floor Surface) │ │
│ └───────────────────┬─────────────────────────┘
│
│ │ │
│ ▼ │
│ ┌─────────────────────────────────────────────┐
│
│ │ SUPPORTING BEAMS │ │
│ └───────────────────┬─────────────────────────┘
│
│ │ │
│ ▼ │
│ ┌─────────────────────────────────────────────┐
│
│ │ COLUMNS / WALLS │ │
│ └───────────────────┬─────────────────────────┘
│
│ │ │
│ ▼ │
│ ┌─────────────────────────────────────────────┐
│
│ │ FOUNDATION │ │
│ └─────────────────────────────────────────────┘
│
│ │



pg. 4
