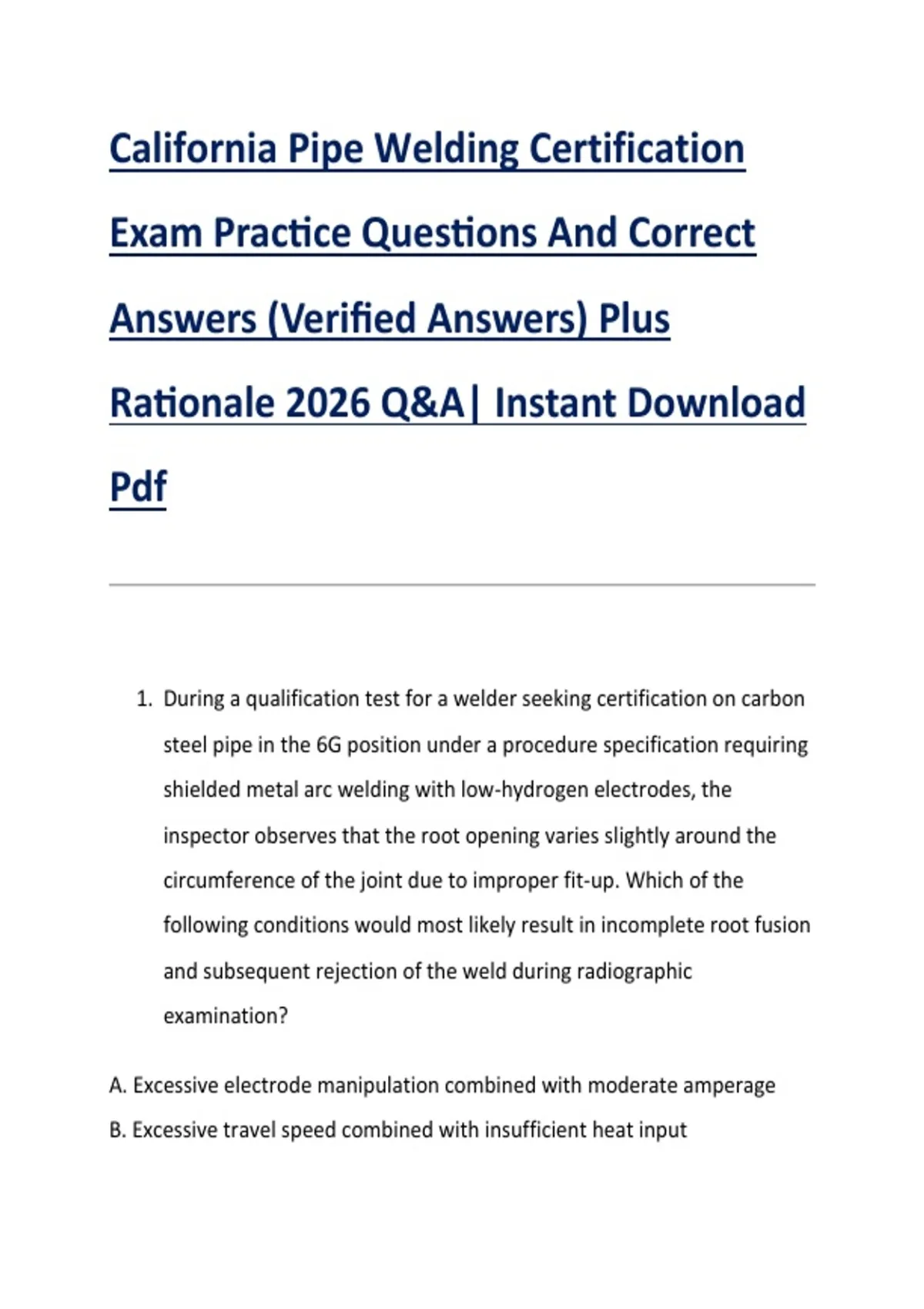

California Pipe Welding Certification
Exam Practice Questions And Correct
Answers (Verified Answers) Plus
Rationale 2026 Q&A| Instant Download
Pdf
1. During a qualification test for a welder seeking certification on carbon
steel pipe in the 6G position under a procedure specification requiring
shielded metal arc welding with low-hydrogen electrodes, the
inspector observes that the root opening varies slightly around the
circumference of the joint due to improper fit-up. Which of the
following conditions would most likely result in incomplete root fusion
and subsequent rejection of the weld during radiographic
examination?
A. Excessive electrode manipulation combined with moderate amperage
B. Excessive travel speed combined with insufficient heat input
,C. Slightly oversized root opening combined with increased amperage
D. Excessive preheat temperature combined with a narrow weave pattern
B. Excessive travel speed combined with insufficient heat input
Incomplete root fusion commonly occurs when the welder travels too
quickly and fails to provide adequate heat input to fully penetrate and fuse
the root faces. This defect is especially critical in pipe welding certification
tests because radiographic examination can easily reveal unfused areas at
the root of the weld.
2. A pipe welder performing a groove weld on Schedule 80 carbon steel
pipe notices slag inclusions repeatedly appearing between weld passes
during visual inspection. Which corrective action would most
effectively reduce the likelihood of slag inclusions in subsequent
passes?
A. Increasing electrode diameter while reducing amperage
B. Reducing interpass cleaning procedures to preserve heat
C. Thoroughly removing slag deposits before depositing the next pass
D. Using alternating current instead of direct current electrode positive
C. Thoroughly removing slag deposits before depositing the next pass
Slag inclusions typically occur when slag from previous weld passes is not
completely removed before additional weld metal is deposited. Proper
,cleaning between passes is essential to ensure sound fusion and prevent
trapped nonmetallic material within the weld.
3. A welder taking a California pipe welding certification examination is
required to weld a carbon steel pipe coupon in the 5G position using
SMAW. During testing, the examiner notices excessive undercut along
the cap pass near the top quadrant of the pipe. What is the most
probable cause of this discontinuity?
A. Excessive amperage combined with improper electrode angle
B. Insufficient amperage combined with excessive weave width
C. Excessive preheat combined with low travel speed
D. Insufficient root opening combined with electrode whipping
A. Excessive amperage combined with improper electrode angle
Undercut occurs when the base metal adjacent to the weld toe is melted
away without being adequately filled by weld metal. High amperage and
incorrect electrode manipulation commonly create this defect, especially in
out-of-position pipe welding.
4. In a pipe welding qualification test governed by ASME Section IX, a
welder successfully completes a 6G pipe test using GTAW for the root
pass and SMAW for fill and cap passes on carbon steel pipe. Which
welding positions would this qualification generally permit the welder
to perform in production?
, A. Flat position only
B. Horizontal and vertical positions only
C. All pipe positions for the qualified process and material range
D. Fixed horizontal pipe positions only
C. All pipe positions for the qualified process and material range
A 6G qualification is considered one of the most comprehensive pipe
welding tests because the pipe is fixed at a 45-degree angle, requiring
welding in all positions simultaneously. Successful completion generally
qualifies the welder for all pipe positions within the qualified variables.
5. During visual inspection of a completed pipe weld coupon, the
inspector identifies excessive reinforcement on the cap pass. Why is
excessive weld reinforcement considered undesirable in pressure
piping systems?
A. It reduces weld penetration at the root
B. It may create stress concentrations and turbulence within the system
C. It eliminates proper slag coverage during cooling
D. It decreases the hardness of the heat-affected zone
B. It may create stress concentrations and turbulence within the system
Excessive weld reinforcement can create localized stress concentrations
and, in some systems, interfere with fluid flow characteristics. Welding
