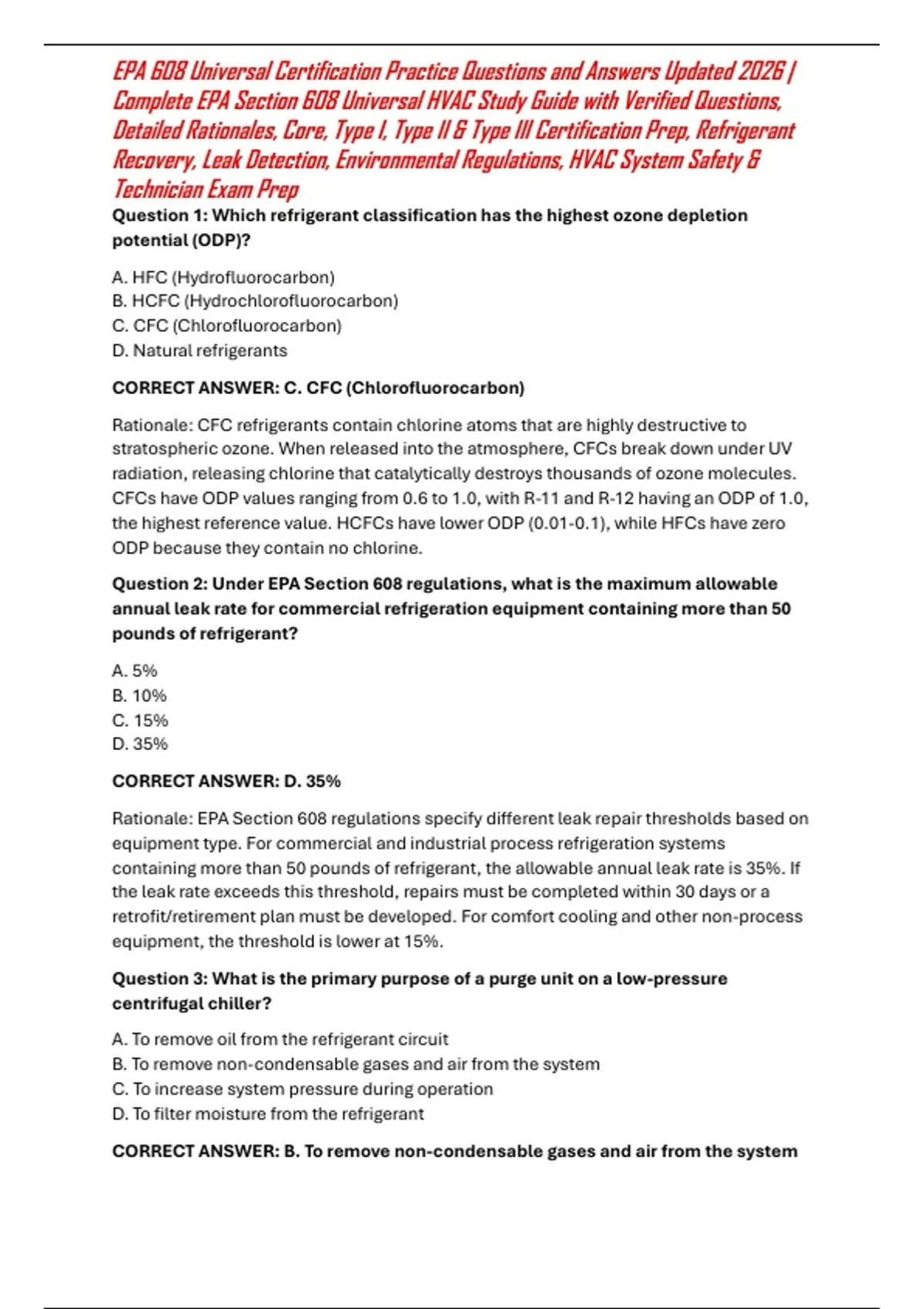

EPA 608 Universal Certification Practice Questions and Answers Updated 2026 |
Complete EPA Section 608 Universal HVAC Study Guide with Verified Questions,
Detailed Rationales, Core, Type I, Type II & Type III Certification Prep, Refrigerant
Recovery, Leak Detection, Environmental Regulations, HVAC System Safety &
Technician Exam Prep
Question 1: Which refrigerant classification has the highest ozone depletion
potential (ODP)?
A. HFC (Hydrofluorocarbon)
B. HCFC (Hydrochlorofluorocarbon)
C. CFC (Chlorofluorocarbon)
D. Natural refrigerants
CORRECT ANSWER: C. CFC (Chlorofluorocarbon)
Rationale: CFC refrigerants contain chlorine atoms that are highly destructive to
stratospheric ozone. When released into the atmosphere, CFCs break down under UV
radiation, releasing chlorine that catalytically destroys thousands of ozone molecules.
CFCs have ODP values ranging from 0.6 to 1.0, with R-11 and R-12 having an ODP of 1.0,
the highest reference value. HCFCs have lower ODP (0.01-0.1), while HFCs have zero
ODP because they contain no chlorine.
Question 2: Under EPA Section 608 regulations, what is the maximum allowable
annual leak rate for commercial refrigeration equipment containing more than 50
pounds of refrigerant?
A. 5%
B. 10%
C. 15%
D. 35%
CORRECT ANSWER: D. 35%
Rationale: EPA Section 608 regulations specify different leak repair thresholds based on
equipment type. For commercial and industrial process refrigeration systems
containing more than 50 pounds of refrigerant, the allowable annual leak rate is 35%. If
the leak rate exceeds this threshold, repairs must be completed within 30 days or a
retrofit/retirement plan must be developed. For comfort cooling and other non-process
equipment, the threshold is lower at 15%.
Question 3: What is the primary purpose of a purge unit on a low-pressure
centrifugal chiller?
A. To remove oil from the refrigerant circuit
B. To remove non-condensable gases and air from the system
C. To increase system pressure during operation
D. To filter moisture from the refrigerant
CORRECT ANSWER: B. To remove non-condensable gases and air from the system
,Rationale: Low-pressure chillers operate below atmospheric pressure, which can allow
air and moisture to infiltrate through small leaks. The purge unit automatically removes
these non-condensable gases from the condenser to maintain efficient heat transfer
and prevent corrosion. High-efficiency purge units are designed to minimize refrigerant
loss during this process, returning recovered refrigerant to the system.
Question 4: Which of the following is TRUE regarding the recovery of refrigerant
from a small appliance with an inoperative compressor using passive recovery
equipment?
A. Only the high-side access valve is required
B. The compressor must be operated during recovery
C. Both high and low-side access valves should be installed
D. Recovery is not required for inoperative compressors
CORRECT ANSWER: C. Both high and low-side access valves should be installed
Rationale: When recovering refrigerant from a small appliance with an inoperative
compressor using system-dependent (passive) recovery equipment, EPA regulations
require installation of both high and low-side access valves. This allows refrigerant to be
recovered from both sides of the system. Additionally, applying heat to the compressor
and sharply striking it may help release refrigerant trapped in the oil. Passive recovery
relies on system pressure or compressor components to move refrigerant.
Question 5: What is the required evacuation level for a high-pressure appliance
containing less than 200 pounds of R-12 refrigerant when using recovery equipment
manufactured after November 15, 1993?
A. 0 inches of Hg vacuum
B. 4 inches of Hg vacuum
C. 10 inches of Hg vacuum
D. 15 inches of Hg vacuum
CORRECT ANSWER: C. 10 inches of Hg vacuum
Rationale: EPA Section 608 specifies evacuation requirements based on refrigerant
type, appliance charge, and equipment manufacture date. For high-pressure appliances
containing less than 200 pounds of CFC refrigerants like R-12, recovery equipment
manufactured after November 15, 1993 must achieve 10 inches of Hg vacuum.
Equipment manufactured before this date requires only 4 inches of Hg vacuum. These
standards ensure minimal refrigerant release during service and disposal.
Question 6: Which personal protective equipment is MOST critical when handling
refrigerants in a confined space?
A. Leather gloves
B. Safety goggles
C. Self-contained breathing apparatus (SCBA)
D. Steel-toed boots
,CORRECT ANSWER: C. Self-contained breathing apparatus (SCBA)
Rationale: Refrigerants are heavier than air and can displace oxygen in confined spaces,
creating an asphyxiation hazard. While gloves and goggles protect against frostbite and
eye injury from refrigerant contact, an SCBA is essential in confined spaces where
oxygen levels may be dangerously low. EPA safety guidelines emphasize that
technicians should evacuate areas with significant refrigerant releases and use
appropriate respiratory protection when ventilation is inadequate.
Question 7: What is the primary reason ester-based lubricants (POE oils) are used
with HFC refrigerants like R-134a?
A. They have lower viscosity than mineral oils
B. They are miscible with HFC refrigerants
C. They are less expensive than alkylbenzene oils
D. They do not absorb moisture
CORRECT ANSWER: B. They are miscible with HFC refrigerants
Rationale: HFC refrigerants are not miscible with traditional mineral oils used with CFC
and HCFC refrigerants. Polyol ester (POE) oils were developed specifically because they
are miscible with HFC refrigerants, ensuring proper oil circulation and compressor
lubrication. However, POE oils are hygroscopic and readily absorb moisture, requiring
careful handling and the use of filter-driers to prevent acid formation and system
contamination.
Question 8: When leak testing a low-pressure centrifugal chiller, what is the
MAXIMUM allowable test pressure?
A. 5 psig
B. 10 psig
C. 15 psig
D. 25 psig
CORRECT ANSWER: B. 10 psig
Rationale: Low-pressure chillers are designed to operate under vacuum and have
components not rated for high pressure. EPA guidelines and manufacturer
specifications limit leak test pressurization to a maximum of 10 psig to prevent damage
to the evaporator, condenser, or rupture disc. Preferred pressurization methods include
controlled hot water or built-in heating devices rather than nitrogen, which requires
careful pressure regulation to avoid exceeding this limit.
Question 9: Which statement BEST describes the fractionation phenomenon in
zeotropic refrigerant blends?
A. All components vaporize at the same temperature
B. Different components leak or vaporize at different rates
, C. The blend becomes more efficient over time
D. Fractionation only occurs during reclamation
CORRECT ANSWER: B. Different components leak or vaporize at different rates
Rationale: Zeotropic refrigerant blends consist of multiple components with different
boiling points. During a leak or when vaporizing, the more volatile components escape
or vaporize faster than less volatile ones, changing the blend's composition and
performance characteristics. This fractionation effect means zeotropic blends should
be charged as liquid to maintain proper composition, and recovered refrigerant from
blends should not be reused without proper reclamation.
Question 10: According to EPA regulations, when is venting of substitute
refrigerants (such as HFCs) prohibited?
A. Only during disposal of equipment
B. Only during major repairs
C. At all times during servicing, maintenance, or disposal
D. Only for refrigerants with GWP above 150
CORRECT ANSWER: C. At all times during servicing, maintenance, or disposal
Rationale: Since November 1995, EPA Section 608 regulations have prohibited the
knowing venting of all substitute refrigerants, including HFCs, during the maintenance,
service, repair, or disposal of air-conditioning and refrigeration equipment. While HFCs
do not deplete ozone, they have high global warming potential, and the venting
prohibition helps reduce greenhouse gas emissions. Only minimal, incidental releases
during good-faith recovery efforts are exempt.
Question 11: What is the correct color code for a reusable (refillable) refrigerant
recovery cylinder?
A. Red body with blue top
B. Gray body with yellow top
C. White body with green top
D. Blue body with red top
CORRECT ANSWER: B. Gray body with yellow top
Rationale: DOT and EPA regulations specify that reusable refrigerant recovery cylinders
must be gray with a yellow top to distinguish them from disposable cylinders and new
refrigerant containers. This color coding prevents accidental misuse and ensures
proper handling. Recovery cylinders must also be DOT-approved, hydrostatically tested
every five years, and never filled beyond 80% capacity to allow for thermal expansion.
Question 12: Which factor does NOT significantly affect the speed of refrigerant
recovery?
A. Ambient temperature
B. Length and diameter of recovery hoses
