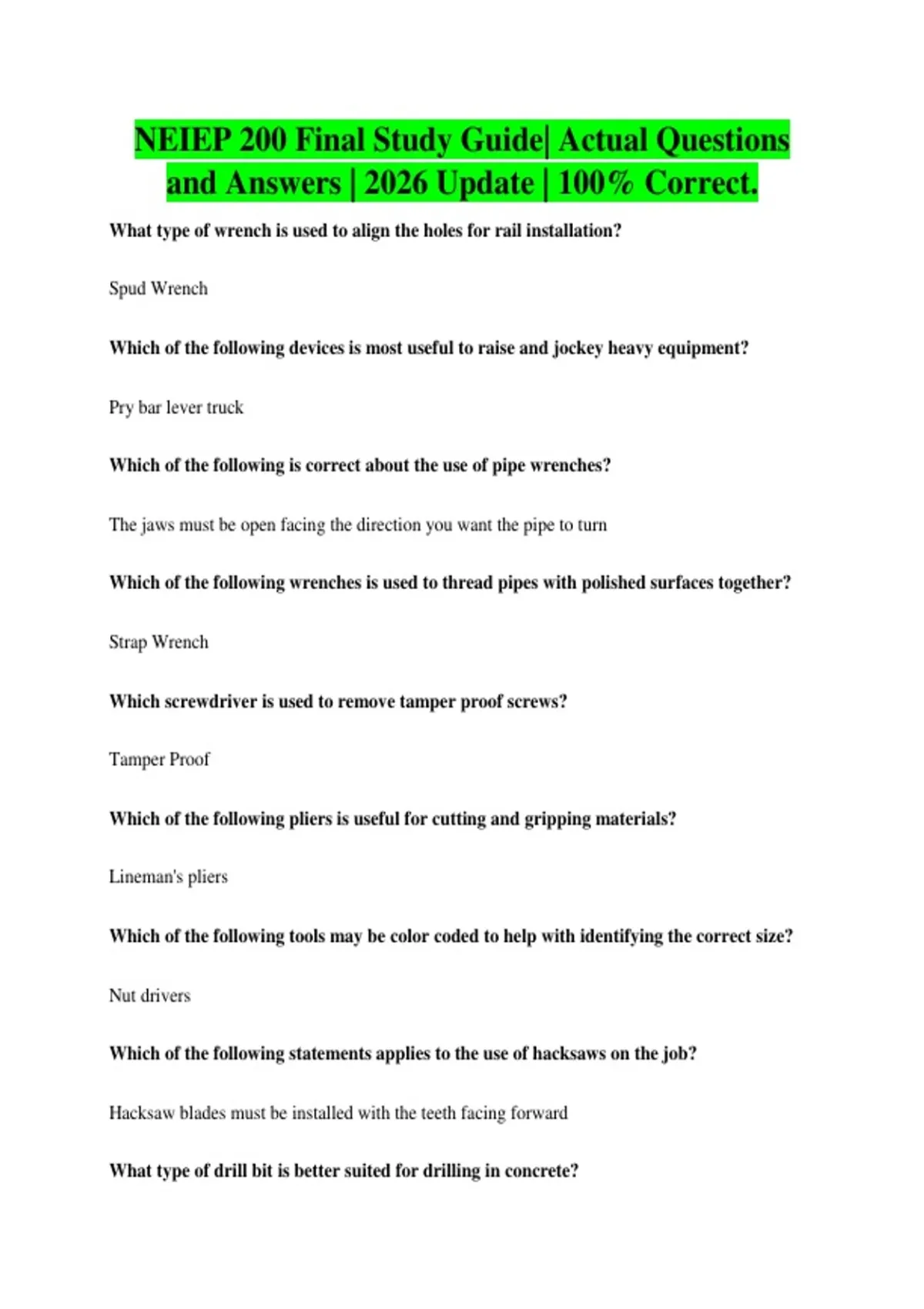

NEIEP 200 Final Study Guide| Actual Questions
and Answers | 2026 Update | 100% Correct.
What type of wrench is used to align the holes for rail installation?
Spud Wrench
Which of the following devices is most useful to raise and jockey heavy equipment?
Pry bar lever truck
Which of the following is correct about the use of pipe wrenches?
The jaws must be open facing the direction you want the pipe to turn
Which of the following wrenches is used to thread pipes with polished surfaces together?
Strap Wrench
Which screwdriver is used to remove tamper proof screws?
Tamper Proof
Which of the following pliers is useful for cutting and gripping materials?
Lineman's pliers
Which of the following tools may be color coded to help with identifying the correct size?
Nut drivers
Which of the following statements applies to the use of hacksaws on the job?
Hacksaw blades must be installed with the teeth facing forward
What type of drill bit is better suited for drilling in concrete?
,carbide-tipped
What safety precaution is most important when using rollers to move heavy equipment?
Pipe rollers must be picked up by the hollow inner part
When handling and storing a freight platform, what do you need to keep in mind?
With the platform on edge, handle it from the ends and move on rollers
What kind of buffer should not be disassembled in the field.
Oil buffer
Two safety precautions to be followed when first entering the elevator pit are to have the
________ open and the pit light on
Put stop switch
Tension on the governor rope is maintained by using a
Tension sheave
The ASME Safety Code requires oil buffers for elevators when traveling at a car speed of
Over 200 FPM
If the pit extends more than _______ below the sill of the access door, both a fixed vertical
ladder and a light switch shall be located within reach of the access door.
35 inches
The purpose of the ________ is to reduce the shearing action of the edge of the sill or
threshold.
, Sill guard/ toe guard
The elevator pit is located between the sill level of the lowest landing and the
_____________.
Floor of elevator hoistway
When working in a pit that has been waterproofed,
You must notify the general contractor before drilling or cutting into the wall or pit floor.
If the compensating sheave diameter is smaller than the distance between the car and
counterweight compensating rope hitches, the plumb lead of the compensating rope from
the compensating sheave should be from the _______ side.
counterweight
The location of the governor tension sheave is determined ___________.
from the final layout drawing
When the pit down final limit switch is actuated, the car ____________.
Will not run at all
The ________ of a spring buffer is the distance the contact (top) end of the spring should be
compressed so that all coils of the spring come in contact with each other.
stroke
On an elevator installation ________, the counterweight also has a governor and tension
sheave system.
and Answers | 2026 Update | 100% Correct.
What type of wrench is used to align the holes for rail installation?
Spud Wrench
Which of the following devices is most useful to raise and jockey heavy equipment?
Pry bar lever truck
Which of the following is correct about the use of pipe wrenches?
The jaws must be open facing the direction you want the pipe to turn
Which of the following wrenches is used to thread pipes with polished surfaces together?
Strap Wrench
Which screwdriver is used to remove tamper proof screws?
Tamper Proof
Which of the following pliers is useful for cutting and gripping materials?
Lineman's pliers
Which of the following tools may be color coded to help with identifying the correct size?
Nut drivers
Which of the following statements applies to the use of hacksaws on the job?
Hacksaw blades must be installed with the teeth facing forward
What type of drill bit is better suited for drilling in concrete?
,carbide-tipped
What safety precaution is most important when using rollers to move heavy equipment?
Pipe rollers must be picked up by the hollow inner part
When handling and storing a freight platform, what do you need to keep in mind?
With the platform on edge, handle it from the ends and move on rollers
What kind of buffer should not be disassembled in the field.
Oil buffer
Two safety precautions to be followed when first entering the elevator pit are to have the
________ open and the pit light on
Put stop switch
Tension on the governor rope is maintained by using a
Tension sheave
The ASME Safety Code requires oil buffers for elevators when traveling at a car speed of
Over 200 FPM
If the pit extends more than _______ below the sill of the access door, both a fixed vertical
ladder and a light switch shall be located within reach of the access door.
35 inches
The purpose of the ________ is to reduce the shearing action of the edge of the sill or
threshold.
, Sill guard/ toe guard
The elevator pit is located between the sill level of the lowest landing and the
_____________.
Floor of elevator hoistway
When working in a pit that has been waterproofed,
You must notify the general contractor before drilling or cutting into the wall or pit floor.
If the compensating sheave diameter is smaller than the distance between the car and
counterweight compensating rope hitches, the plumb lead of the compensating rope from
the compensating sheave should be from the _______ side.
counterweight
The location of the governor tension sheave is determined ___________.
from the final layout drawing
When the pit down final limit switch is actuated, the car ____________.
Will not run at all
The ________ of a spring buffer is the distance the contact (top) end of the spring should be
compressed so that all coils of the spring come in contact with each other.
stroke
On an elevator installation ________, the counterweight also has a governor and tension
sheave system.
