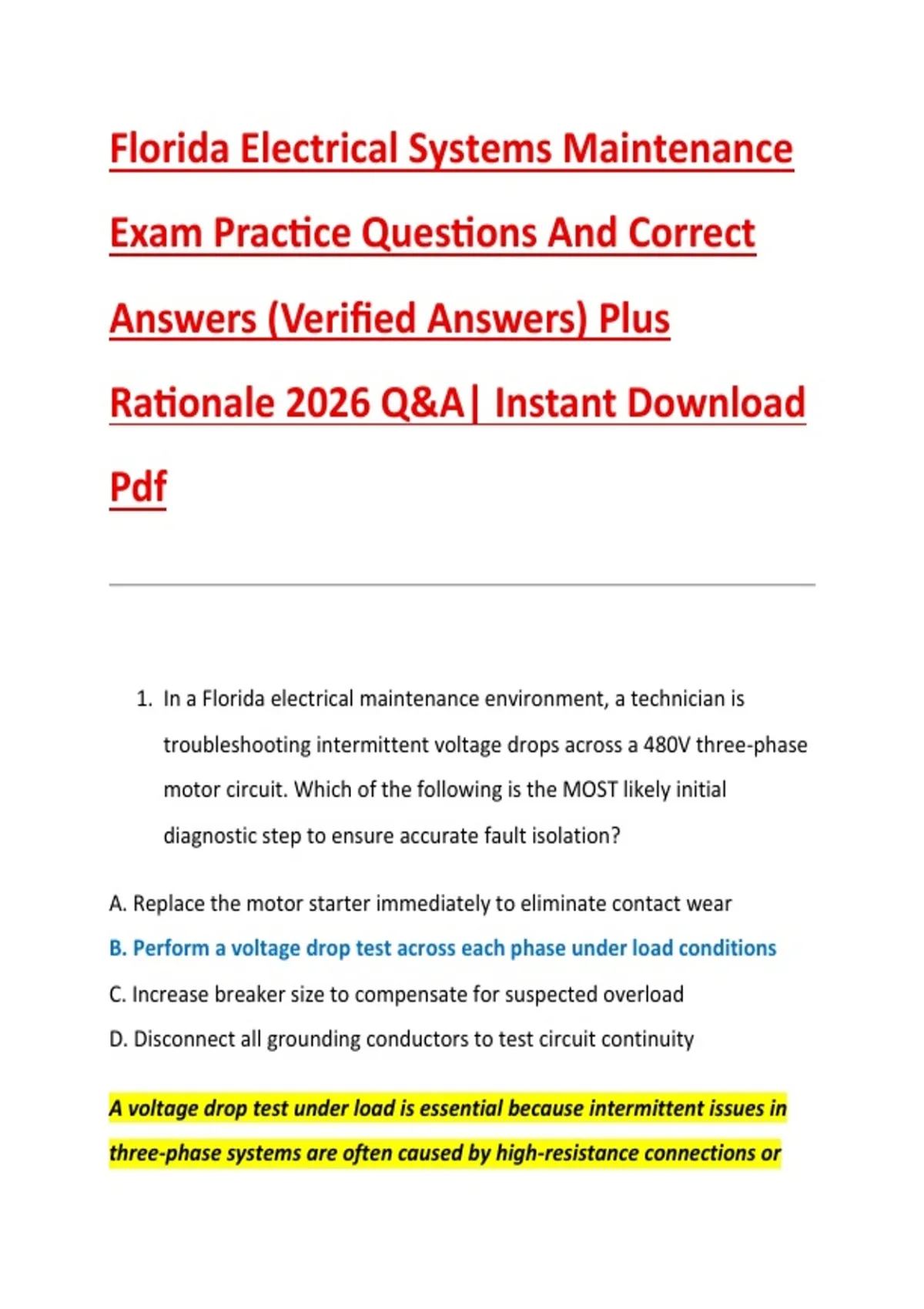

Florida Electrical Systems Maintenance
Exam Practice Questions And Correct
Answers (Verified Answers) Plus
Rationale 2026 Q&A| Instant Download
Pdf
1. In a Florida electrical maintenance environment, a technician is
troubleshooting intermittent voltage drops across a 480V three-phase
motor circuit. Which of the following is the MOST likely initial
diagnostic step to ensure accurate fault isolation?
A. Replace the motor starter immediately to eliminate contact wear
B. Perform a voltage drop test across each phase under load conditions
C. Increase breaker size to compensate for suspected overload
D. Disconnect all grounding conductors to test circuit continuity
A voltage drop test under load is essential because intermittent issues in
three-phase systems are often caused by high-resistance connections or
,failing conductors that only manifest under operational current conditions,
making this the most reliable first diagnostic step.
2. A maintenance electrician observes overheating in a panelboard
supplying multiple HVAC loads. Which condition is MOST likely
contributing to the overheating?
A. Oversized grounding conductor
B. Excessively low ambient humidity
C. Loose or corroded terminations at high-current connections
D. Use of copper instead of aluminum conductors
Loose or corroded terminations increase resistance at connection points,
producing localized heat under load, which is a common cause of
panelboard overheating in commercial HVAC distribution systems.
3. When maintaining a three-phase induction motor, which symptom
most strongly indicates single-phasing condition?
A. Uniform reduction in motor speed without noise
B. Excessive vibration and humming with rapid overheating
C. Increased efficiency and reduced current draw
D. Smooth operation with higher than normal torque
,Single-phasing causes severe imbalance in the motor windings, resulting in
vibration, humming, and overheating due to unequal phase loading and
increased current in the remaining phases.
4. A technician is inspecting a grounded electrical system in a Florida
commercial building. What is the primary purpose of the grounding
system?
A. Increase available fault current for equipment operation
B. Reduce conductor resistance in branch circuits
C. Provide a low-resistance path for fault current to protect personnel and
equipment
D. Balance voltage between all energized conductors
The grounding system is designed to safely redirect fault current away
from personnel and equipment, enabling protective devices to operate
quickly and prevent hazardous voltage conditions.
5. Which tool is MOST appropriate for verifying insulation resistance in
motor windings during preventive maintenance?
A. Clamp meter
B. Phase rotation meter
C. Megohmmeter (insulation resistance tester)
D. Continuity tester
, A megohmmeter applies a high DC voltage to measure insulation
resistance, making it the standard tool for detecting insulation breakdown
in motor windings.
6. A breaker repeatedly trips under normal operating load in a lighting
circuit. What is the MOST probable cause?
A. Oversized conductor
B. High power factor load
C. Overloaded circuit due to excessive connected fixtures
D. Low ambient temperature
Repeated breaker tripping under normal operation typically indicates
circuit overload, where connected loads exceed the breaker’s rated
capacity.
7. In motor control troubleshooting, what does a “wye-delta start”
configuration primarily reduce during motor startup?
A. Running speed
B. Inrush current
C. Operating voltage
D. Mechanical torque output permanently
