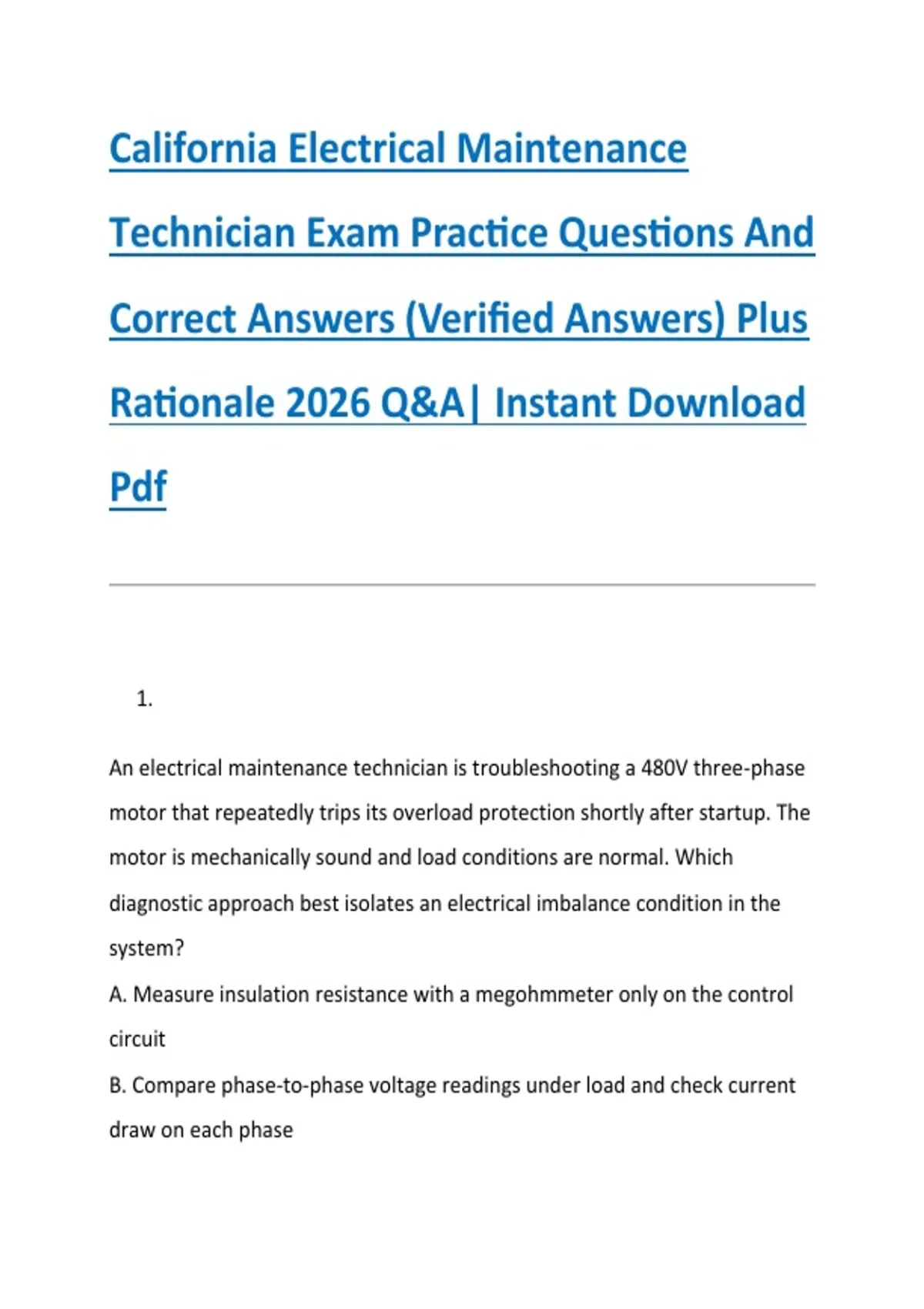

California Electrical Maintenance
Technician Exam Practice Questions And
Correct Answers (Verified Answers) Plus
Rationale 2026 Q&A| Instant Download
Pdf
1.
An electrical maintenance technician is troubleshooting a 480V three-phase
motor that repeatedly trips its overload protection shortly after startup. The
motor is mechanically sound and load conditions are normal. Which
diagnostic approach best isolates an electrical imbalance condition in the
system?
A. Measure insulation resistance with a megohmmeter only on the control
circuit
B. Compare phase-to-phase voltage readings under load and check current
draw on each phase
,C. Replace the motor starter contactor immediately to eliminate contact
wear issues
D. Increase overload relay settings to prevent nuisance tripping
B. Compare phase-to-phase voltage readings under load and check current
draw on each phase
This approach directly identifies voltage imbalance or current asymmetry
across phases, which are common causes of overload tripping in otherwise
mechanically sound motors.
2.
A technician is assigned to maintain a 277/480V lighting panel and notices
overheating at several breaker terminals. What is the most likely root cause
requiring corrective action?
A. Overvoltage from the utility transformer secondary
B. Loose or improperly torqued conductor terminations
C. Excessive harmonic distortion from LED drivers only
D. Incorrect neutral grounding at the service entrance
B. Loose or improperly torqued conductor terminations
Loose connections increase resistance at termination points, causing
localized heating and potential failure under load.
3.
,During preventive maintenance, an electrical technician finds a ground fault
in a branch circuit serving industrial receptacles. Which method is most
effective for locating the fault without unnecessary circuit damage?
A. Replace all receptacles sequentially until the fault clears
B. Use insulation resistance testing and sectional isolation of the circuit
C. Increase breaker size to override nuisance tripping
D. Disconnect the grounding conductor to test continuity
B. Use insulation resistance testing and sectional isolation of the circuit
Systematic isolation combined with insulation testing accurately identifies
fault location without damaging components or bypassing safety systems.
4.
A 3-phase motor is running with unusual vibration and elevated current on
one phase. What is the most probable electrical cause?
A. Phase imbalance in supply voltage
B. Excess lubrication in motor bearings
C. Oversized motor frame for application
D. High ambient temperature only
A. Phase imbalance in supply voltage
Unequal voltage across phases results in uneven current distribution,
causing torque ripple and mechanical vibration.
5.
, A technician is troubleshooting a control circuit using a 24VDC power supply.
The circuit intermittently drops out under load. What is the most likely
cause?
A. Excessively long conductor runs causing voltage drop
B. Oversized transformer in primary supply
C. Incorrect motor rotation direction
D. High resistance in the motor windings
A. Excessively long conductor runs causing voltage drop
Long wiring runs increase resistance, reducing available voltage under load
conditions and causing intermittent control failure.
6.
Which device provides the best protection against sustained overload
conditions in an industrial motor circuit?
A. Fuse only
B. Thermal overload relay
C. Surge protective device
D. Ground fault interrupter
B. Thermal overload relay
Thermal overload relays respond to prolonged current conditions that
exceed motor-rated limits, protecting against overheating damage.
7.
