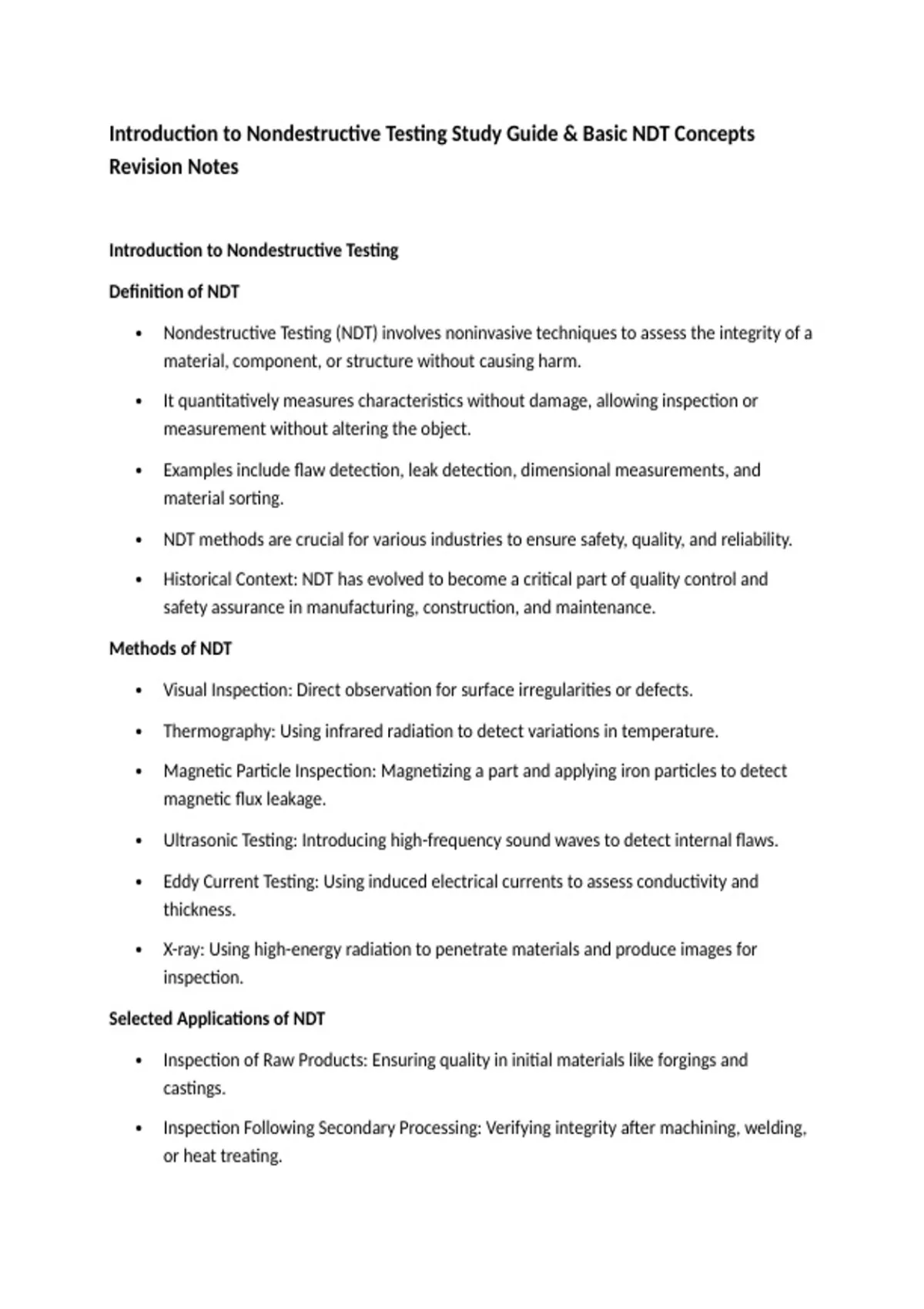

Introduction to Nondestructive Testing

Definition of NDT

 Nondestructive Testing (NDT) involves noninvasive techniques to assess the integrity of a
material, component, or structure without causing harm.

 It quantitatively measures characteristics without damage, allowing inspection or
measurement without altering the object.

 Examples include flaw detection, leak detection, dimensional measurements, and
material sorting.

 NDT methods are crucial for various industries to ensure safety, quality, and reliability.

 Historical Context: NDT has evolved to become a critical part of quality control and
safety assurance in manufacturing, construction, and maintenance.

Methods of NDT

 Visual Inspection: Direct observation for surface irregularities or defects.

 Thermography: Using infrared radiation to detect variations in temperature.

 Magnetic Particle Inspection: Magnetizing a part and applying iron particles to detect
magnetic flux leakage.

 Ultrasonic Testing: Introducing high-frequency sound waves to detect internal flaws.

 Eddy Current Testing: Using induced electrical currents to assess conductivity and
thickness.

 X-ray: Using high-energy radiation to penetrate materials and produce images for
inspection.

Selected Applications of NDT

 Inspection of Raw Products: Ensuring quality in initial materials like forgings and
castings.

 Inspection Following Secondary Processing: Verifying integrity after machining, welding,
or heat treating.

,  In-Service Damage Inspection: Detecting issues like cracking, corrosion, or erosion during
operation.

 Power Plant Inspection: Checking for corrosion in heat exchanger tubes.

 Aircraft Inspection: Finding cracks and damage during manufacturing and operation.

 Bridge Inspection: Monitoring bridges for corrosion, cracking, and structural damage.

Overview of Six Most Common NDT Methods

Visual Inspection

 Involves direct observation for surface irregularities or defects.

 Commonly used for initial assessments before more advanced NDT methods.

 Example: Inspecting welds for visible cracks or imperfections.

Liquid Penetrant Inspection

 Excess liquid is applied and then removed from the part's surface.

 The liquid penetrates surface-breaking defects, making them visible.

 Widely used for detecting cracks in non-porous materials like metals.

Magnetic Particle Inspection

 Involves magnetizing the part and applying iron particles to detect magnetic flux
leakage.

 Clustering of particles indicates the presence of defects like cracks.

 Effective for ferromagnetic materials and surface cracks.

Ultrasonic Inspection

 High-frequency sound waves are used to detect internal flaws.

 Reflected sound energy provides information on the depth and size of defects.

 Ideal for assessing the integrity of thick materials and detecting subsurface defects.

Eddy Current Testing

 Induces electrical currents to assess conductivity, thickness, and detect surface cracks.

 Surface probe scans over the part to identify discontinuities.

 Particularly useful for surface crack detection and measuring coating thickness.
