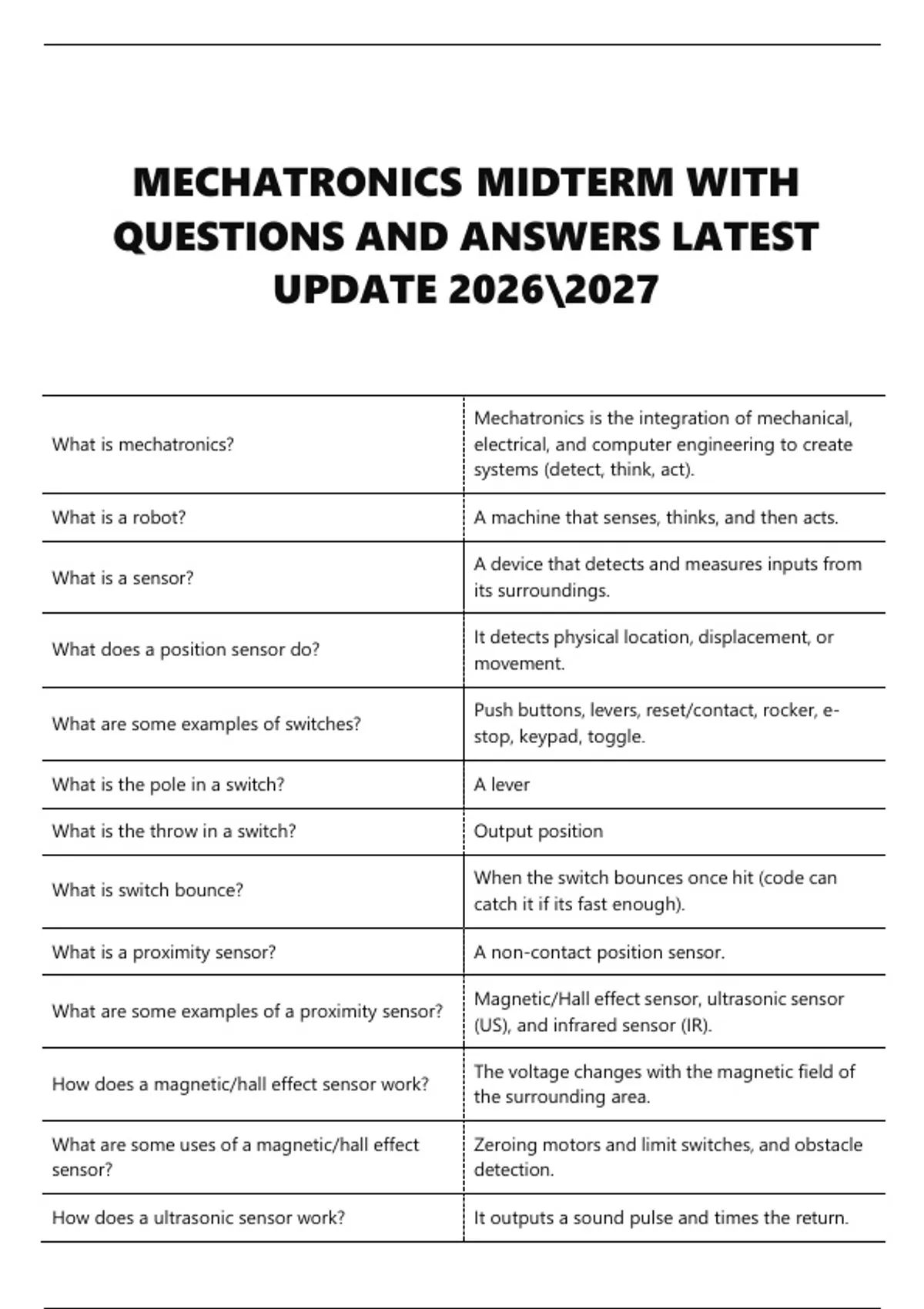

MECHATRONICS MIDTERM WITH
QUESTIONS AND ANSWERS LATEST
UPDATE 2026\2027
Mechatronics is the integration of mechanical,
What is mechatronics? electrical, and computer engineering to create
systems (detect, think, act).
What is a robot? A machine that senses, thinks, and then acts.
A device that detects and measures inputs from
What is a sensor?
its surroundings.
It detects physical location, displacement, or
What does a position sensor do?
movement.
Push buttons, levers, reset/contact, rocker, e-
What are some examples of switches?
stop, keypad, toggle.
What is the pole in a switch? A lever
What is the throw in a switch? Output position
When the switch bounces once hit (code can
What is switch bounce?
catch it if its fast enough).
What is a proximity sensor? A non-contact position sensor.
Magnetic/Hall effect sensor, ultrasonic sensor
What are some examples of a proximity sensor?
(US), and infrared sensor (IR).
The voltage changes with the magnetic field of
How does a magnetic/hall effect sensor work?
the surrounding area.
What are some uses of a magnetic/hall effect Zeroing motors and limit switches, and obstacle
sensor? detection.
How does a ultrasonic sensor work? It outputs a sound pulse and times the return.
, Obstacle detection, distance, finding material
What are some uses of the ultrasonic sensor?
properties (how thick is the metal).
How does a infrared sensor (IR) work? It outputs light and times its return.
What are some uses of the IR sensor? Detection and distance measurement.
