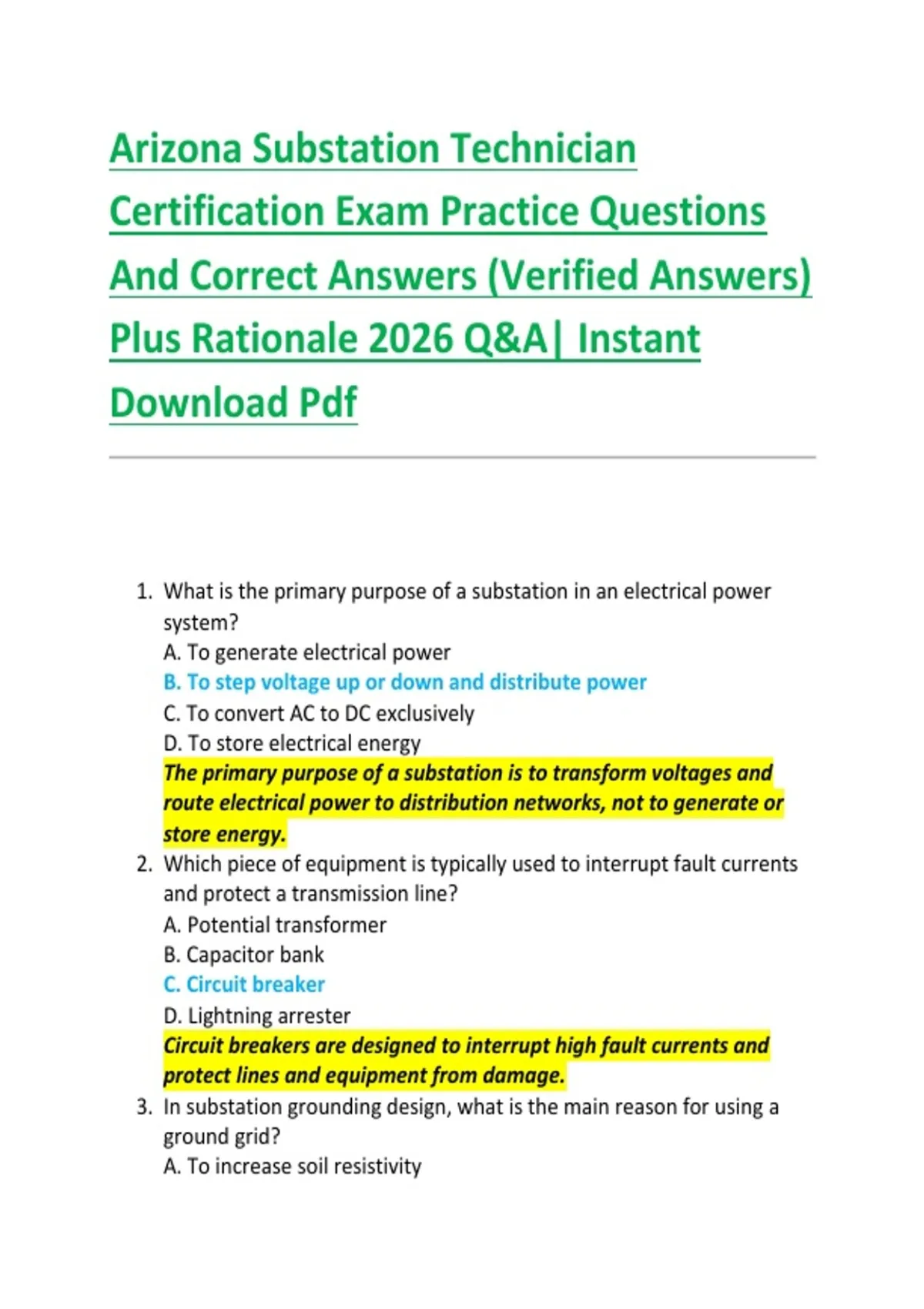

Arizona Substation Technician
Certification Exam Practice Questions
And Correct Answers (Verified Answers)
Plus Rationale 2026 Q&A| Instant
Download Pdf
1. What is the primary purpose of a substation in an electrical power
system?
A. To generate electrical power
B. To step voltage up or down and distribute power
C. To convert AC to DC exclusively
D. To store electrical energy
The primary purpose of a substation is to transform voltages and
route electrical power to distribution networks, not to generate or
store energy.
2. Which piece of equipment is typically used to interrupt fault currents
and protect a transmission line?
A. Potential transformer
B. Capacitor bank
C. Circuit breaker
D. Lightning arrester
Circuit breakers are designed to interrupt high fault currents and
protect lines and equipment from damage.
3. In substation grounding design, what is the main reason for using a
ground grid?
A. To increase soil resistivity
, B. To reduce step and touch potentials
C. To provide a low impedance path for fault current
D. To prevent corrosion
A ground grid ensures fault currents are safely dispersed into the
earth with minimal hazard to personnel or equipment.
4. What does CT saturation refer to in a current transformer used in
protection circuits?
A. The CT produces excessive output
B. The CT core cannot accurately reproduce primary current at high
magnitudes
C. The CT decreases burden impedance
D. The CT overheats due to low load
CT saturation means the magnetic core cannot linearly reproduce
high primary currents, leading to protection misoperation.
5. What is the typical function of a potential transformer (PT) in a
substation?
A. To interrupt current
B. To provide mechanical support
C. To step voltage down for metering and relaying
D. To filter harmonics
PTs reduce high line voltages to safe levels for instruments and
protective relays.
6. A disconnect switch in a substation is intended to:
A. Automatically clear faults
B. Step voltage up
C. Isolate equipment for maintenance
D. Regulate reactive power
Disconnect switches provide a visible open point to ensure equipment
is isolated and safe for maintenance.
7. Which of the following insulation types is commonly used in
high-voltage GIS (Gas Insulated Substation) equipment?
A. Paper-oil
B. Air
C. SF₆ gas
D. Vacuum
, SF₆ gas is used in GIS due to its excellent dielectric properties and
compact design advantages.
8. The term “breaker and a half” configuration refers to:
A. A load tap changer
B. A substation arrangement where three circuits are controlled by
two breakers
C. A capacitor switching scheme
D. A special transformer winding
This configuration provides reliability by connecting three circuits
through two breakers, enhancing continuity.
9. What protective relay type primarily detects overcurrent conditions?
A. Distance relay
B. Differential relay
C. Overcurrent relay
D. Voltage regulator
Overcurrent relays are designed to sense when current exceeds set
thresholds.
10. Why are CT secondary circuits required to be shorted or
connected to a burden before primary energization?
A. To reduce core losses
B. To balance voltages
C. To prevent dangerously high secondary voltages
D. To cool the CT
An open CT secondary can develop very high voltages, posing
insulation and safety hazards.
11. What is the major hazard if a substation grounding grid has
excessively high resistance?
A. Increased voltage regulation
B. Reduced current flow
C. Unsafe step and touch potentials during faults
D. Faster fault clearing
High ground resistance means fault currents may cause dangerous
voltages at the surface.
12. In transformer nomenclature, kVA rating refers to:
A. A measure of resistance
Certification Exam Practice Questions
And Correct Answers (Verified Answers)
Plus Rationale 2026 Q&A| Instant
Download Pdf
1. What is the primary purpose of a substation in an electrical power
system?
A. To generate electrical power
B. To step voltage up or down and distribute power
C. To convert AC to DC exclusively
D. To store electrical energy
The primary purpose of a substation is to transform voltages and
route electrical power to distribution networks, not to generate or
store energy.
2. Which piece of equipment is typically used to interrupt fault currents
and protect a transmission line?
A. Potential transformer
B. Capacitor bank
C. Circuit breaker
D. Lightning arrester
Circuit breakers are designed to interrupt high fault currents and
protect lines and equipment from damage.
3. In substation grounding design, what is the main reason for using a
ground grid?
A. To increase soil resistivity
, B. To reduce step and touch potentials
C. To provide a low impedance path for fault current
D. To prevent corrosion
A ground grid ensures fault currents are safely dispersed into the
earth with minimal hazard to personnel or equipment.
4. What does CT saturation refer to in a current transformer used in
protection circuits?
A. The CT produces excessive output
B. The CT core cannot accurately reproduce primary current at high
magnitudes
C. The CT decreases burden impedance
D. The CT overheats due to low load
CT saturation means the magnetic core cannot linearly reproduce
high primary currents, leading to protection misoperation.
5. What is the typical function of a potential transformer (PT) in a
substation?
A. To interrupt current
B. To provide mechanical support
C. To step voltage down for metering and relaying
D. To filter harmonics
PTs reduce high line voltages to safe levels for instruments and
protective relays.
6. A disconnect switch in a substation is intended to:
A. Automatically clear faults
B. Step voltage up
C. Isolate equipment for maintenance
D. Regulate reactive power
Disconnect switches provide a visible open point to ensure equipment
is isolated and safe for maintenance.
7. Which of the following insulation types is commonly used in
high-voltage GIS (Gas Insulated Substation) equipment?
A. Paper-oil
B. Air
C. SF₆ gas
D. Vacuum
, SF₆ gas is used in GIS due to its excellent dielectric properties and
compact design advantages.
8. The term “breaker and a half” configuration refers to:
A. A load tap changer
B. A substation arrangement where three circuits are controlled by
two breakers
C. A capacitor switching scheme
D. A special transformer winding
This configuration provides reliability by connecting three circuits
through two breakers, enhancing continuity.
9. What protective relay type primarily detects overcurrent conditions?
A. Distance relay
B. Differential relay
C. Overcurrent relay
D. Voltage regulator
Overcurrent relays are designed to sense when current exceeds set
thresholds.
10. Why are CT secondary circuits required to be shorted or
connected to a burden before primary energization?
A. To reduce core losses
B. To balance voltages
C. To prevent dangerously high secondary voltages
D. To cool the CT
An open CT secondary can develop very high voltages, posing
insulation and safety hazards.
11. What is the major hazard if a substation grounding grid has
excessively high resistance?
A. Increased voltage regulation
B. Reduced current flow
C. Unsafe step and touch potentials during faults
D. Faster fault clearing
High ground resistance means fault currents may cause dangerous
voltages at the surface.
12. In transformer nomenclature, kVA rating refers to:
A. A measure of resistance
