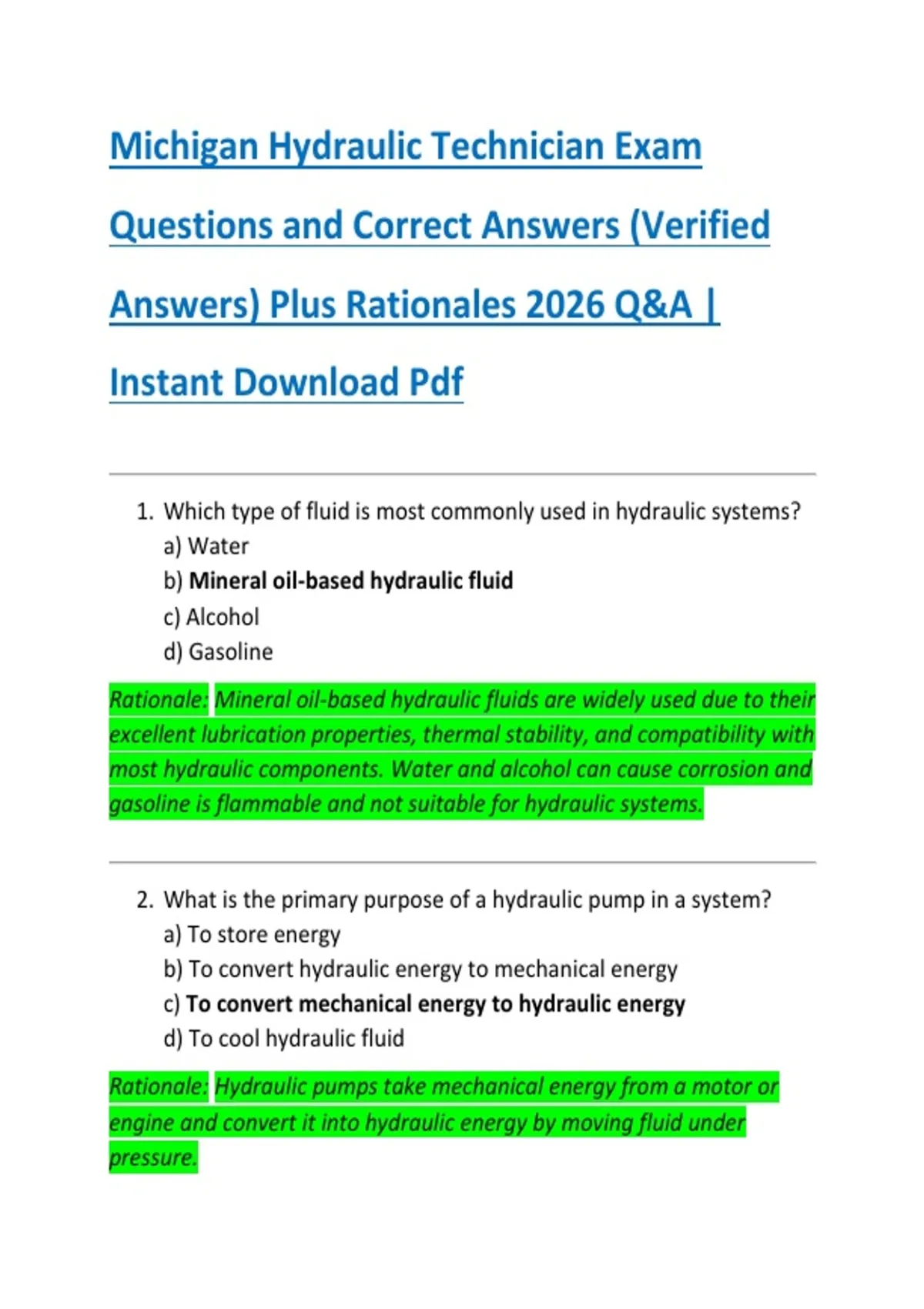

Michigan Hydraulic Technician Exam
Questions and Correct Answers (Verified
Answers) Plus Rationales 2026 Q&A |
Instant Download Pdf
1. Which type of fluid is most commonly used in hydraulic systems?
a) Water
b) Mineral oil-based hydraulic fluid
c) Alcohol
d) Gasoline
Rationale: Mineral oil-based hydraulic fluids are widely used due to their
excellent lubrication properties, thermal stability, and compatibility with
most hydraulic components. Water and alcohol can cause corrosion and
gasoline is flammable and not suitable for hydraulic systems.
2. What is the primary purpose of a hydraulic pump in a system?
a) To store energy
b) To convert hydraulic energy to mechanical energy
c) To convert mechanical energy to hydraulic energy
d) To cool hydraulic fluid
Rationale: Hydraulic pumps take mechanical energy from a motor or
engine and convert it into hydraulic energy by moving fluid under
pressure.
, 3. Which type of hydraulic pump is commonly used for high-pressure
applications?
a) Gear pump
b) Vane pump
c) Piston pump
d) Screw pump
Rationale: Piston pumps can handle very high pressures (often over
3,000 psi) and are more efficient in variable displacement applications
compared to gear or vane pumps.
4. What component is used to control the direction of hydraulic fluid
flow?
a) Pressure relief valve
b) Filter
c) Directional control valve
d) Accumulator
Rationale: Directional control valves regulate the path of hydraulic fluid,
determining the movement direction of actuators like cylinders or
motors.
5. Which hydraulic component stores energy for short-term use?
a) Pump
b) Reservoir
c) Filter
d) Accumulator
,Rationale: An accumulator stores hydraulic fluid under pressure and
releases it when needed to maintain system pressure, absorb shocks, or
provide emergency power.
6. What is the primary function of a pressure relief valve?
a) Direct fluid to actuators
b) Store hydraulic fluid
c) Protect the system from overpressure
d) Filter out contaminants
Rationale: Pressure relief valves prevent damage to components by
limiting the maximum pressure in the system. Excess fluid is diverted
back to the tank when pressure exceeds the set point.
7. Which type of hydraulic cylinder is single-acting?
a) Double-rod cylinder
b) Telescopic cylinder
c) Cylinder that extends with fluid pressure and retracts via a
spring
d) Double-acting cylinder
Rationale: Single-acting cylinders use fluid pressure for movement in
one direction only; a spring or external force returns the piston.
8. How is fluid contamination commonly measured in hydraulic
systems?
a) Voltage test
b) Temperature gauge
, c) Particle count using a contamination meter
d) Flow rate measurement
Rationale: Particle counters quantify contaminants in hydraulic fluid,
helping maintain system reliability and prevent wear.
9. What could excessive heat in a hydraulic system indicate?
a) Normal operation
b) Overloading, friction, or fluid restriction
c) Low fluid viscosity
d) Pump efficiency increase
Rationale: Excessive heat can result from overloading, blocked filters,
incorrect fluid viscosity, or friction in components, and can damage
seals and reduce system efficiency.
10. Which fluid property primarily affects hydraulic system
efficiency?
a) Color
b) Odor
c) Viscosity
d) pH
Rationale: Viscosity affects flow rate and component lubrication. Too
high or too low viscosity can lead to energy loss, cavitation, or poor
lubrication.
11. What is cavitation in a hydraulic system?
a) Excess fluid pressure
b) Hydraulic shock
