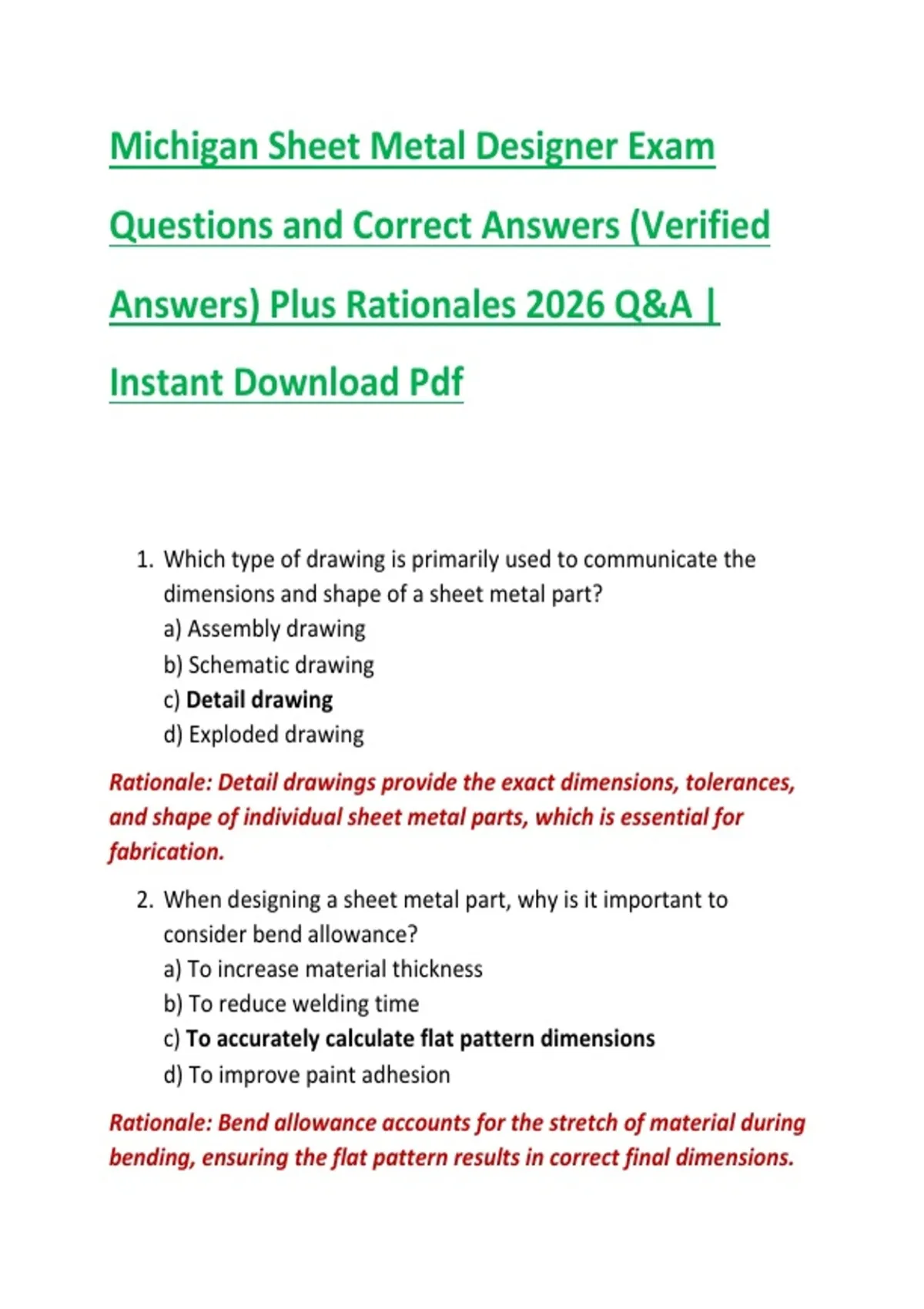

Michigan Sheet Metal Designer Exam
Questions and Correct Answers (Verified
Answers) Plus Rationales 2026 Q&A |
Instant Download Pdf
1. Which type of drawing is primarily used to communicate the
dimensions and shape of a sheet metal part?
a) Assembly drawing
b) Schematic drawing
c) Detail drawing
d) Exploded drawing
Rationale: Detail drawings provide the exact dimensions, tolerances,
and shape of individual sheet metal parts, which is essential for
fabrication.
2. When designing a sheet metal part, why is it important to
consider bend allowance?
a) To increase material thickness
b) To reduce welding time
c) To accurately calculate flat pattern dimensions
d) To improve paint adhesion
Rationale: Bend allowance accounts for the stretch of material during
bending, ensuring the flat pattern results in correct final dimensions.
, 3. Which factor most influences springback in sheet metal bending?
a) Material color
b) Material type and thickness
c) Surface finish
d) Fastener type
Rationale: Springback depends on material properties (e.g., yield
strength) and thickness, affecting how much the metal tries to return
to its original shape after bending.
4. What is the recommended minimum inside bend radius for 16-
gauge steel?
a) 0.5 times thickness
b) 1 times thickness
c) 2 times thickness
d) 4 times thickness
Rationale: Using a bend radius equal to the material thickness reduces
the risk of cracking during forming.
5. Relief cuts in sheet metal are used to:
a) Improve surface finish
b) Reduce painting time
c) Prevent tearing at sharp corners during bending
d) Increase weight
Rationale: Relief cuts allow the metal to bend without causing stress
concentrations that can lead to cracks or tears at corners.
6. Which of the following is a common material used for sheet metal
parts?
a) PVC
b) Aluminum
, c) Wood
d) Glass
Rationale: Aluminum is lightweight, corrosion-resistant, and easy to
form, making it ideal for sheet metal components.
7. When creating a flat pattern, which tool in CAD software is most
commonly used?
a) Extrude
b) Loft
c) Fillet
d) Unfold/Flatten
Rationale: The flatten or unfold tool calculates the flat layout of a
bent part, incorporating bend allowances for accurate fabrication.
8. What is the purpose of a hem in sheet metal design?
a) Reduce material thickness
b) Improve paint adhesion
c) Strengthen edges and remove sharpness
d) Increase flexibility
Rationale: Hems fold the edge of the sheet metal back onto itself,
reinforcing the edge and removing sharp edges for safety and
strength.
9. In sheet metal terminology, what does “K-factor” represent?
a) Material color
b) Ratio of neutral axis location to material thickness
c) Tooling speed
d) Bend radius
Rationale: The K-factor helps calculate bend allowance by showing
the position of the neutral axis relative to material thickness, which
affects stretching.
