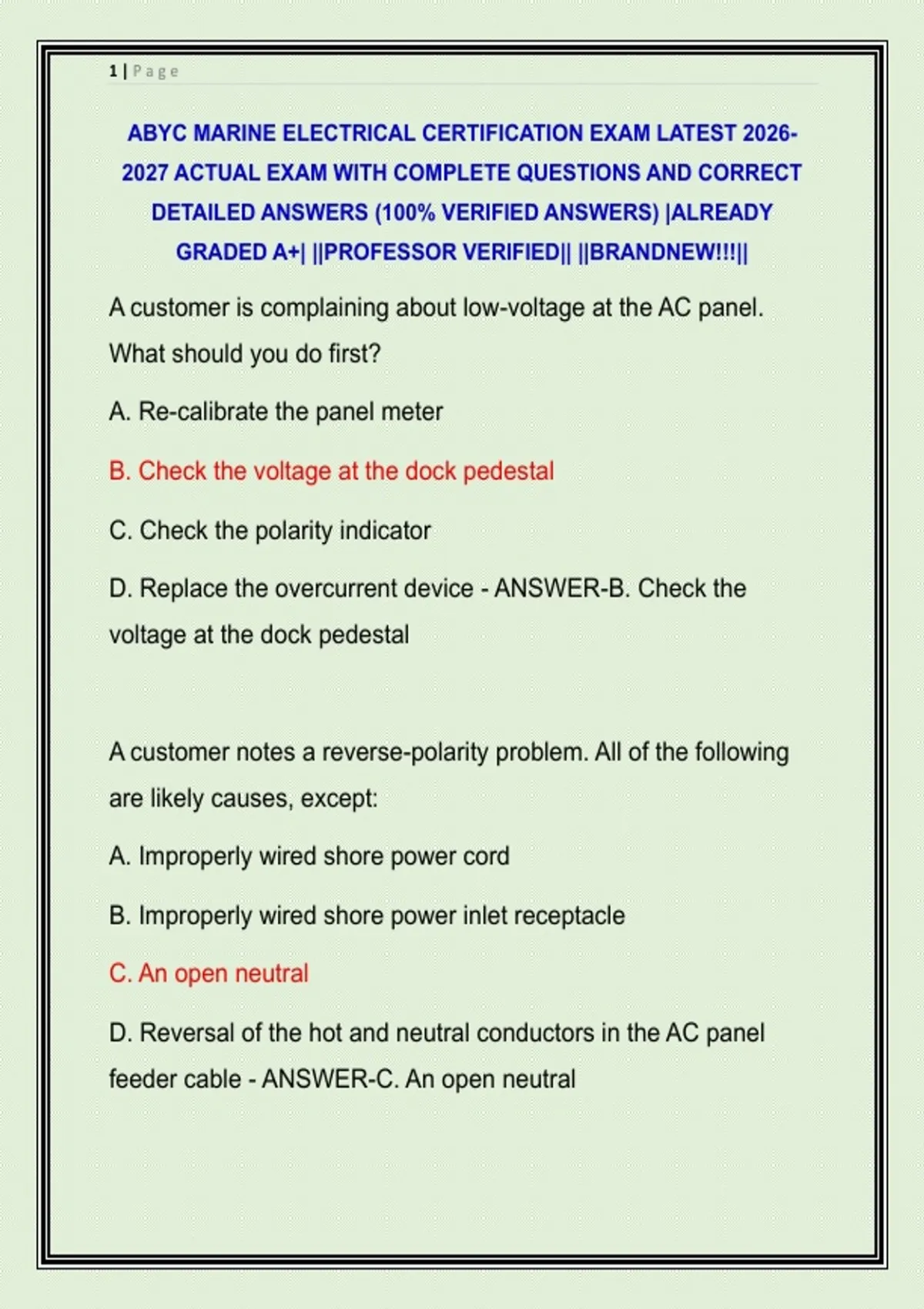

ABYC MARINE ELECTRICAL CERTIFICATION EXAM LATEST 2026-
2027 ACTUAL EXAM WITH COMPLETE QUESTIONS AND CORRECT
DETAILED ANSWERS (100% VERIFIED ANSWERS) |ALREADY
GRADED A+| ||PROFESSOR VERIFIED|| ||BRANDNEW!!!||
A customer is complaining about low-voltage at the AC panel.
What should you do first?
A. Re-calibrate the panel meter
B. Check the voltage at the dock pedestal
C. Check the polarity indicator
D. Replace the overcurrent device - ANSWER-B. Check the
voltage at the dock pedestal
A customer notes a reverse-polarity problem. All of the following
are likely causes, except:
A. Improperly wired shore power cord
B. Improperly wired shore power inlet receptacle
C. An open neutral
D. Reversal of the hot and neutral conductors in the AC panel
feeder cable - ANSWER-C. An open neutral
,2|Page
What is a likely cause of non-functioning galvanic isolator?
A. a shorted isolator diode
B. Improper current rating of the isolator diode
C. An on-board neutral-to-ground connection
D. All of the above are possible - ANSWER-D. All of the above are
possible
An "open Neutral" conductor in a 240V/120V shore power system
will most likely show up as:
A. Nuisance tripping of the AC main breaker
B. Nuisance tripping of an appliance branch circuit breaker
C. A loud humming noise emitted from the TV
D. Burned out 120V appliance - ANSWER-D. Burned out 120V
appliance
T or F: Generators that are "self-limiting" do not require
overcurrent protection if the conductors used are of sufficient
ampacity and sized for maximum current available. - ANSWER-
True (provided the generator's self-limiting current, AKA "overload
current", does not exceed 120% of it's rated current output)
,3|Page
What tool is used to test the insulation integrity of a generator
windings and what is the generally accepted Mimimal
measurement? - ANSWER-Mega ohm meter (AKA "merger"), 1 M
Ohm
A customer complains that her generator will start from the local
control panel at the generator, but not from the remote control
panel at the helm. Which of the foillowing is the most probably
cause?
A. Bad generator starter solenoid
B. Low voltage at the starter battery
C. Excessive voltage drop across the remote starter switch
D. Loose battery cable clamp at the starter battery - ANSWER-C.
Excessive voltage drop across the remote starter switch
On a brushless generator, a possible cause for low AC voltage
output under load could be:
A. High engine RPM
B. Faulty exciter winding / diode rectifier circuit
, 4|Page
C. Faulty output circuit breaker
D. Excessively high DC voltage supply - ANSWER-B. Faulty
exciter winding / diode rectifier circuit
Tech A says the ABYC has pull-test requirement for wiring
connecting the generator to onboard circuits. Tech B says pull-test
requirements are dictated by the generator manufacture. Which
one is correct?
A. Tech A
B. Tech B
C. Both Techs
D. Neither Tech - ANSWER-A. Tech A
T or F: metal AC panel boards must be grounded. - ANSWER-
True
T or F: Boats that have an inverter installed must have a warning
label noting such at the main electrical panel - ANSWER-True
