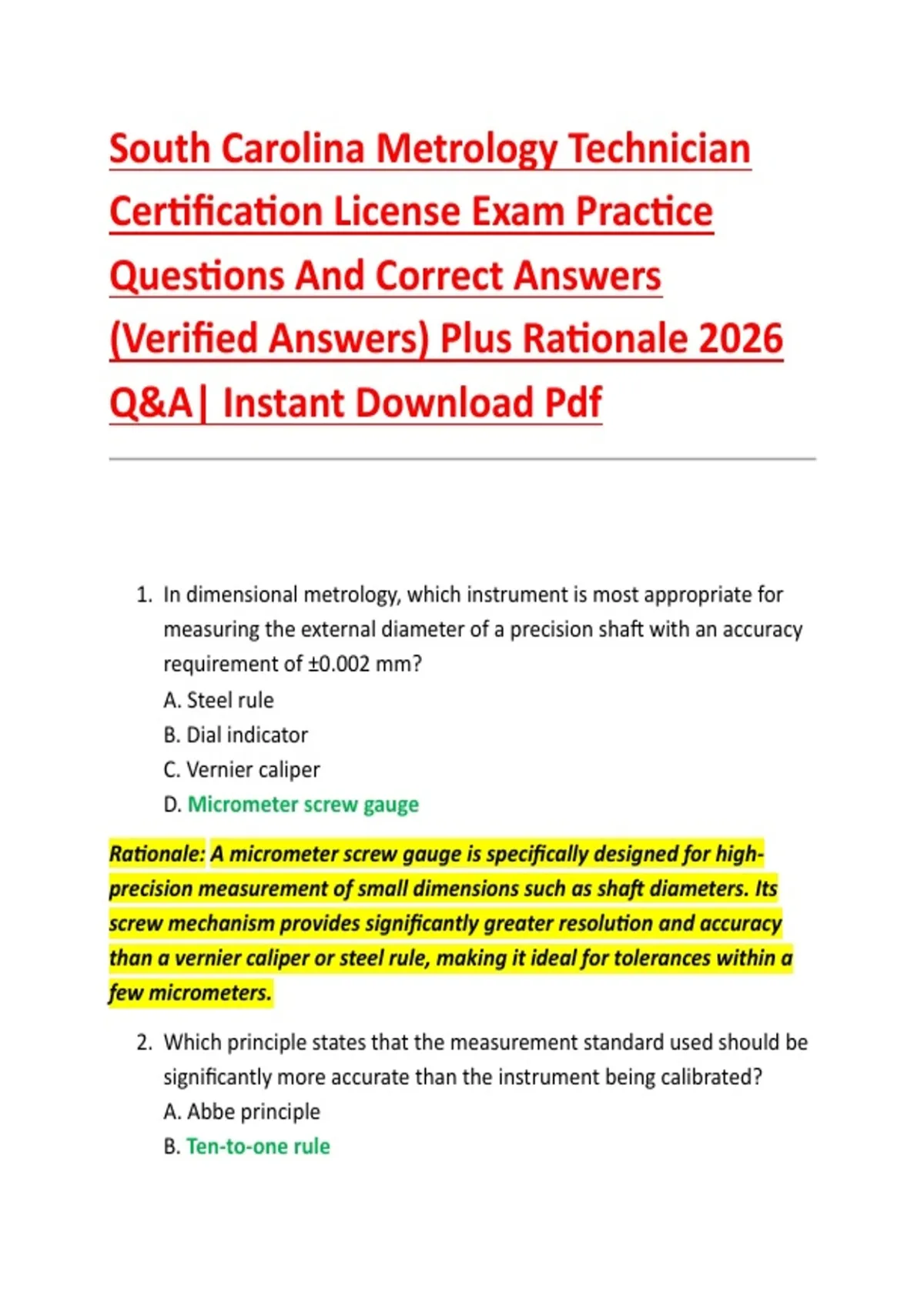

South Carolina Metrology Technician
Certification License Exam Practice
Questions And Correct Answers
(Verified Answers) Plus Rationale 2026
Q&A| Instant Download Pdf
1. In dimensional metrology, which instrument is most appropriate for
measuring the external diameter of a precision shaft with an accuracy
requirement of ±0.002 mm?
A. Steel rule
B. Dial indicator
C. Vernier caliper
D. Micrometer screw gauge
Rationale: A micrometer screw gauge is specifically designed for high-
precision measurement of small dimensions such as shaft diameters. Its
screw mechanism provides significantly greater resolution and accuracy
than a vernier caliper or steel rule, making it ideal for tolerances within a
few micrometers.
2. Which principle states that the measurement standard used should be
significantly more accurate than the instrument being calibrated?
A. Abbe principle
B. Ten-to-one rule
, C. Cosine law
D. Repeatability rule
Rationale: The ten-to-one rule in metrology states that the measurement
standard should be at least ten times more accurate than the device being
calibrated to minimize uncertainty and ensure reliable calibration results.
3. In coordinate measuring machines (CMM), the probe system is
primarily responsible for which function?
A. Controlling the machine's motor speed
B. Displaying measurement results
C. Detecting the precise contact point on the workpiece surface
D. Storing measurement programs
Rationale: The probe on a CMM detects the exact point of contact between
the probe tip and the workpiece surface. This position is recorded by the
machine’s coordinate system to determine dimensional geometry.
4. Which environmental factor most significantly affects precision
dimensional measurements in a metrology laboratory?
A. Sound vibration
B. Temperature variation
C. Lighting intensity
D. Operator experience
Rationale: Temperature changes can cause expansion or contraction of
both measuring instruments and workpieces. Because metals expand with
heat, maintaining controlled laboratory temperatures is critical for
accurate measurements.
5. The Abbe principle in metrology states that measurement accuracy
improves when the scale of the instrument is:
A. Located perpendicular to the measurement axis
B. Aligned collinearly with the dimension being measured
, C. Located far from the measured dimension
D. Calibrated annually
Rationale: The Abbe principle states that measurement error is minimized
when the measurement scale is aligned directly along the measurement
axis, eliminating angular errors and improving accuracy.
6. Which gauge is used to verify the accuracy of micrometers and
calipers?
A. Thread gauge
B. Radius gauge
C. Gauge blocks
D. Taper gauge
Rationale: Gauge blocks, also known as slip gauges, are precision ground
blocks used as dimensional standards to calibrate and verify measuring
instruments such as micrometers and calipers.
7. What is the primary purpose of a dial indicator in metrology
applications?
A. Measuring temperature fluctuations
B. Detecting small linear displacements or deviations
C. Measuring electrical resistance
D. Calibrating torque wrenches
Rationale: Dial indicators are sensitive instruments designed to measure
very small linear movements, commonly used for checking runout,
alignment, flatness, or machine setup accuracy.
8. In measurement systems, the term “repeatability” refers to:
A. Measurements taken by different operators
B. Measurements taken with different instruments
C. Consistency of results when the same operator measures the same
, part under identical conditions
D. Measurements taken over several years
Rationale: Repeatability measures how consistently a measuring system
produces the same result when the same measurement is repeated under
identical conditions by the same operator.
9. Which device is commonly used to measure the roundness or
cylindricity of a precision component?
A. Surface plate
B. Roundness tester
C. Feeler gauge
D. Plug gauge
Rationale: A roundness tester rotates the part while a probe measures
deviations from a perfect circle, allowing accurate evaluation of roundness
and cylindricity errors.
10. In metrology terminology, “traceability” means that a
measurement result can be:
A. Repeated indefinitely
B. Calculated using digital equipment
C. Linked through an unbroken chain of calibrations to national or
international standards
D. Measured by multiple operators
Rationale: Traceability ensures measurement reliability by connecting
measurement results through documented calibrations back to recognized
standards such as those maintained by national metrology institutes.
11. Which instrument is best suited for measuring the internal
diameter of a precision bore?
A. Outside micrometer
B. Steel rule
