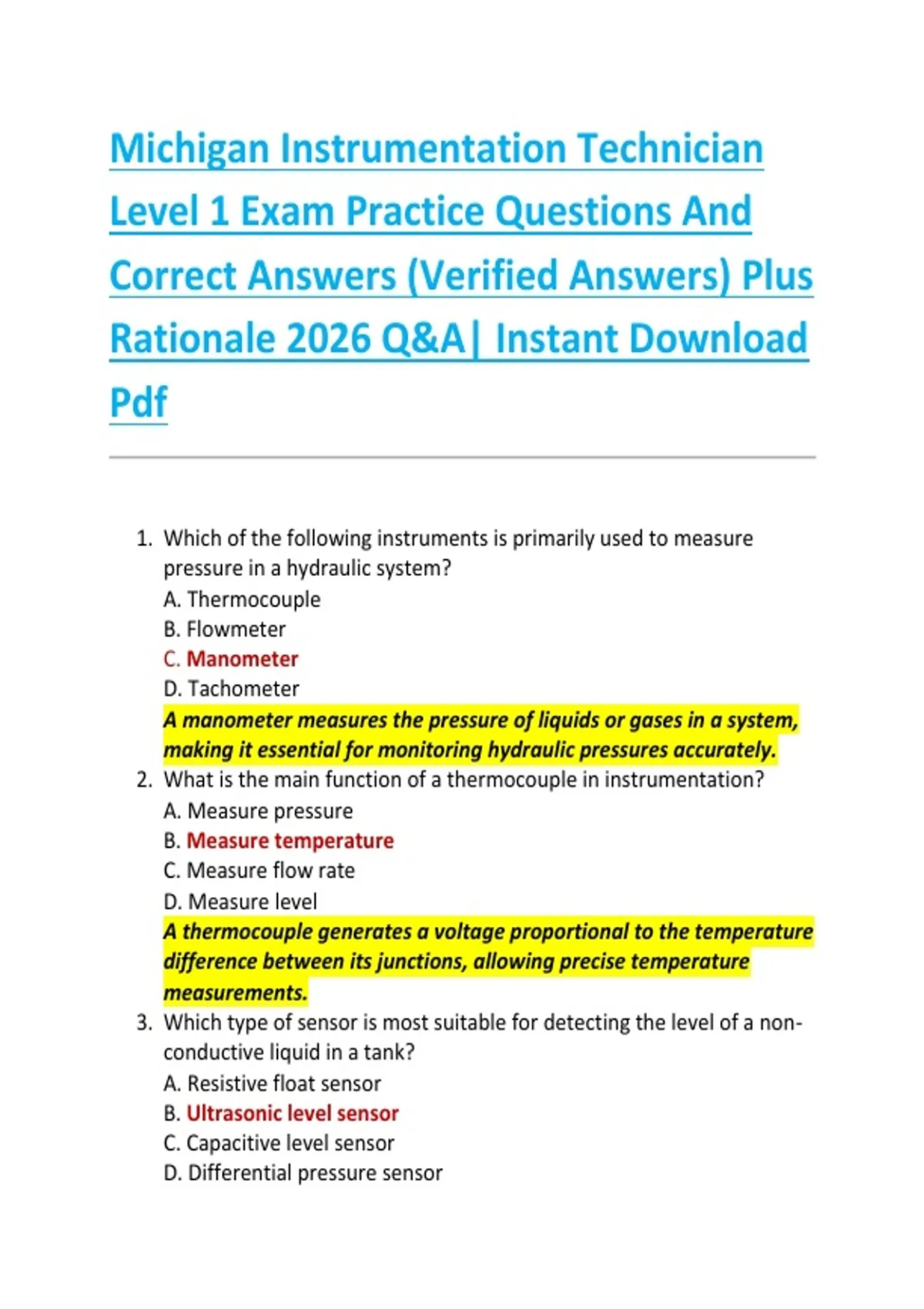

Michigan Instrumentation Technician
Level 1 Exam Practice Questions And
Correct Answers (Verified Answers) Plus
Rationale 2026 Q&A| Instant Download
Pdf
1. Which of the following instruments is primarily used to measure
pressure in a hydraulic system?
A. Thermocouple
B. Flowmeter
C. Manometer
D. Tachometer
A manometer measures the pressure of liquids or gases in a system,
making it essential for monitoring hydraulic pressures accurately.
2. What is the main function of a thermocouple in instrumentation?
A. Measure pressure
B. Measure temperature
C. Measure flow rate
D. Measure level
A thermocouple generates a voltage proportional to the temperature
difference between its junctions, allowing precise temperature
measurements.
3. Which type of sensor is most suitable for detecting the level of a non-
conductive liquid in a tank?
A. Resistive float sensor
B. Ultrasonic level sensor
C. Capacitive level sensor
D. Differential pressure sensor
, Ultrasonic sensors emit sound waves and measure the time taken for
the echo to return, making them ideal for non-conductive liquids.
4. In a 4–20 mA current loop, what does 20 mA typically represent?
A. System failure
B. Zero process value
C. Full-scale process value
D. Half-scale process value
A 4–20 mA loop standardizes 4 mA as the minimum value and 20 mA
as the maximum, corresponding to full-scale measurement.
5. Which instrument converts a physical quantity into an electrical
signal?
A. Actuator
B. Controller
C. Transducer
D. Relay
A transducer transforms physical parameters like temperature,
pressure, or flow into an electrical signal for measurement or control.
6. What is the principle behind a strain gauge?
A. Change in capacitance
B. Change in resistance due to strain
C. Change in voltage due to current
D. Change in inductance
Strain gauges measure deformation; as the material stretches or
compresses, its resistance changes, allowing stress and strain
measurement.
7. Which of the following is a common application of a differential
pressure transmitter?
A. Measuring ambient temperature
B. Flow measurement in a pipeline
C. Detecting vibration
D. Level measurement in a tank
Differential pressure transmitters measure the pressure difference
across an orifice or restriction, which can be correlated to flow rate.
8. What type of signal does an analog output device produce?
A. Binary only
, B. Continuous variable
C. Digital pulses
D. On/Off only
Analog outputs provide continuous signals, usually representing
physical quantities in a proportional manner.
9. Which component is used to convert AC signals to DC signals in
instrumentation circuits?
A. Transformer
B. Capacitor
C. Rectifier
D. Inductor
A rectifier allows current to flow in only one direction, converting
alternating current to direct current for instrumentation electronics.
10. In a pneumatic control system, what is the purpose of a
positioner?
A. To regulate fluid flow
B. To ensure the valve reaches the desired position
C. To measure temperature
D. To convert signal to digital output
Positioners adjust the actuator so that the valve moves accurately
according to the control signal, improving precision and
responsiveness.
11. Which of the following instruments is used to calibrate pressure
sensors?
A. Thermometer
B. Deadweight tester
C. Flow calibrator
D. Multimeter
A deadweight tester applies known weights to generate precise
pressures, allowing calibration of pressure-measuring instruments.
12. What is the primary advantage of a digital sensor over an analog
sensor?
A. Less expensive
B. Works without power
C. Provides direct digital output with minimal noise
