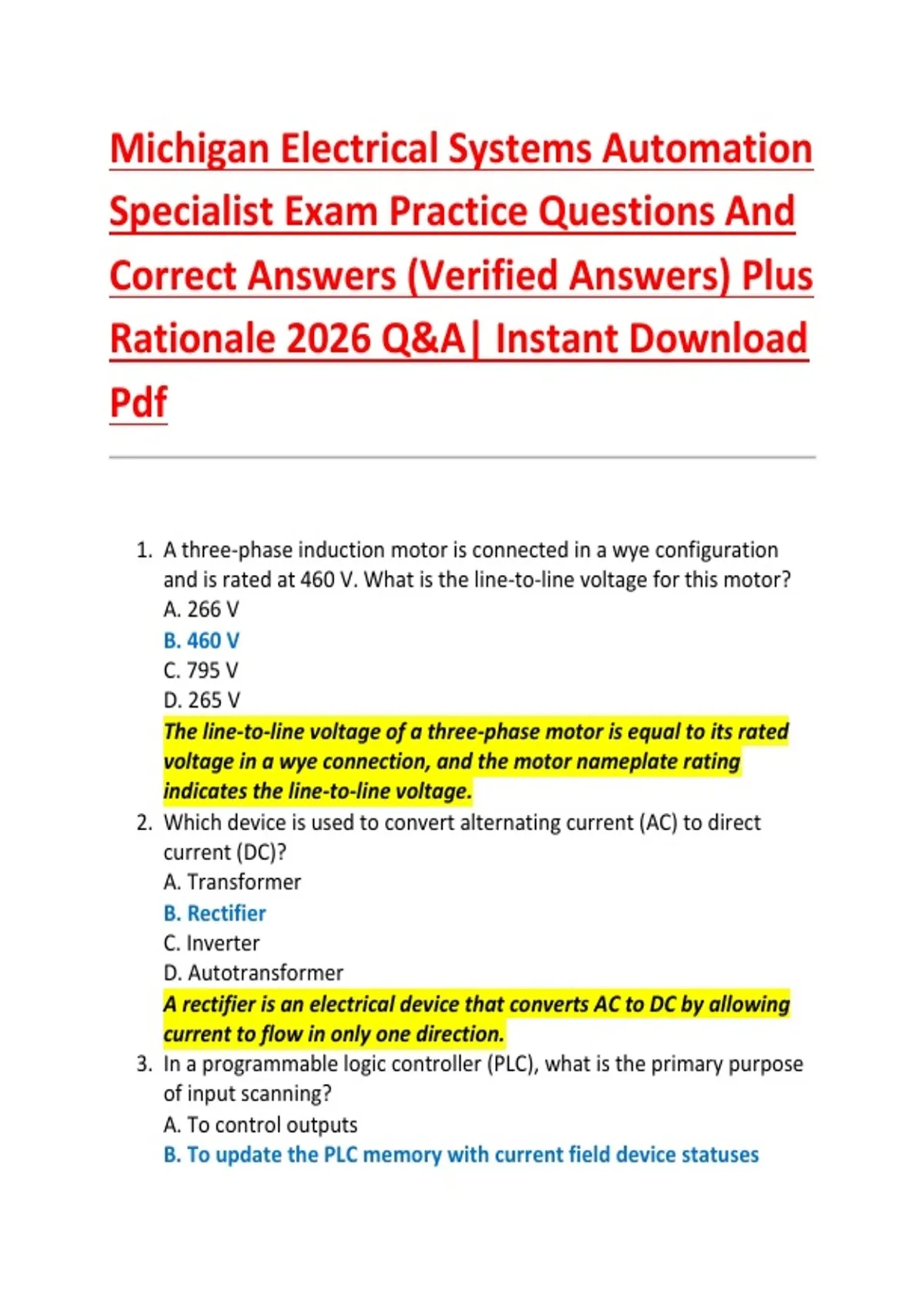

Michigan Electrical Systems Automation
Specialist Exam Practice Questions And
Correct Answers (Verified Answers) Plus
Rationale 2026 Q&A| Instant Download
Pdf
1. A three-phase induction motor is connected in a wye configuration
and is rated at 460 V. What is the line-to-line voltage for this motor?
A. 266 V
B. 460 V
C. 795 V
D. 265 V
The line-to-line voltage of a three-phase motor is equal to its rated
voltage in a wye connection, and the motor nameplate rating
indicates the line-to-line voltage.
2. Which device is used to convert alternating current (AC) to direct
current (DC)?
A. Transformer
B. Rectifier
C. Inverter
D. Autotransformer
A rectifier is an electrical device that converts AC to DC by allowing
current to flow in only one direction.
3. In a programmable logic controller (PLC), what is the primary purpose
of input scanning?
A. To control outputs
B. To update the PLC memory with current field device statuses
, C. To generate ladder logic
D. To diagnose internal faults
Input scanning updates the PLC’s program memory with the current
logic states of all input devices so the control logic can execute
accordingly.
4. What safety device protects motors from overheating due to overload
conditions?
A. Contactor
B. Circuit breaker
C. Thermal overload relay
D. Fuse
Thermal overload relays sense excessive current and heat,
interrupting the circuit if motor overload is detected to prevent
damage.
5. Which type of sensor is best for detecting metal objects without
physical contact?
A. Photoelectric
B. Inductive proximity
C. Ultrasonic
D. Capacitive
Inductive proximity sensors detect metallic objects by generating and
sensing electromagnetic fields without physical contact.
6. A motor control center (MCC) houses multiple motor starters. What is
one primary advantage of using an MCC?
A. Reduces transformer losses
B. Minimizes voltage drop
C. Centralizes motor control for easy maintenance
D. Provides emergency backup power
MCCs centralize control of multiple motors, simplifying maintenance
and reducing panel footprint.
7. When troubleshooting an automation system, a “NO” contact on a
relay stands for:
A. Normally open when energized
B. Normally open when de-energized
C. Normally off
, D. Never open
A normally open (NO) contact remains open when the relay coil is
de-energized and closes when the coil is energized.
8. In ladder logic, what does a rung with series contacts represent?
A. OR logic
B. XOR logic
C. AND logic
D. NOT logic
Series contacts in ladder logic require all conditions to be true
simultaneously, representing logical AND operations.
9. A resistor color code reads Brown-Black-Red. What is the resistance
value?
A. 10 Ω
B. 100 Ω
C. 1 kΩ
D. 10 kΩ
Brown (1), Black (0), and Red multiplier (×100) yields 10 × 100 = 1 kΩ.
10. What is the main function of a variable frequency drive (VFD)?
A. Convert DC to AC
B. Step-down voltage
C. Control motor speed by varying frequency
D. Provide motor overload protection
VFDs control the speed of AC motors by adjusting the output
frequency and voltage to the motor.
11. Which of the following is a valid safety practice when working on
live electrical equipment?
A. Wear gloves only
B. Lockout/tagout the equipment before working
C. Disable only the control circuit
D. Work quickly to minimize exposure
Lockout/tagout procedures ensure that electrical energy is isolated
and cannot be restored during maintenance.
12. What is the purpose of a photoelectric sensor in an automated
system?
A. Detect temperature
