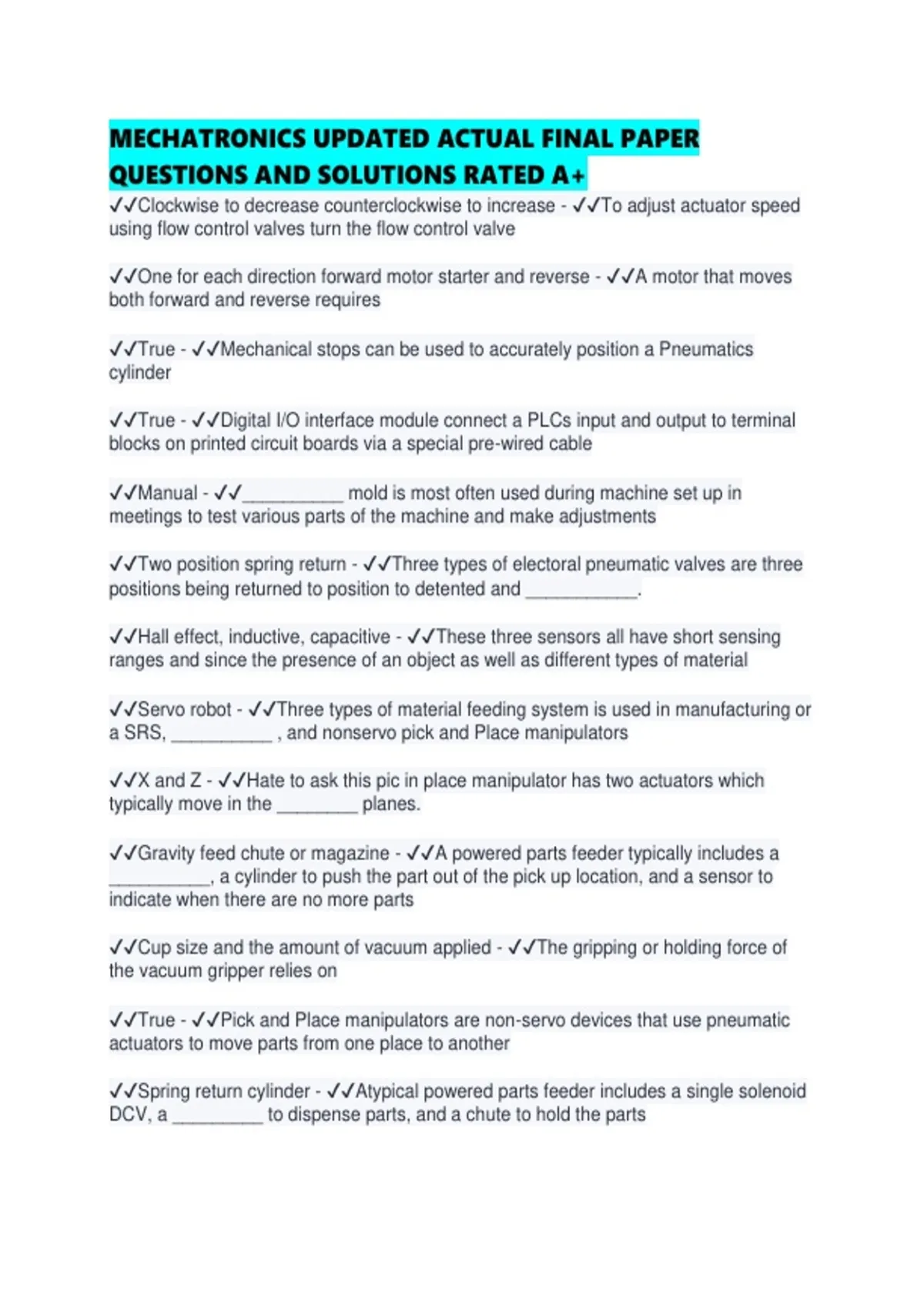

MECHATRONICS UPDATED ACTUAL FINAL PAPER
QUESTIONS AND SOLUTIONS RATED A+
✔✔Clockwise to decrease counterclockwise to increase - ✔✔To adjust actuator speed
using flow control valves turn the flow control valve
✔✔One for each direction forward motor starter and reverse - ✔✔A motor that moves
both forward and reverse requires
✔✔True - ✔✔Mechanical stops can be used to accurately position a Pneumatics
cylinder
✔✔True - ✔✔Digital I/O interface module connect a PLCs input and output to terminal
blocks on printed circuit boards via a special pre-wired cable
✔✔Manual - ✔✔__________ mold is most often used during machine set up in
meetings to test various parts of the machine and make adjustments
✔✔Two position spring return - ✔✔Three types of electoral pneumatic valves are three
positions being returned to position to detented and ___________.
✔✔Hall effect, inductive, capacitive - ✔✔These three sensors all have short sensing
ranges and since the presence of an object as well as different types of material
✔✔Servo robot - ✔✔Three types of material feeding system is used in manufacturing or
a SRS, __________ , and nonservo pick and Place manipulators
✔✔X and Z - ✔✔Hate to ask this pic in place manipulator has two actuators which
typically move in the ________ planes.
✔✔Gravity feed chute or magazine - ✔✔A powered parts feeder typically includes a
__________, a cylinder to push the part out of the pick up location, and a sensor to
indicate when there are no more parts
✔✔Cup size and the amount of vacuum applied - ✔✔The gripping or holding force of
the vacuum gripper relies on
✔✔True - ✔✔Pick and Place manipulators are non-servo devices that use pneumatic
actuators to move parts from one place to another
✔✔Spring return cylinder - ✔✔Atypical powered parts feeder includes a single solenoid
DCV, a _________ to dispense parts, and a chute to hold the parts
, ✔✔Electrical - ✔✔A vacuum switch converts a sense pressure or vacuum into a
____________ signal that can be used as an input to controller
✔✔Pick and place device - ✔✔A pic and please feeding station typically combines the
use of a powered parts feeder and a
✔✔Thermal - ✔✔Shock absorbers convert the kinetic energy of an actuator into
__________ energy that is transferred through its body to the atmosphere
✔✔Manual auto reset - ✔✔Three most common operating modes for a pick and place
✔✔True - ✔✔They go no go gauging station can inspect parts while stationary or while
in motion
✔✔PLC - ✔✔How does a part reject module know that a para should be rejected
✔✔Limit switches - ✔✔Nonservo traverse access includes ___________used as end of
travel sensors
✔✔Precise positioning - ✔✔A synchronous drive belt is often used to transmit power for
applications that require
✔✔Analog - ✔✔And ultrasonic sensor is an example of a ____________ sensor
✔✔Selector switches - ✔✔Operator panels traditional use __________ to select a
Mode of an operation
✔✔Tolerance - ✔✔True
✔✔Return to BOT - ✔✔Nonservo traverse access typically is the limit switch along with
a heart stopped a signal PLC to stop motor and
✔✔Friction - ✔✔A clutch is a mechanical device that uses either mechanical, magnetic,
hydraulic, pneumatic, or __________ connections to engage and disengage two
rotating members
✔✔Magnetic read switches - ✔✔Often a part transverse cylinder is equipped with to
__________ to detect the cylinders position
✔✔Homed - ✔✔Before a machine can run in automatic mode I must first be
✔✔Worm gear - ✔✔When a stepper motor is mounted to the shaft is parallel to the
indexing table a _________ drivers use between the motor in the in the table
