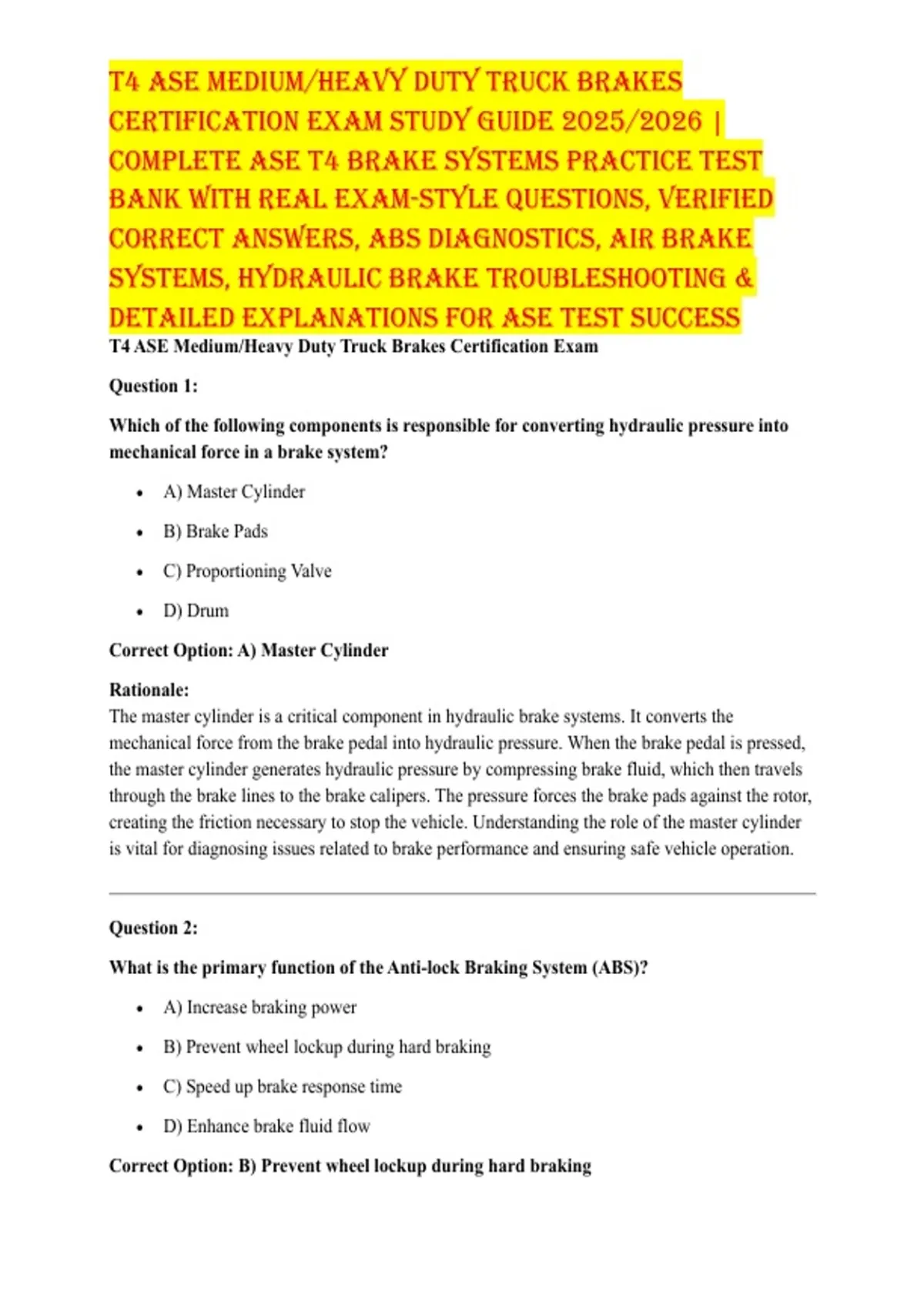

T4 ASE MEdiuM/HEAvy duTy Truck BrAkES
cErTificATion ExAM STudy GuidE 2025/2026 |
coMplETE ASE T4 BrAkE SySTEMS prAcTicE TEST
BAnk wiTH rEAl ExAM-STylE QuESTionS, vErifiEd
corrEcT AnSwErS, ABS diAGnoSTicS, Air BrAkE
SySTEMS, HydrAulic BrAkE TrouBlESHooTinG &
dETAilEd ExplAnATionS for ASE TEST SuccESS
T4 ASE Medium/Heavy Duty Truck Brakes Certification Exam
Question 1:
Which of the following components is responsible for converting hydraulic pressure into
mechanical force in a brake system?
• A) Master Cylinder
• B) Brake Pads
• C) Proportioning Valve
• D) Drum
Correct Option: A) Master Cylinder
Rationale:
The master cylinder is a critical component in hydraulic brake systems. It converts the
mechanical force from the brake pedal into hydraulic pressure. When the brake pedal is pressed,
the master cylinder generates hydraulic pressure by compressing brake fluid, which then travels
through the brake lines to the brake calipers. The pressure forces the brake pads against the rotor,
creating the friction necessary to stop the vehicle. Understanding the role of the master cylinder
is vital for diagnosing issues related to brake performance and ensuring safe vehicle operation.
Question 2:
What is the primary function of the Anti-lock Braking System (ABS)?
• A) Increase braking power
• B) Prevent wheel lockup during hard braking
• C) Speed up brake response time
• D) Enhance brake fluid flow
Correct Option: B) Prevent wheel lockup during hard braking
,Rationale:
The primary function of the Anti-lock Braking System (ABS) is to prevent wheel lockup during
hard braking scenarios. When a driver applies the brakes forcefully, ABS automatically
modulates brake pressure to each wheel, allowing them to continue rotating. This enables the
driver to maintain steering control during emergency stops, significantly reducing the risk of
skidding or losing control of the vehicle. Additionally, ABS helps shorten stopping distances on
slippery surfaces. Understanding ABS functionality is crucial for technicians in diagnosing and
repairing braking systems equipped with this technology.
Question 3:
In an air brake system, what does the term "air pressure cut-out" refer to?
• A) When the compressor stops working
• B) The highest pressure limit for the air system
• C) The point where air supply is depleted
• D) The amount of air delivered to the brake chambers
Correct Option: B) The highest pressure limit for the air system
Rationale:
The "air pressure cut-out" refers to the predetermined maximum pressure limit in the air brake
system that the compressor will achieve before shutting off. Typically, this is set around 120 to
130 psi. When the air reservoir reaches this pressure, the compressor stops working to prevent
over-pressurization, which could damage the system. Understanding the cut-out pressure is
crucial for diagnosing compressor issues and ensuring the air brake system operates safely within
its designed parameters.
Question 4:
What causes brake fade in heavy-duty vehicles?
• A) Overheating of the brake pads
• B) High brake fluid temperatures
• C) Contaminated brake fluid
• D) Insufficient rotor thickness
Correct Option: A) Overheating of the brake pads
,Rationale:
Brake fade occurs primarily due to the overheating of brake pads, leading to a reduction in their
ability to create friction. In heavy-duty vehicles, prolonged braking, especially when descending
hills or in stop-and-go traffic, can cause the brake pads to reach temperatures where their
material degrades or becomes less effective. This can lead to a significant decrease in braking
performance, increasing stopping distances and jeopardizing safety. Proper brake system
maintenance, including regular inspections of brake pad material and heat dissipation
components, is essential to prevent brake fade.
Question 5:
Which device prevents excessive pressure build-up in an air brake system?
• A) Governor
• B) Pressure Regulator
• C) Relay Valve
• D) Modulator
Correct Option: A) Governor
Rationale:
The governor in an air brake system monitors the air pressure and regulates it to prevent
excessive build-up. It allows the compressor to operate at an optimal level and shuts it off once
the air tank reaches the cut-out pressure. This is crucial for maintaining the integrity of the air
brake system and ensuring consistent brake performance without the risk of over-pressurization.
Question 6:
What happens to brake fluid when it absorbs moisture?
• A) Increases boiling point
• B) Decreases corrosion
• C) Lowers boiling point
• D) Enhances viscosity
Correct Option: C) Lowers boiling point
Rationale:
When brake fluid absorbs moisture, it lowers the boiling point of the fluid, which can lead to
vapor formation under heavy braking conditions. This vapor can compress, resulting in brake
failure or reduced braking efficiency, a situation known as "brake fade." Regularly checking and
, replacing brake fluid, especially in systems that use hygroscopic fluids, is vital for maintaining
optimal braking performance and safety.
Question 7:
What is the purpose of a proportioning valve in a brake system?
• A) Ensure equal pressure to all wheels
• B) Adjust brake fluid flow to individual wheels
• C) Increase pedal sensitivity
• D) Prevent rear wheel lock-up
Correct Option: D) Prevent rear wheel lock-up
Rationale:
A proportioning valve plays a crucial role in managing the brake pressure distribution between
the front and rear wheels. It is designed to reduce the brake pressure to the rear wheels during
heavy braking, preventing rear wheel lock-up. This ensures stability and control during braking,
preventing fishtailing or loss of traction in heavy-duty vehicles where weight distribution can
greatly affect braking performance.
Question 8:
Which indicator light on the dashboard indicates a problem with the braking system?
• A) Battery Light
• B) Oil Pressure Light
• C) Brake Warning Light
• D) ABS Light
Correct Option: C) Brake Warning Light
Rationale:
The brake warning light on the dashboard serves as an essential indicator that something is amiss
within the braking system. It may signify low brake fluid levels, worn brake pads, or a general
malfunction in the brake system. Understanding dashboard indicators helps drivers to promptly
address potential issues before they escalate into serious safety concerns.
