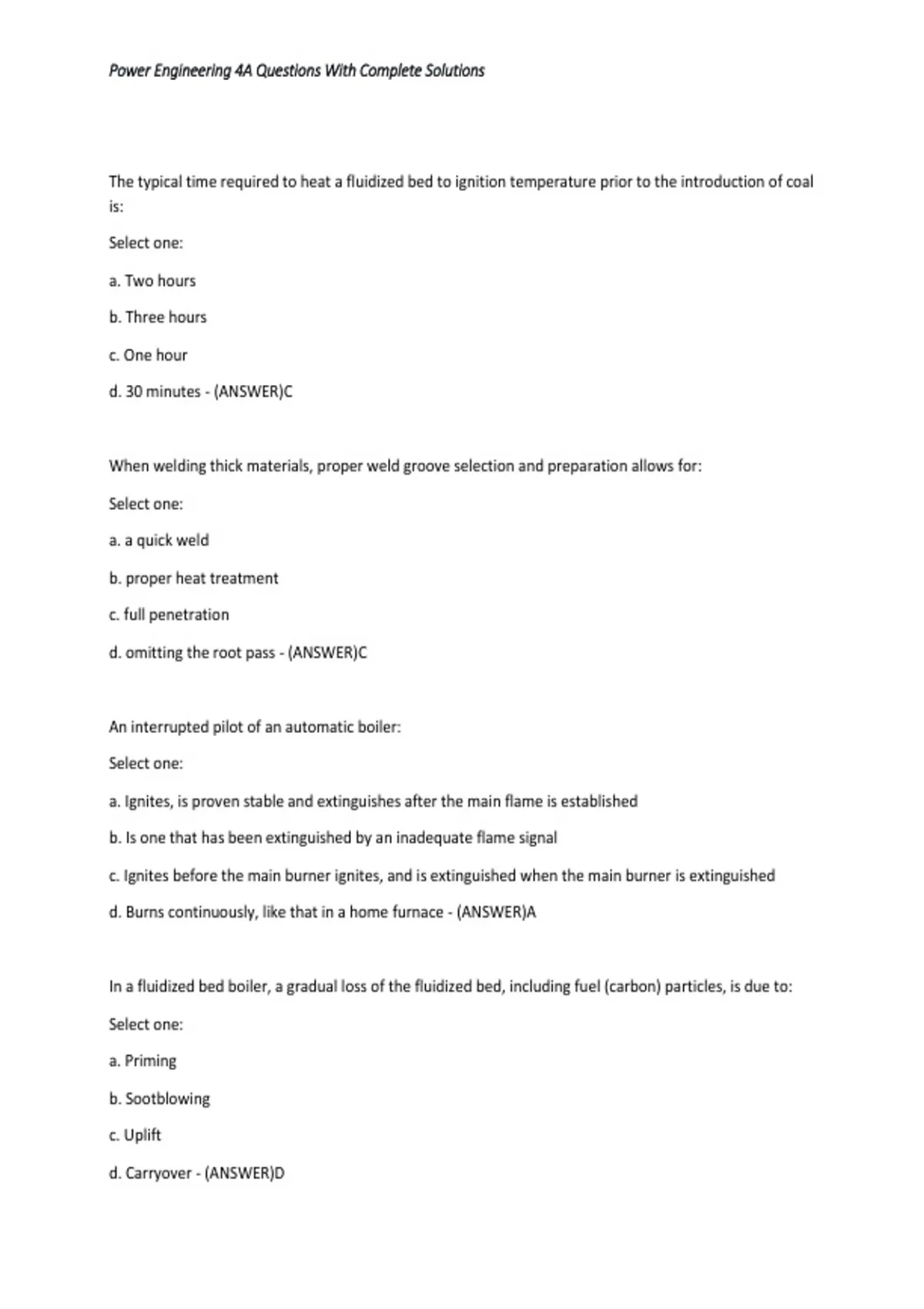

Power Engineering 4A Questions With Complete Solutions
The typical time required to heat a fluidized bed to ignition temperature prior to the introduction of coal
is:
Select one:
a. Two hours
b. Three hours
c. One hour
d. 30 minutes - (ANSWER)C
When welding thick materials, proper weld groove selection and preparation allows for:
Select one:
a. a quick weld
b. proper heat treatment
c. full penetration
d. omitting the root pass - (ANSWER)C
An interrupted pilot of an automatic boiler:
Select one:
a. Ignites, is proven stable and extinguishes after the main flame is established
b. Is one that has been extinguished by an inadequate flame signal
c. Ignites before the main burner ignites, and is extinguished when the main burner is extinguished
d. Burns continuously, like that in a home furnace - (ANSWER)A
In a fluidized bed boiler, a gradual loss of the fluidized bed, including fuel (carbon) particles, is due to:
Select one:
a. Priming
b. Sootblowing
c. Uplift
d. Carryover - (ANSWER)D
,Power Engineering 4A Questions With Complete Solutions
The test material for a penetrant test (PT) must be:
Select one:
a. ferrous
b. non-ferrous
c. porous
d. non-porous - (ANSWER)D
If your plant maintenance department neglects oil changes, filter replacement, and bearing lubrication,
your plant will eventually need more unscheduled ___________ maintenance.
Select one:
a. Emergency
b. Preventative
c. Routine
d. Project - (ANSWER)A
The holder of a Certificate of Competency, the classification of which authorises him or her to act as a
engineer, may sketch, construct, install, operate, repair, and give advice on all things pertaining to any
_____ in which that person is employed.
Select one:
a. Welding shop
b. Power plant
c. Fish plant
d. Hydro plant - (ANSWER)B
Which of the following is a single pass boiler?
Select one:
a. HRT
,Power Engineering 4A Questions With Complete Solutions
b. Scotch marine
c. Packaged firetube
d. Vertical firetube - (ANSWER)D
Iron and steel may be magnetized by rubbing the metal with a:
Select one:
a. Stainless steel
b. Steel wool
c. Brass rod
d. Magnet - (ANSWER)D
The apparatus which converts current signals to pneumatic and pneumatic to current signals is called a:
Select one:
a. Transformer
b. Inverter
c. Transducer
d. Converter - (ANSWER)C
Before a steam or air atomizing oil burner is removed from a boiler furnace, the burner should be blown
out with:
Select one:
a. Steam or air
b. High temperature solvent
c. Coal oil
d. Solvent - (ANSWER)A
Which of the following emissions is NOT considered a gaseous pollutant?
Select one:
, Power Engineering 4A Questions With Complete Solutions
a. Nitrogen
b. Methane
c. Sulphur oxides
d. Carbon monoxide - (ANSWER)A
A thermostatic steam trap is controlled by the:
Select one:
a. Bucket, which flips when filled with condensate
b. Temperature difference between condensate and steam
c. air pressure built up on top of disk
d. Difference in velocity between condensate and steam - (ANSWER)B
A typical application of forged steel in a power plant is:
Select one:
a. Ash handling systems
b. Superheated steam lines
c. Superheated steam lines
d. Pipe fittings - (ANSWER)D
A disadvantage of an electric boiler is that it:
Select one:
a. Is very expensive to operate
b. Is inefficient
c. Requires alternating current
d. Has no chimney - (ANSWER)A
The amount of air required to supply just enough oxygen for complete combustion is called the:
