NCCER Level 1 Module 10 Basic Electrical
Construction Drawings Questions
Complete With 100% Outlined Answers

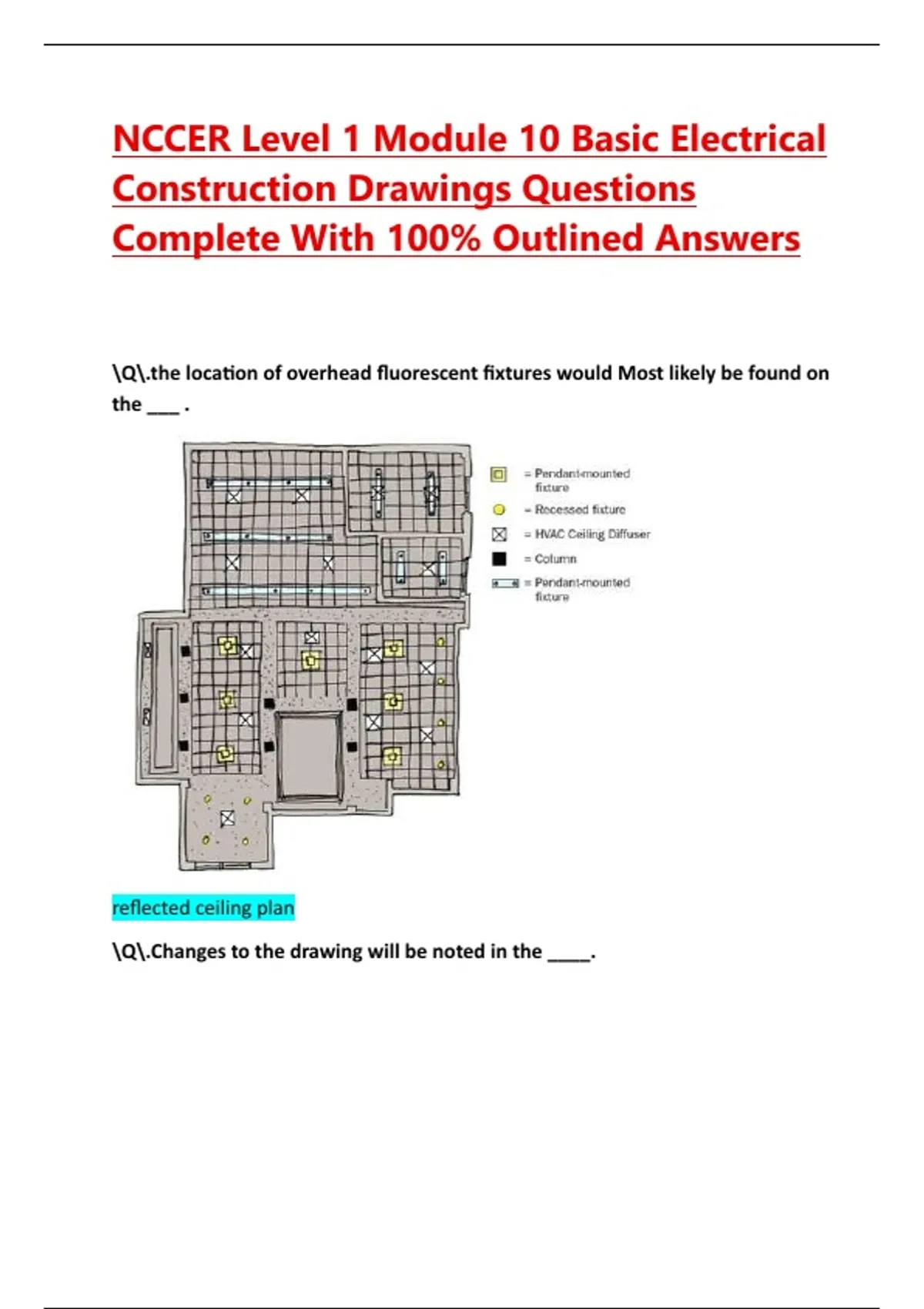

\Q\.the location of overhead fluorescent fixtures would Most likely be found on
the ___ .
reflected ceiling plan
\Q\.Changes to the drawing will be noted in the ____.
,revision block
\Q\.a cutaway view of a building or object is known as a(n)______.
section drawing
\Q\.Elevation views are MOST likely to show _____.
,Doors and Windows
\Q\.dimension of 0"-3"
, c
4'-9" dimension
A
1'-6" dimension
B
\Q\.Extension lines that point from a note to a feature on a drawing are called
____.
leaders
\Q\.A metric drawing scale of 1:100 typically depicts units in ____.
millimeters
\Q\.Using a 1:10 scale on an engineer's scale, a measurement of 3" on a drawing
would equal
30 feet
