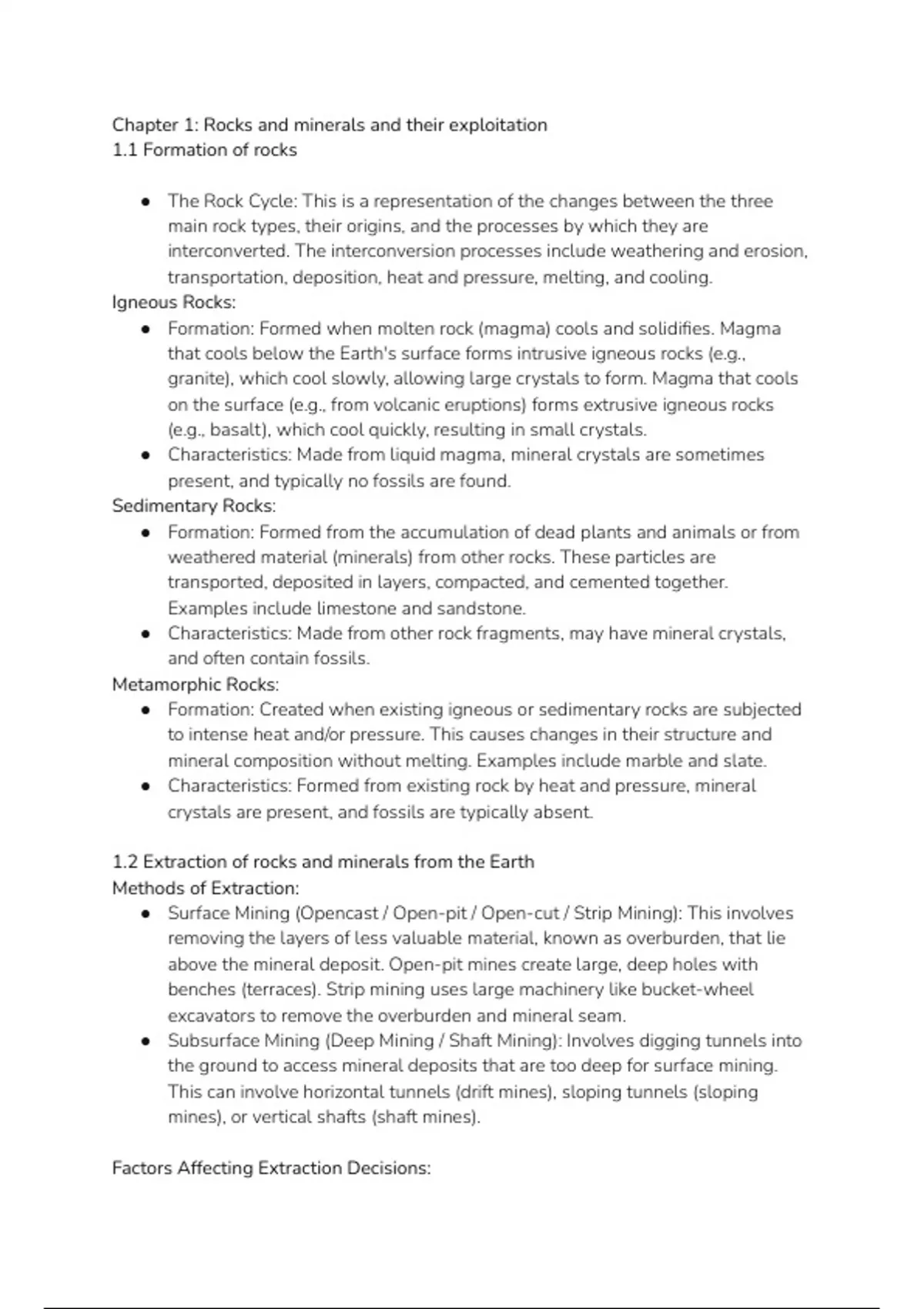

Chapter 1: Rocks and minerals and their exploitation
1.1 Formation of rocks
● The Rock Cycle: This is a representation of the changes between the three
main rock types, their origins, and the processes by which they are
interconverted. The interconversion processes include weathering and erosion,
transportation, deposition, heat and pressure, melting, and cooling.
Igneous Rocks:
● Formation: Formed when molten rock (magma) cools and solidifies. Magma
that cools below the Earth's surface forms intrusive igneous rocks (e.g.,
granite), which cool slowly, allowing large crystals to form. Magma that cools
on the surface (e.g., from volcanic eruptions) forms extrusive igneous rocks
(e.g., basalt), which cool quickly, resulting in small crystals.
● Characteristics: Made from liquid magma, mineral crystals are sometimes
present, and typically no fossils are found.
Sedimentary Rocks:
● Formation: Formed from the accumulation of dead plants and animals or from
weathered material (minerals) from other rocks. These particles are
transported, deposited in layers, compacted, and cemented together.
Examples include limestone and sandstone.
● Characteristics: Made from other rock fragments, may have mineral crystals,
and often contain fossils.
Metamorphic Rocks:
● Formation: Created when existing igneous or sedimentary rocks are subjected
to intense heat and/or pressure. This causes changes in their structure and
mineral composition without melting. Examples include marble and slate.
● Characteristics: Formed from existing rock by heat and pressure, mineral
crystals are present, and fossils are typically absent.
1.2 Extraction of rocks and minerals from the Earth
Methods of Extraction:
● Surface Mining (Opencast / Open-pit / Open-cut / Strip Mining): This involves
removing the layers of less valuable material, known as overburden, that lie
above the mineral deposit. Open-pit mines create large, deep holes with
benches (terraces). Strip mining uses large machinery like bucket-wheel
excavators to remove the overburden and mineral seam.
● Subsurface Mining (Deep Mining / Shaft Mining): Involves digging tunnels into
the ground to access mineral deposits that are too deep for surface mining.
This can involve horizontal tunnels (drift mines), sloping tunnels (sloping
mines), or vertical shafts (shaft mines).
Factors Affecting Extraction Decisions:
, ● Exploration: Locating mineral deposits using techniques like remote sensing
(aerial photography, satellite images) and geophysics (seismic waves).
● Geology: The type and quality of the ore (mineral concentration). High-grade
ores are more valuable.
● Accessibility: Ease of reaching the site and transporting the extracted minerals.
Remote locations increased transport costs.
● Environmental Impact Assessment (EIA): Studies conducted to predict and
assess potential environmental consequences of mining. Required by law in
some cases.
● Supply and Demand: The relationship between the amount of mineral
available (supply) and the amount wanted by consumers (demand) influences
prices and profitability. High demand can make extraction profitable even for
lower-grade ores.
● Climate: Affects operational conditions and transport.
1.3 Impact of rock and mineral extraction
Environmental Impacts:
● Loss of Habitat: Large-scale removal of vegetation and destruction of
ecosystems.
● Noise Pollution: From mining machinery.
● Water Pollution: Acid mine drainage (acidic water with dissolved metals).
Siltation of rivers. Toxic substances leaching from waste into water. This can
lead to bioaccumulation in food chains.
● Land/Visual Pollution: Large spoil heaps (piles of overburden). Degradation of
land and landscapes.
● Air Pollution: Dust and harmful chemical components (e.g., from blasting).
Economic Impacts:
● Employment Opportunities: Creates direct jobs in mining and indirect jobs in
related industries (transport, manufacturing).
● Improvements in Local/National Economy: Boosts GDP, increases tax revenue,
improves infrastructure, and provides foreign exchange from exports.
Social Impacts:
● Resettlement: Displacement of local communities due to mining operations.
● Health Risks: Exposure to dust and toxic substances can cause respiratory
diseases and other health problems for workers and local residents.
1.4 Managing the impact of rock and mineral extraction
Strategies for Restoring Damaged Landscapes:
● Safe Disposal of Mining Waste: Proper management of spoil heaps and
tailings (finely ground rock waste) to prevent pollution and land degradation.
, ● Land Restoration:
*Bioremediation: Using organisms (e.g., plants, microorganisms) to remove
pollutants from contaminated soil and water.
*Soil Improvement: Reshaping spoil heaps, replacing topsoil, and adding fertilisers to
make the land suitable for vegetation.
*Tree Planting: Revegetating the area with trees and other native plant species.
*Making Lakes and Nature Reserves: Converting abandoned mining sites into
recreational areas or conservation zones, such as the former granite quarry in
Bornholm, Denmark.
*Using as Landfill Sites: Filling old mine pits with waste, which can then be covered
and rehabilitated.
1.5 Sustainable use of rocks and minerals
Definitions:
● Sustainable Resource: A resource that can be replaced or used continuously.
● Sustainable Development: Development that meets the needs of the present
without compromising the ability of future generations to meet their own
needs.
Strategies for Sustainable Use:
● Increased Efficiency of Extraction: Improving mining techniques to extract more
minerals from a given amount of ore, and choosing more efficient methods
(e.g., deep mining can sometimes be more efficient than open-pit for certain
coal seams).
● Increased Efficiency of Use: Designing products that require less material,
promoting the repair and reuse of products, and manufacturing more durable
goods.
● Recycling Rocks and Minerals: Recovering and reusing materials like steel,
aluminium, and copper from scrap to reduce the need for new extraction. This
saves energy and reduces waste.
● Legislation: Implementing laws and regulations to control mineral extraction,
promote responsible disposal, and encourage recycling.
Chapter 2: Energy and the environment
2.1 Fossil fuel formation
● Fossil Fuels: Energy sources formed over millions of years from the buried
remains of living organisms.
, ● Formation of Coal: Formed from dead plant material accumulated in swamps
and buried under sediment layers. Over geological time, heat and pressure
transform the plant matter into coal.
● Formation of Oil and Gas: Formed primarily from marine organisms and plants
that died and settled on the seabed. They were then covered by layers of
sediment. Over millions of years, heat and pressure converted this organic
matter into crude oil and natural gas, often trapped in porous rock layers
beneath impermeable rock.
2.2 Energy resources and the generation of electricity
● Non-renewable Energy Resources: Resources that are used faster than they
can be replenished.
Fossil Fuels (Coal, Oil, Gas):
● Electricity Generation: Burned in power stations to heat water, produce
high-pressure steam, which then turns turbines connected to generators.
● Advantages: Plentiful supply in many regions, well-established technology,
creates jobs.
● Disadvantages: Release carbon dioxide (CO2) and other toxic gases (e.g.,
sulfur dioxide) when burned, contributing to climate change and acid rain.
Extraction causes environmental damage (e.g., land degradation, oil spills).
Prices are subject to market fluctuations.
Nuclear Power (Uranium):
● Electricity Generation: Uranium atoms undergo nuclear fission, releasing heat
that boils water to produce steam, turning turbines.
● Advantages: Produces large amounts of energy from a small amount of fuel,
does not produce CO2 during operation.
● Disadvantages: Produces radioactive waste that remains dangerous for
centuries, risk of radiation leakage from accidents, high setup costs.
● Renewable Energy Resources: Resources that are replenished naturally or are
essentially inexhaustible.
Biofuels (Bioethanol, Biogas, Wood):
● Electricity Generation: Organic matter (e.g., corn, sugar cane, animal waste,
wood) is fermented or decomposed to produce bioethanol or biogas, which
can be burned to generate electricity. Wood can also be burned directly.
● Advantages: Renewable, can use waste products, can produce less CO2 than
fossil fuels if sustainably managed.
