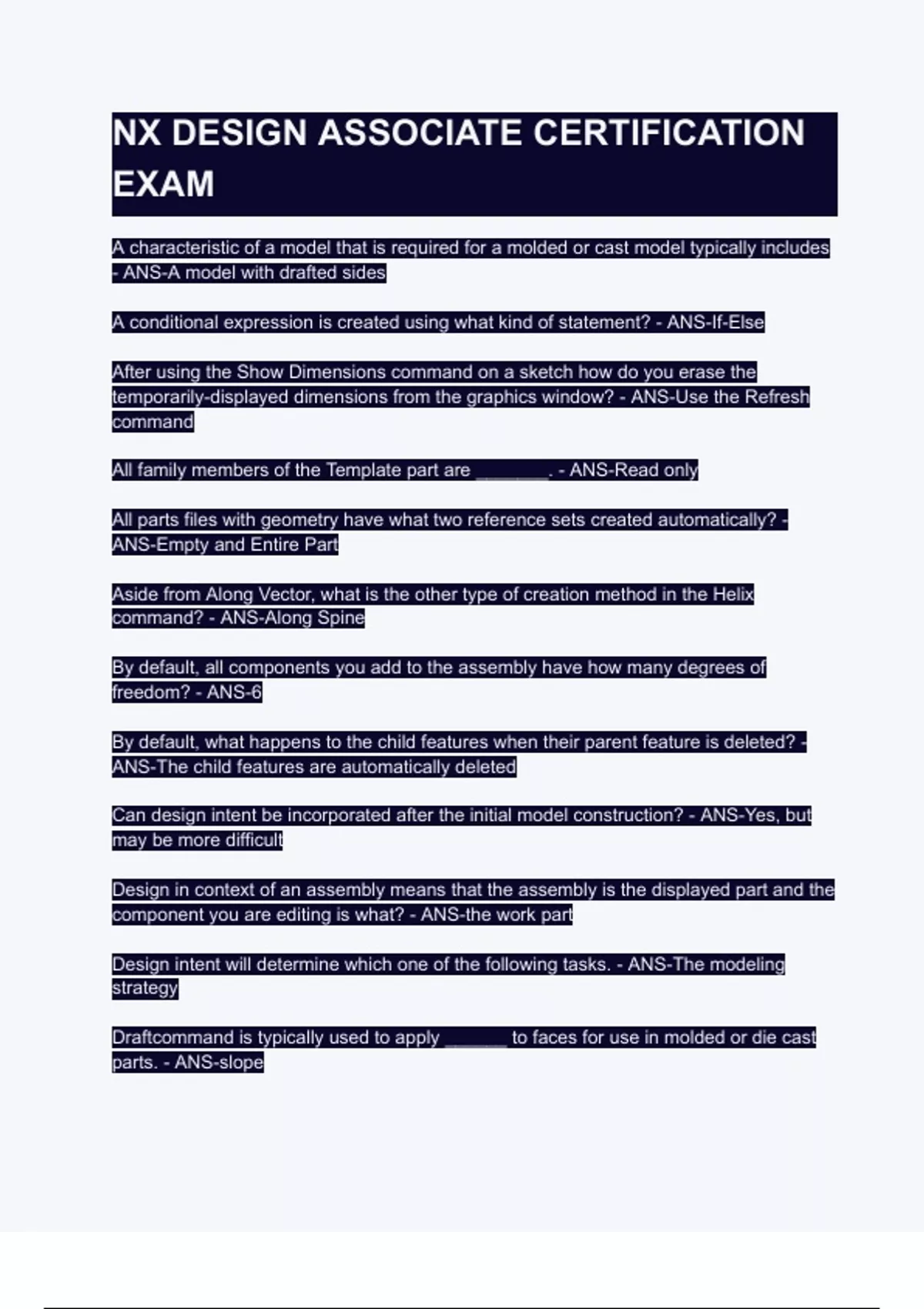

NX DESIGN ASSOCIATE CERTIFICATION
EXAM
A characteristic of a model that is required for a molded or cast model typically includes
- ANS-A model with drafted sides
A conditional expression is created using what kind of statement? - ANS-If-Else
After using the Show Dimensions command on a sketch how do you erase the
temporarily-displayed dimensions from the graphics window? - ANS-Use the Refresh
command
All family members of the Template part are _______. - ANS-Read only
All parts files with geometry have what two reference sets created automatically? -
ANS-Empty and Entire Part
Aside from Along Vector, what is the other type of creation method in the Helix
command? - ANS-Along Spine
By default, all components you add to the assembly have how many degrees of
freedom? - ANS-6
By default, what happens to the child features when their parent feature is deleted? -
ANS-The child features are automatically deleted
Can design intent be incorporated after the initial model construction? - ANS-Yes, but
may be more difficult
Design in context of an assembly means that the assembly is the displayed part and the
component you are editing is what? - ANS-the work part
Design intent will determine which one of the following tasks. - ANS-The modeling
strategy
Draftcommand is typically used to apply ______ to faces for use in molded or die cast
parts. - ANS-slope
, How can you create a note with a leader? - ANS-Click and drag while placing the note
How can you easily edit a feature of a model? - ANS-Double click the feature in the part
navigator
How can you investigate the design intent of a sketch? - ANS-Vary a dimension to see
how the sketch changes
How can you tell which reference set is displayed? - ANS-Look for the reference set
name in the Assembly Navigator
How do you create a projected view on your drawing? - ANS-Right-click a view border
and choose Add Projected View
How do you create an assembly using the Bottom-Up method? - ANS-Create the parts
separately and then add them to the assembly
How do you create offset curves in both directions at the same time? - ANS-Toggle on
Symmetric Offset
How do you reposition a drawing view? - ANS-In the drawing area, click and drag the
view border to the desired location
If a reference set is deleted from a component part that is used in multiple assemblies,
what reference set will be used in its place the next time one of the assemblies is
opened? - ANS-The next available reference set defined in the Assembly Load Options
If you load a component using Lightweight Representation in which cases should you
switch to Exact Representation? - ANS-You want to display an accurate representation
of the assembly
If you need to make a duplicate solid body to modify, what command would you use? -
ANS-Extract Geometry - Body
If you use the Shell command on a solid body and do not select at least one face to
pierce which of the following will the result be? - ANS-A hollow solid body
if(Length==5)(150)else if(Length==4)(195)else(25) is an example of what type of
expression. - ANS-conditional
