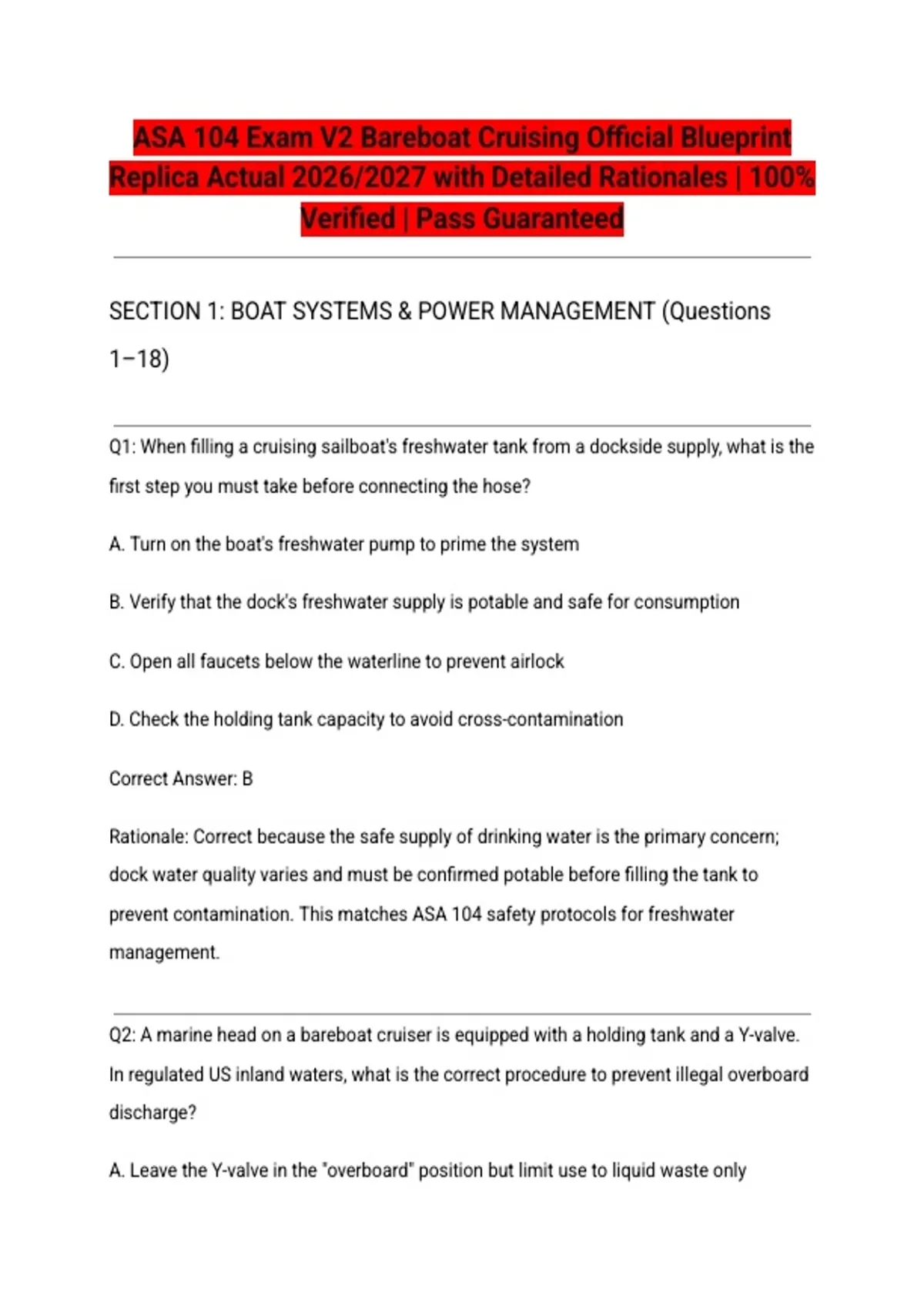

ASA 104 Exam V2 Bareboat Cruising Official Blueprint
Replica Actual 2026/2027 with Detailed Rationales | 100%
Verified | Pass Guaranteed
SECTION 1: BOAT SYSTEMS & POWER MANAGEMENT (Questions
1–18)
Q1: When filling a cruising sailboat's freshwater tank from a dockside supply, what is the
first step you must take before connecting the hose?
A. Turn on the boat's freshwater pump to prime the system
B. Verify that the dock's freshwater supply is potable and safe for consumption
C. Open all faucets below the waterline to prevent airlock
D. Check the holding tank capacity to avoid cross-contamination
Correct Answer: B
Rationale: Correct because the safe supply of drinking water is the primary concern;
dock water quality varies and must be confirmed potable before filling the tank to
prevent contamination. This matches ASA 104 safety protocols for freshwater
management.
Q2: A marine head on a bareboat cruiser is equipped with a holding tank and a Y-valve.
In regulated US inland waters, what is the correct procedure to prevent illegal overboard
discharge?
A. Leave the Y-valve in the "overboard" position but limit use to liquid waste only
,B. Secure the Y-valve in the "holding tank" position and lock or wire-seal the handle
C. Pump out the holding tank daily and leave the Y-valve open to the sea
D. Use enzyme treatments in the holding tank and discharge within 3 miles of shore
Correct Answer: B
Rationale: Correct because US regulations require the Y-valve to be secured in the
holding tank position in inland waters to prevent any discharge; locking or sealing the
handle ensures compliance and prevents accidental operation.
Q3: When done using a marine propane stove, what is the correct shutdown sequence?
A. Turn off the burner knobs first, then turn off the solenoid switch at the panel
B. Turn off the solenoid switch first to stop gas flow, allowing remaining gas to burn off,
then turn off the burner
C. Close the propane tank valve directly, then extinguish the burner flame
D. Turn off the burner and immediately ventilate the cabin with the blower
Correct Answer: B
Rationale: Correct because turning off the solenoid first stops the gas supply while
allowing residual gas in the line to burn off completely at the burner; only after the flame
extinguishes should the burner knob be turned off, preventing unburned propane
accumulation.
Q4: What is the primary function of a solenoid switch in a marine propane system?
A. To regulate the pressure of propane flowing to the stove
,B. To serve as an electrically operated shutoff valve controlling gas flow from the tank
to the appliance
C. To ignite the propane burner automatically when the knob is turned
D. To detect propane leaks and sound an alarm
Correct Answer: B
Rationale: Correct because the solenoid switch is an electrically operated valve that
opens to allow propane flow when activated and closes to shut off gas supply when
turned off at the control panel, providing a remote safety shutoff.
Q5: In a boat's DC electrical system, what is the purpose of an inverter?
A. To recharge the house batteries while the engine is running at 1500+ RPM
B. To convert DC battery power into AC electricity for household appliances
C. To step down AC shore power to 12V DC for battery charging
D. To distribute DC power from the alternator to multiple battery banks
Correct Answer: B
Rationale: Correct because an inverter converts the 12V DC power stored in house
batteries into 120V AC power, enabling operation of household appliances such as
microwaves, coffee makers, and chargers when shore power is unavailable.
Q6: An alternator on a marine diesel engine is designed to produce adequate charging
output when the engine is running at what minimum RPM?
A. 500 RPM
, B. 800 RPM
C. 1500 RPM or higher
D. 3000 RPM or higher
Correct Answer: C
Rationale: Correct because alternators typically require engine speeds of approximately
1500 RPM or greater to generate sufficient output for meaningful battery charging;
below this threshold, charging output is minimal or negligible.
Q7: What is the primary difference between an automatic bilge pump and a manual
bilge pump on a cruising sailboat?
A. The automatic pump is powered by shore power, while the manual pump is
hand-operated
B. The automatic pump uses a float switch to activate when water is detected, while the
manual pump requires physical operation by crew
C. The automatic pump is located in the engine compartment, while the manual pump is
in the cockpit
D. The automatic pump handles oil-contaminated water, while the manual pump
handles clean bilge water
Correct Answer: B
Rationale: Correct because automatic bilge pumps are battery-powered and activated
by a float switch that senses rising water levels, whereas manual bilge pumps must be
physically operated by hand and serve as critical backup when electrical power is lost.
