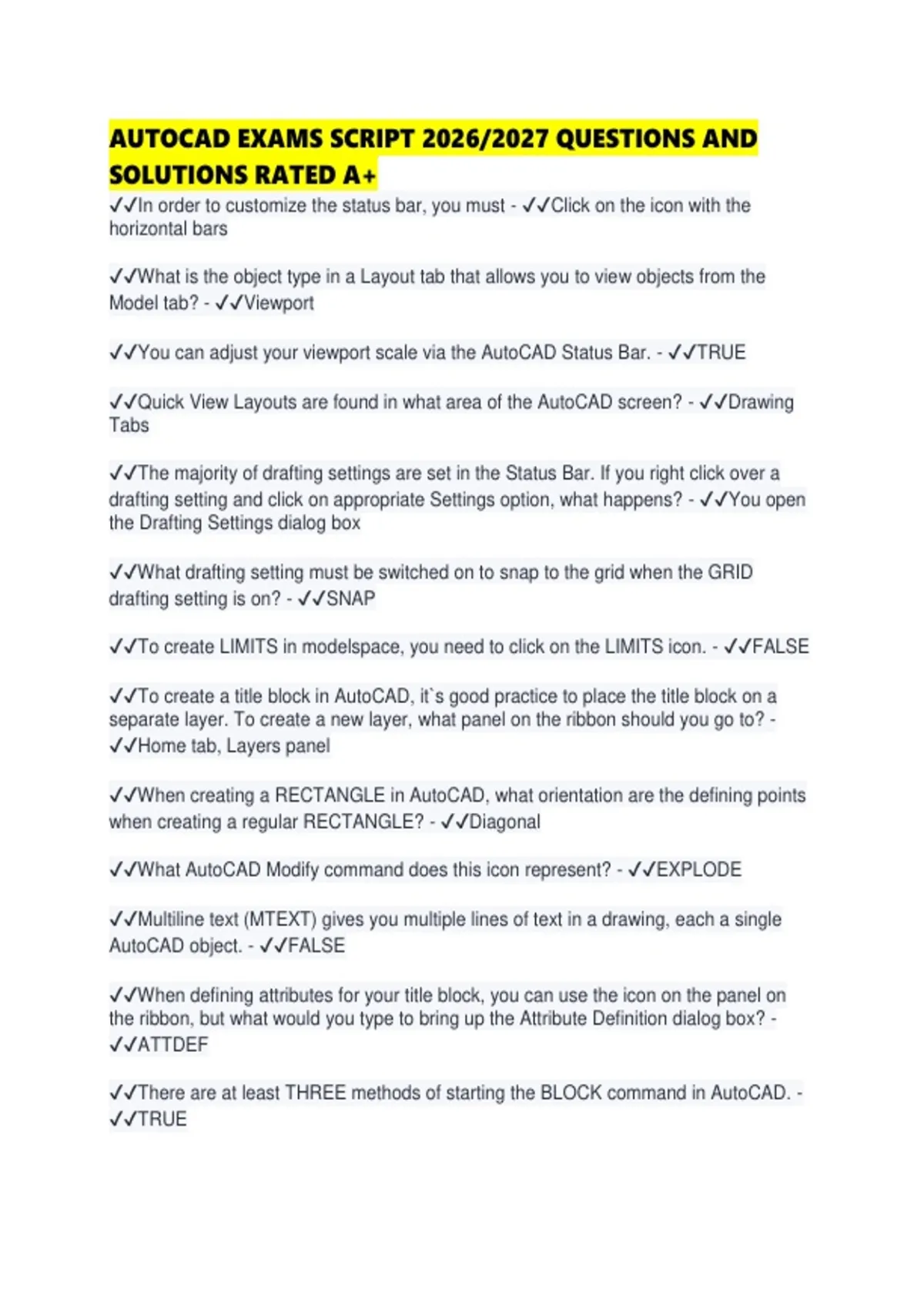

AUTOCAD EXAMS SCRIPT 2026/2027 QUESTIONS AND
SOLUTIONS RATED A+
✔✔In order to customize the status bar, you must - ✔✔Click on the icon with the
horizontal bars

✔✔What is the object type in a Layout tab that allows you to view objects from the
Model tab? - ✔✔Viewport

✔✔You can adjust your viewport scale via the AutoCAD Status Bar. - ✔✔TRUE

✔✔Quick View Layouts are found in what area of the AutoCAD screen? - ✔✔Drawing
Tabs

✔✔The majority of drafting settings are set in the Status Bar. If you right click over a
drafting setting and click on appropriate Settings option, what happens? - ✔✔You open
the Drafting Settings dialog box

✔✔What drafting setting must be switched on to snap to the grid when the GRID
drafting setting is on? - ✔✔SNAP

✔✔To create LIMITS in modelspace, you need to click on the LIMITS icon. - ✔✔FALSE

✔✔To create a title block in AutoCAD, it`s good practice to place the title block on a
separate layer. To create a new layer, what panel on the ribbon should you go to? -
✔✔Home tab, Layers panel

✔✔When creating a RECTANGLE in AutoCAD, what orientation are the defining points
when creating a regular RECTANGLE? - ✔✔Diagonal

✔✔What AutoCAD Modify command does this icon represent? - ✔✔EXPLODE

✔✔Multiline text (MTEXT) gives you multiple lines of text in a drawing, each a single
AutoCAD object. - ✔✔FALSE

✔✔When defining attributes for your title block, you can use the icon on the panel on
the ribbon, but what would you type to bring up the Attribute Definition dialog box? -
✔✔ATTDEF

✔✔There are at least THREE methods of starting the BLOCK command in AutoCAD. -
✔✔TRUE
