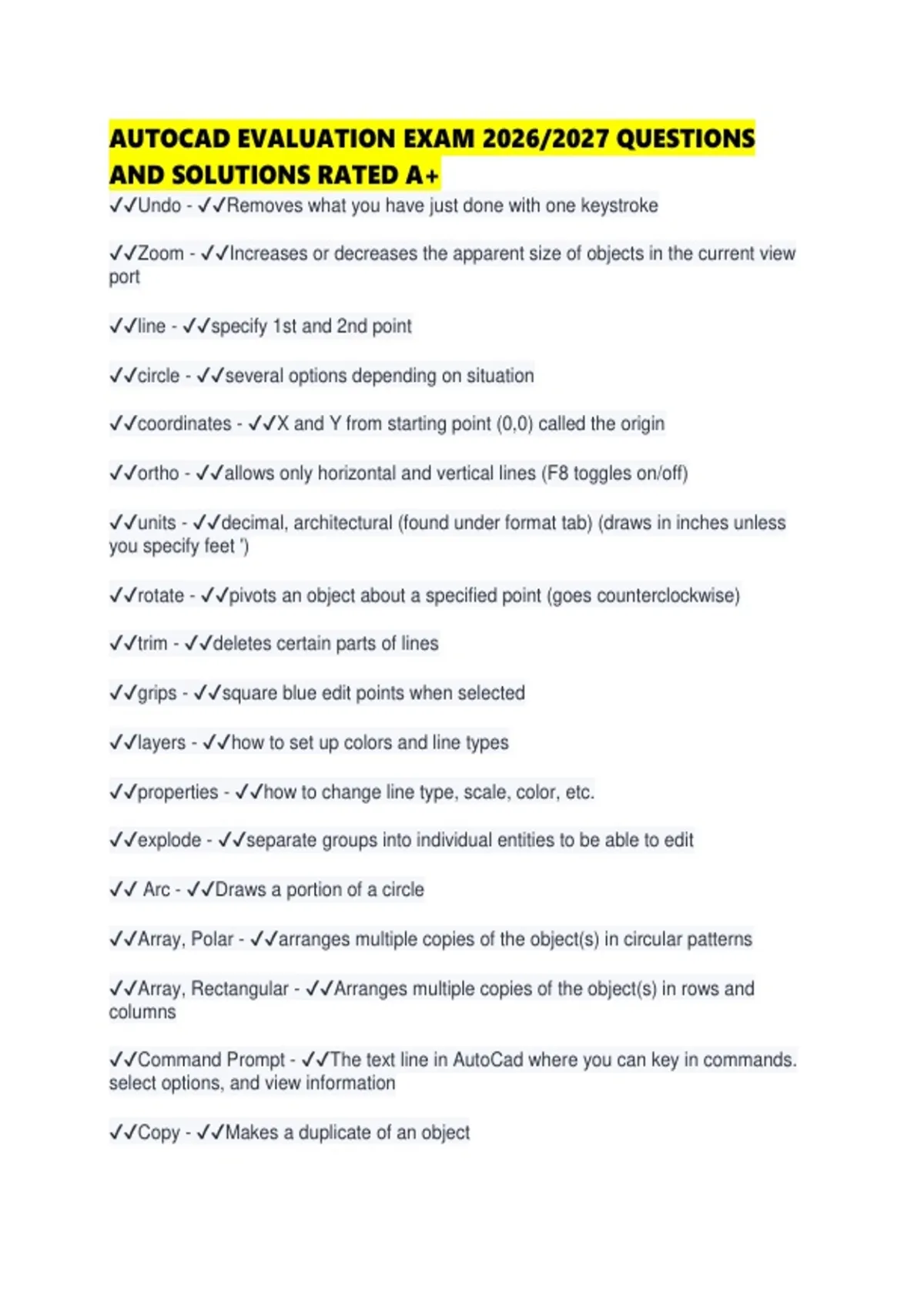

AUTOCAD EVALUATION EXAM 2026/2027 QUESTIONS
AND SOLUTIONS RATED A+
✔✔Undo - ✔✔Removes what you have just done with one keystroke
✔✔Zoom - ✔✔Increases or decreases the apparent size of objects in the current view
port
✔✔line - ✔✔specify 1st and 2nd point
✔✔circle - ✔✔several options depending on situation
✔✔coordinates - ✔✔X and Y from starting point (0,0) called the origin
✔✔ortho - ✔✔allows only horizontal and vertical lines (F8 toggles on/off)
✔✔units - ✔✔decimal, architectural (found under format tab) (draws in inches unless
you specify feet ')
✔✔rotate - ✔✔pivots an object about a specified point (goes counterclockwise)
✔✔trim - ✔✔deletes certain parts of lines
✔✔grips - ✔✔square blue edit points when selected
✔✔layers - ✔✔how to set up colors and line types
✔✔properties - ✔✔how to change line type, scale, color, etc.
✔✔explode - ✔✔separate groups into individual entities to be able to edit
✔✔ Arc - ✔✔Draws a portion of a circle
✔✔Array, Polar - ✔✔arranges multiple copies of the object(s) in circular patterns
✔✔Array, Rectangular - ✔✔Arranges multiple copies of the object(s) in rows and
columns
✔✔Command Prompt - ✔✔The text line in AutoCad where you can key in commands.
select options, and view information
✔✔Copy - ✔✔Makes a duplicate of an object
