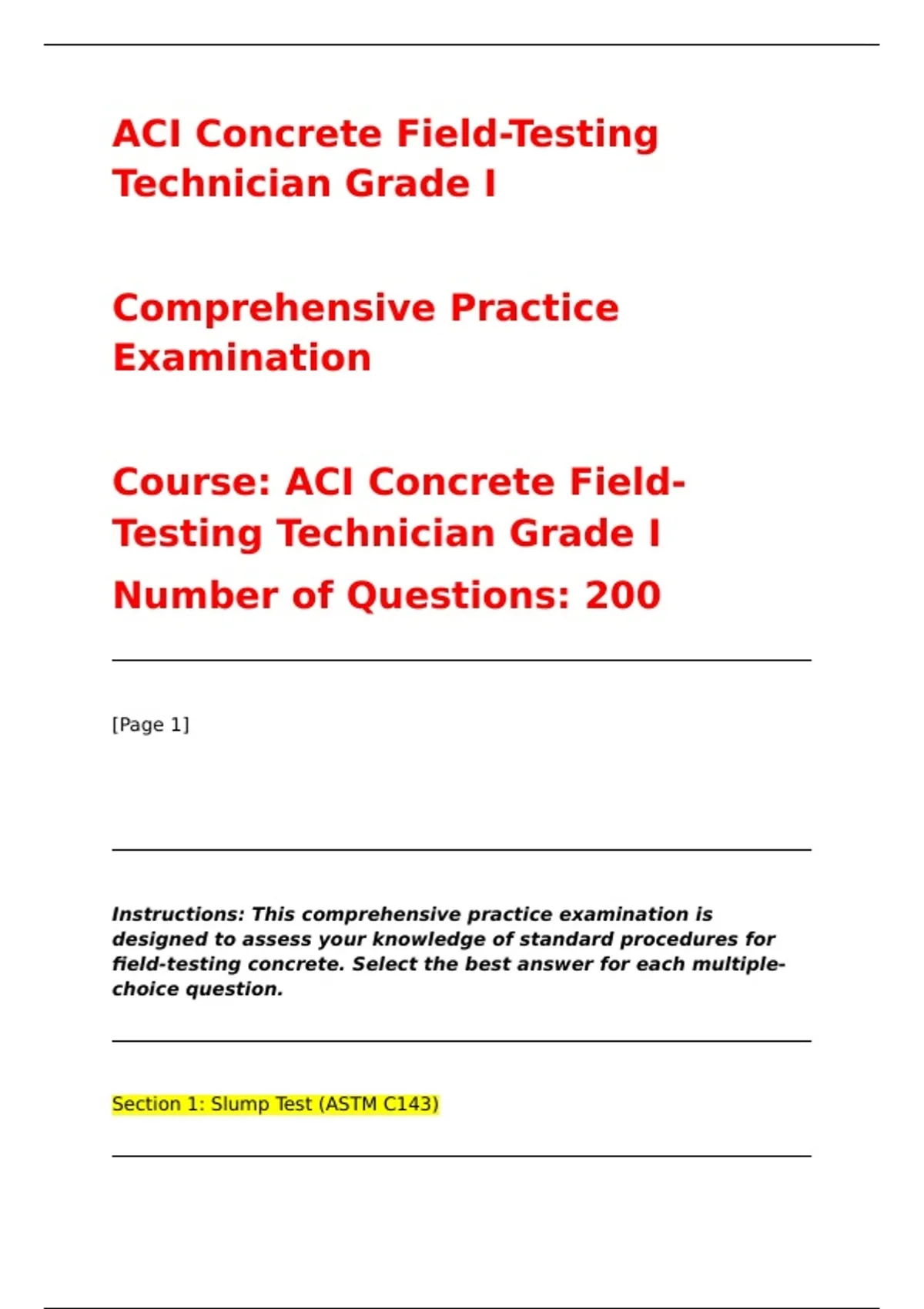

ACI Concrete Field-Testing Technician Grade I Comprehensive Practice Examination Course: ACI Concrete Field-Testing Technician Grade I Number of Questions: 200

ACI Concrete Field-Testing Technician Grade I Comprehensive Practice Examination Course: ACI Concrete Field-Testing Technician Grade I Number of Questions: 200 [Page 1] Instructions: This comprehensive practice examination is designed to assess your knowledge of standard procedures for field-testing concrete. Select the best answer for each multiple-choice question. Section 1: Slump Test (ASTM C143) Question 1 – Slump Test: Equipment What is the required diameter of the base of the slump cone? A) 4 in. (100 mm) B) 6 in. (150 mm) C) 8 in. (200 mm) D) 10 in. (250 mm) Correct Answer: C Rationale: The slump cone has a base diameter of 8 inches (200 mm) and a top diameter of 4 inches (100 mm), which is essential for maintaining standard proportions during the test. Question 2 – Slump Test: Rodding How many strokes of the tamping rod are required for each of the three layers when filling the slump cone? A) 15 strokes per layer B) 20 strokes per layer C) 25 strokes per layer D) 30 strokes per layer Correct Answer: C Rationale: The standard requires 25 strokes of the rod for each of the three layers to ensure proper consolidation of the concrete sample. Question 3 – Slump Test: Filling What is the proper depth of each layer when filling the slump cone? A) One-third of the cone volume by visual estimation B) Equal volumes, approximately one-third of the cone height C) Approximately 2 inches for each layer D) Fill to the top of the cone, then rod Correct Answer: B Rationale: Each layer should be approximately one-third of the cone height to ensure uniform compaction and representative testing throughout the sample. Question 4 – Slump Test: Lifting What is the maximum time allowed for lifting the slump cone from the concrete? A) 2 to 5 seconds B) 5 to 10 seconds C) 10 to 15 seconds D) 15 to 20 seconds Correct Answer: B Rationale: The cone must be lifted vertically in 5 to 10 seconds to minimize disturbance to the concrete and ensure accurate slump measurement. Question 5 – Slump Test: Measurement How is the slump measured after the cone is removed? A) Measure the vertical distance from the top of the cone to the displaced original center of the top surface B) Measure the horizontal spread of the concrete C) Measure the height of the concrete at its highest point D) Measure the distance from the base to the lowest point of the concrete Correct Answer: A Rationale: The slump is measured as the vertical drop of the concrete from the original height of the cone, specifically at the center of the top surface. Question 6 – Slump Test: Time Limit What is the maximum allowable time from the start of sampling to completion of the slump test? A) 2.5 minutes B) 5 minutes C) 10 minutes D) 15 minutes Correct Answer: A Rationale: The slump test must be completed within 2.5 minutes of obtaining the sample to prevent changes in slump due to setting or evaporation. Question 7 – Slump Test: Moisture Condition What should be done to the slump cone and base plate before use? A) Oil them thoroughly B) Dampen them with a wet cloth C) Leave them completely dry D) Coat them with a thin layer of grease Correct Answer: B Rationale: The cone and base plate should be moistened to prevent the concrete from sticking to the surfaces, which could affect the slump measurement. Question 8 – Slump Test: Rod Penetration When rodding the second layer of concrete in the slump cone, how far should the rod penetrate the previous layer? A) 0.5 in. (13 mm) B) 1 in. (25 mm) C) 1.5 in. (38 mm) D) 2 in. (50 mm) Correct Answer: B Rationale: The rod should penetrate approximately 1 inch (25 mm) into the previous layer to ensure proper bonding and consolidation between layers. Question 9 – Slump Test: Observation What type of slump indicates a cohesive and workable concrete mix? A) Shear slump B) Collapse slump C) True slump D) Zero slump Correct Answer: C Rationale: A true slump, where the concrete subsides evenly without shearing or collapsing, indicates a well-proportioned, cohesive mix. Question 10 – Slump Test: Shearing What does a shear slump indicate about the concrete? A) The concrete is too wet B) The concrete has excellent workability C) The concrete lacks cohesion or is not properly consolidated D) The concrete has too much air content Correct Answer: C Rationale: A shear slump, where one side of the concrete slides down, indicates a lack of cohesion in the mix or potential consolidation issues.
