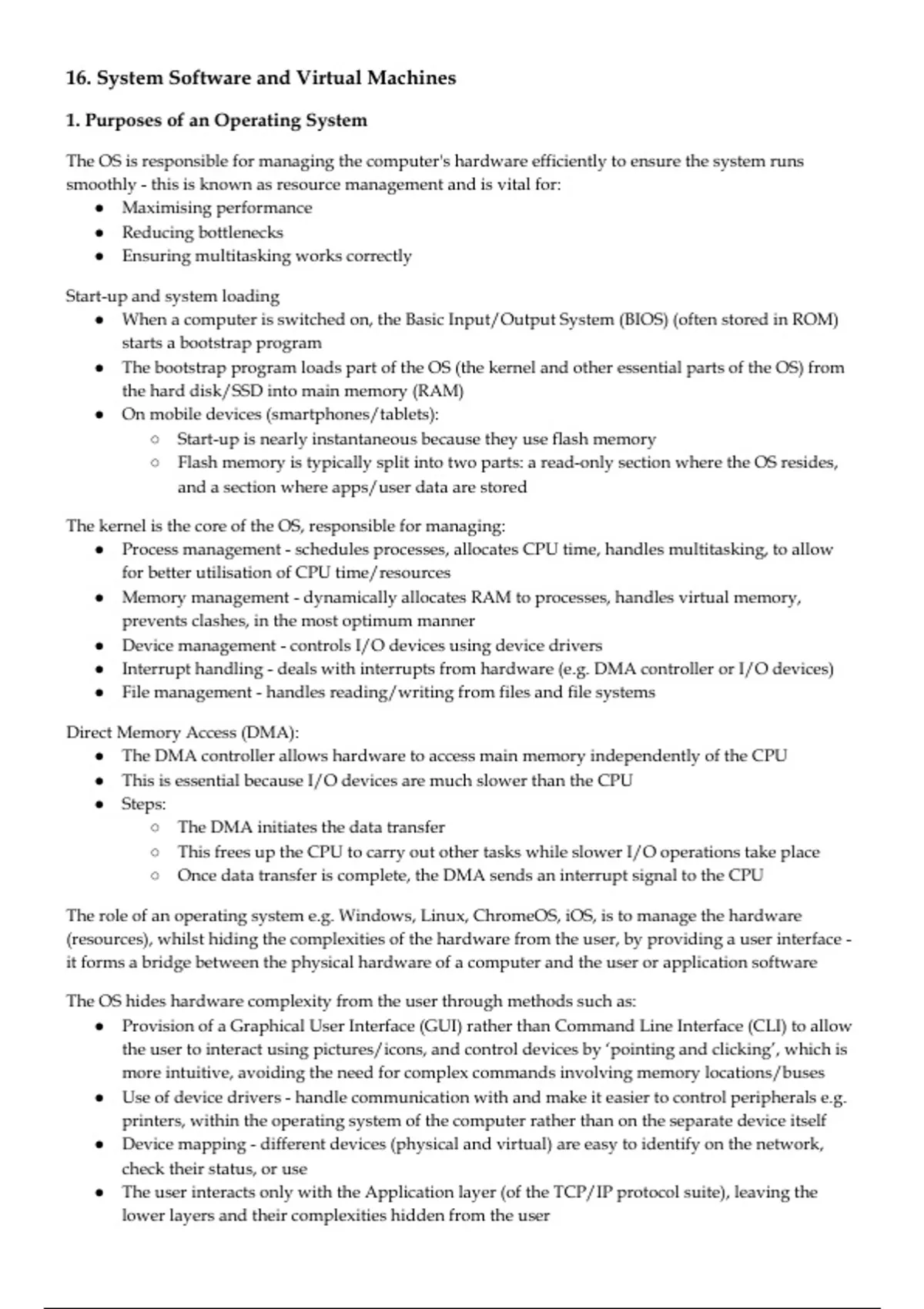

16. System Software and Virtual Machines
1. Purposes of an Operating System
he OS is responsible for managing the computer's hardware efficiently to ensure the system runs
T
smoothly - this is known as resource management and is vital for:
● Maximising performance
● Reducing bottlenecks
● Ensuring multitasking works correctly
Start-up and system loading
● When a computer is switched on, the Basic Input/Output System (BIOS) (often stored in ROM)
starts a bootstrap program
● The bootstrap program loads part of the OS (the kernel and other essential parts of the OS) from
the hard disk/SSD into main memory (RAM)
● On mobile devices (smartphones/tablets):
○ Start-up is nearly instantaneous because they use flash memory
○ Flash memory is typically split into two parts: a read-only section where the OS resides,
and a section where apps/user data are stored
The kernel is the core of the OS, responsible for managing:
● Process management - schedules processes, allocates CPU time, handles multitasking, to allow
for better utilisation of CPU time/resources
● Memory management - dynamically allocates RAM to processes, handles virtual memory,
prevents clashes, in the most optimum manner
● Device management - controls I/O devices using device drivers
● Interrupt handling - deals with interrupts from hardware (e.g. DMA controller or I/O devices)
● File management - handles reading/writing from files and file systems
Direct Memory Access (DMA):
● The DMA controller allows hardware to access main memory independently of the CPU
● This is essential because I/O devices are much slower than the CPU
● Steps:
○ The DMA initiates the data transfer
○ This frees up the CPU to carry out other tasks while slower I/O operations take place
○ Once data transfer is complete, the DMA sends an interrupt signal to the CPU
he role of an operating system e.g. Windows, Linux, ChromeOS, iOS, is to manage the hardware
T
(resources), whilst hiding the complexities of the hardware from the user, by providing a user interface -
it forms a bridge between the physical hardware of a computer and the user or application software
The OS hides hardware complexity from the user through methods such as:
● Provision of a Graphical User Interface (GUI) rather than Command Line Interface (CLI) to allow
the user to interact using pictures/icons, and control devices by ‘pointing and clicking’, which is
more intuitive, avoiding the need for complex commands involving memory locations/buses
● Use of device drivers - handle communication with and make it easier to control peripherals e.g.
printers, within the operating system of the computer rather than on the separate device itself
● Device mapping - different devices (physical and virtual) are easy to identify on the network,
check their status, or use
● The user interacts only with the Application layer (of the TCP/IP protocol suite), leaving the
lower layers and their complexities hidden from the user
, Multitasking:
● Multi-tasking allows computers to carry out (seem to carry out) more than one process at a time
● The OS monitors the state of each process, using scheduling to determine which order to execute
processes in, and ensure hardware resources shared/used efficiently, without processes clashing
● This benefits process management by allowing more tasks to complete than would be the case if
they had to run one task after another (without multitasking)
Process:
● A process is a program in execution
● Each running application is treated as a separate process by the OS
● A process does not always run continuously, and can change state
Process Control Block (PCB):
● Data structure created in memory that holds all the data needed for a process to run
● The PCB will store:
○ current process state (ready, running or blocked)
○ process privileges (such as which resources it is allowed to access)
○ register values (PC, MAR, MDR and ACC)
○ process priority and any scheduling information
○ the amount of CPU time the process will need to complete (burst time)
○ a process ID which allows it to be uniquely identified
Process states:
● Running - CPU time has been allocated and the process is currently being executed
● Ready - the process is ready to execute (it could otherwise run), but is waiting (in the ready
queue) for a slice of CPU time by a higher priority process
● Blocked - process waiting for an external event/resource (usually I/O operation) to be completed
Process scheduling routines:
● Process scheduling is required to ensure that all processes are executed in a timely manner
● Enables multitasking/multiprogramming/multiprocessing
● Minimises CPU idle time
● Ensures fair access to resources for processes - no process is starved of resources
● Ensures jobs/processes are completed in order of priority
urnaround time = Completion time - arrival time
T
Waiting Time = Turnaround time - burst time
First come first served scheduling (FCFS):
● Adds processes to the back of the ready queue as they arrive
● Executes processes in the order they arrive in
● Non-pre-emptive - once resources have been allocated/the process has begun executing, it will
continue until complete or put in a waiting state once
● Benefits:
○ Ensures starvation of any processes does not occur
○ Simple and easy to understand (no need to know burst times of processes in advance)
○ Fair in the sense that processes are served in the order they arrive
● Drawbacks:
○ This can lead to poor performance if a long process arrives before shorter processes,
which then get stuck behind the long process for ages
○ High-priority tasks have to wait for their turn in the queue
