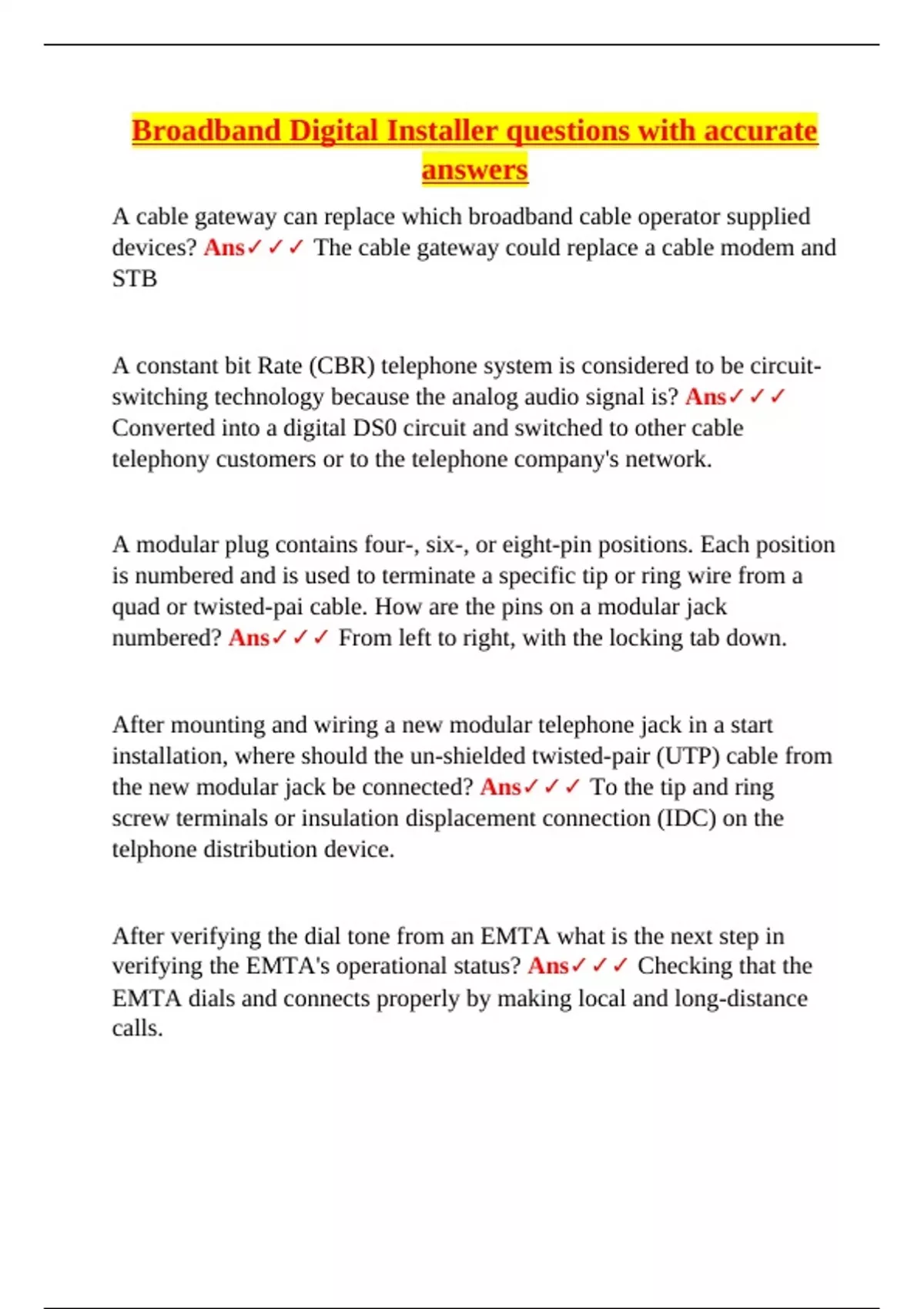

Broadband Digital Installer questions with accurate
answers
A cable gateway can replace which broadband cable operator supplied
devices? Ans✓✓✓ The cable gateway could replace a cable modem and
STB
A constant bit Rate (CBR) telephone system is considered to be circuit-
switching technology because the analog audio signal is? Ans✓✓✓
Converted into a digital DS0 circuit and switched to other cable
telephony customers or to the telephone company's network.
A modular plug contains four-, six-, or eight-pin positions. Each position
is numbered and is used to terminate a specific tip or ring wire from a
quad or twisted-pai cable. How are the pins on a modular jack
numbered? Ans✓✓✓ From left to right, with the locking tab down.
After mounting and wiring a new modular telephone jack in a start
installation, where should the un-shielded twisted-pair (UTP) cable from
the new modular jack be connected? Ans✓✓✓ To the tip and ring
screw terminals or insulation displacement connection (IDC) on the
telphone distribution device.
After verifying the dial tone from an EMTA what is the next step in
verifying the EMTA's operational status? Ans✓✓✓ Checking that the
EMTA dials and connects properly by making local and long-distance
calls.
, All telephone cables are labeled with either a level or category (CAT)
number that designates the cable's performance criteria. How do CAT-1,
CAT-2, and CAR-3 cable compare to CAT-5e and higher cables?
Ans✓✓✓ CAT-1 T through CAT-3 are used only for voice
applications; CAT-5e and higher are used for voice and data.
For an EMTA to receive an authorization key for telephone service,
what is required of the MAC address? Ans✓✓✓ It must be assigned to
a customer account in the billing system database which updates the
CMTS.
Generally speaking, a wide area network (WAN) can be described as?
Ans✓✓✓ A network comprised of several local area networks (LAN)
and metropolitan are networks (MAN) interconnected into a single
network covering a large geographic are.
Generating a dial tone in either a traditional telephone call or
PacketCable VoIP call is similar, except? Ans✓✓✓ Equipment in the
central office (CO) for plain old telephone service (POTS) senses the
change in voltage and generates a dial tone where the embedded
multimedia terminal adapter (EMTA) senses the change and generates a
dial tone in PacketCable.
How does a DOCSIS modem receive its Internet Protocol (IP) address?
Ans✓✓✓ From a dynamic host configuration protocol (DHCP) server
that provides the CMTS with the modem's IP address, which is
forwarded to the modem during initialization.
